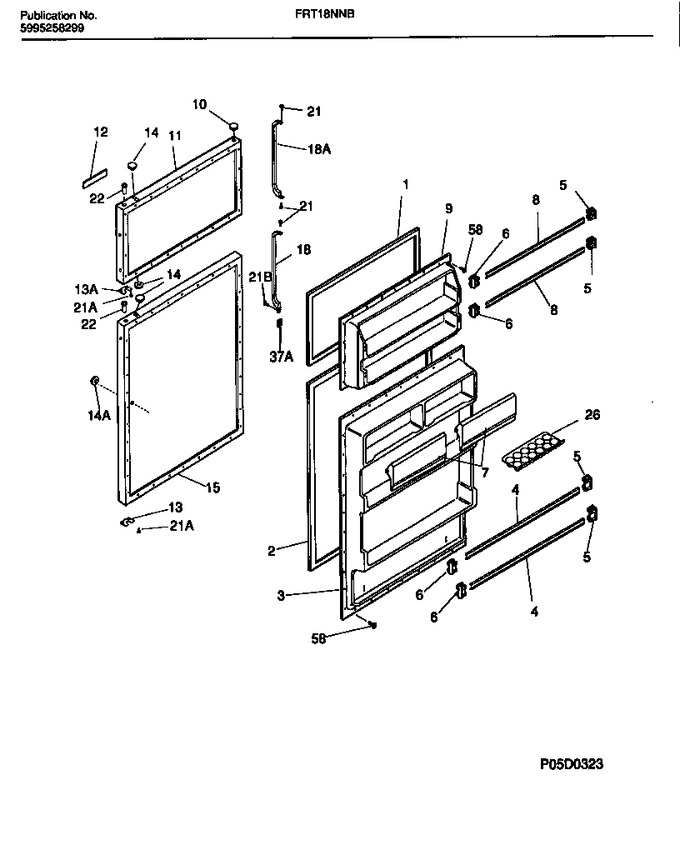

02 - Door Section


03 - Cabinet W/fan Assembly


04 - Shelves, Controls, Divider, Mullion


05 - Cooling System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303018791		Gasket-frzr Door, White, Magnetic				$ 130.56
2	5303018792		Gasket-refr Door, White, Magnetic		Appelez-nous	-
3	5303206569		Panel-inner Door, Refr		Appelez-nous	-
4	215139836		Rack-door, 25.25`` X 1.58``		Appelez-nous	-
5	5303007295		Support-door Rack, Rh				$ 32.55
6	5303007297		Support-door Rack, Lh				$ 64.58
7	5303304564		Door-dairy		Appelez-nous	-
8	215139835		Rack-door, 25.06`` X 1.58``				$ 15.28
9	5303206550		Panel-inner Door, Frzr		Appelez-nous	-
10	5308000134		Plug-button, White, Hinge Brg Hole				$ 5.62
11	5303917344		Panel-frzr Door, White, W/insulation		Appelez-nous	-
12	215008601		Nameplate Assy, White		Appelez-nous	-
13	5303212491		Door Stop, Refr Section		Appelez-nous	-
14	240494001		Plug-button, White, Handle/dr Stop   (Replaces: 5308000090)			Immediately	$ 18.20
15	5303917411		Panel-refr Door, White, W/insulation, & Cross Brace		Appelez-nous	-
18	215482115		Handle-door, 17.37``, White		Appelez-nous	-
21	5303272566		Screw-handle Mtg, Oval Head, 10-24(d) X 5/8, White, Cro		Appelez-nous	-
22	3206153		Bearing-hinge		Appelez-nous	-
26	215817806		Tray-egg				$ 13.46
58	5308002748		Screw		Appelez-nous	-
*24840	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
13A	5308000255		Door Stop				$ 42.20
14A	240494001		Plug-button,white ,refr Door Front ,   (Replaces: 215352201)			Immediately	$ 18.20
18A	215482113		Handle-door, 17.02``, White		Appelez-nous	-
21A	5308011745		Screw				$ 10.38
21B	215733200		Screw-handle Mtg, Flat Head, 8-18(ab) X 1/2		Appelez-nous	-
37A	215480205		Trim-handle, End Cap, White, Refr Door		Appelez-nous	-
