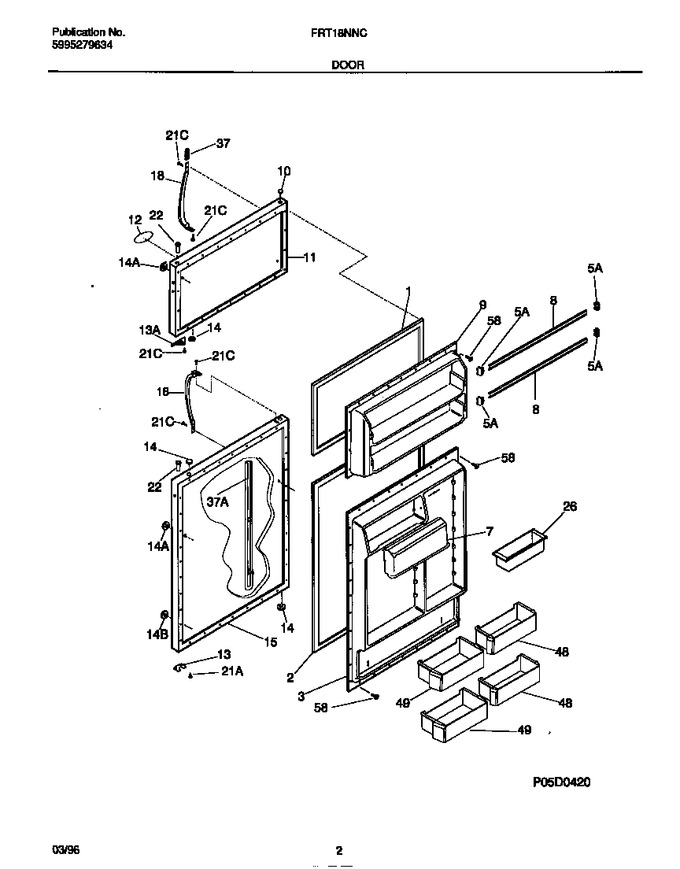

02 - Door


03 - Cabinet


04 - Shelves/controls


05 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215608906		Gasket-frzr Door, Almond, Magnetic		Appelez-nous	-
2	5303207345		Gasket-refr Door, Almond, Magnetic   (Replaces: 5303288239)			Immediately	$ 188.19
3	218360701		Panel-inner Door, Refr		Appelez-nous	-
5	218758602		Support-door Rack, Rh/lh   (Replaces: 215552601)			Immediately	$ 23.39
7	5303308341		Door-dairy,12.96`` Wide				$ 97.02
8	215516220		Rack-door, 22.27`` X 2.04``   (Replaces: 215516276)				$ 54.58
9	218360101		Panel-inner Door, Frzr		Appelez-nous	-
10	5303001308		Plug-button, Almond, Hinge Brg Hole		Appelez-nous	-
11	5303917584		Panel-frzr Door, Almond, With Insulation		Appelez-nous	-
12	218425005		Nameplate Assy, Almond		Appelez-nous	-
13	218249002		Door Stop, Almond, Frzr Section				$ 47.88
13	5308000255		Door Stop				$ 42.20
14	5308000181		Plug-button, Almond, Handle/dr Stop		Appelez-nous	-
14	218110902		Plug-button, Almond, Refr Door Front		Appelez-nous	-
14	218074002		Plug-button, Almond, Refr Door Front		Appelez-nous	-
15	5303917588		Panel-refr Door, Almond, W/insul & Brace		Appelez-nous	-
18	218363402		Handle-door, Almond		Appelez-nous	-
21	218251900		Screw, No. 8 Oval Head, 10-32 (ca) X 5/8, Cross Recessed				$ 10.55
21	218252201		Screw, No. 8 Truss Head, 10-32ca X 0.500   (Replaces: 218252200)			Immediately	$ 14.18
22	3206153		Bearing-hinge		Appelez-nous	-
26	3204522		Container-egg				$ 98.33
37	215867071		Trim-handle, 29.84``, Almond, W/band & Locks		Appelez-nous	-
37	215870620		Trim-handle, 2.47``, Almond, W/chrome Band		Appelez-nous	-
48	218592310		Bin-door, With Trim				$ 127.30
49	215441502		Bin-door, Gallon, With Trim   (Replaces: 218592306)				$ 176.87
58	216858001		Screw, Truss Head, 8-15a X 0.500   (Replaces: 218699800)			Immediately	$ 10.85
*39960	215940700		Lock-handle Trim, Stick-on		Appelez-nous	-
*39961	215782300		Lock-handle Trim,snap-in				$ 34.49
*39962	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
