SELECT A DIAGRAM

01 - Doors


02 - Freezer Compartment


03 - Fresh Food Compartment


04 - Unit Compartment & System

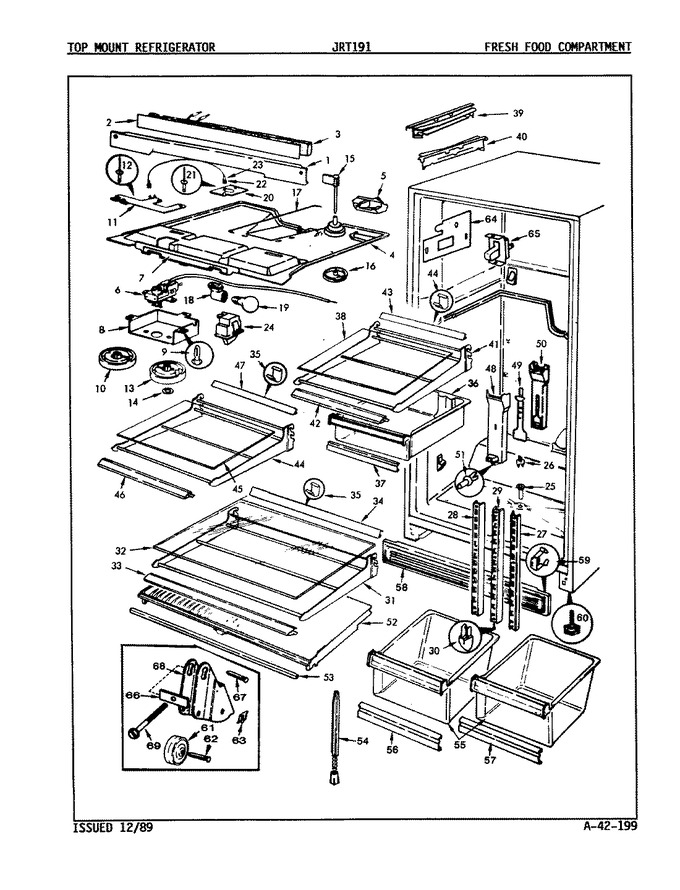

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	65797-2-AM		Divider, Mullion (alm)	-	Appelez-nous	-
1	9986-117		Screw	-	Appelez-nous	-
1	65797-2-WW		Divider, Mullion (wht)	-	Appelez-nous	-
2	60105-8		Heater Wire	-	Appelez-nous	-
3	60140-2		Insulation	-	Appelez-nous	-
3	60560-1		Wire Harness	-	Appelez-nous	-
4	60085-54		Top, F.f. Compartment	-	Appelez-nous	-
5	60120-2		Deflector	-	Appelez-nous	-
6	406013-1		Screw	-	Appelez-nous	-
6	WP68601-6		Control, Temperature   (Replaces: 68119-3)	-		Immediately	$ 233.80
7	60571-70		Insert, Control Escutcheon	-	Appelez-nous	-
8	60083-1		Cover, Temperature Control	-	Appelez-nous	-
8	405012-1		Screw	-	Appelez-nous	-
9	28013-2		Rivet, Air Tunnel	-	Appelez-nous	-
10	68520-7		Knob,temperature Control	-	Appelez-nous	-
11	60147-1		Bracket, Control	-	Appelez-nous	-
12	WP210720		Rivet   (Replaces: 26397-2)	-			$ 12.14
13	68520-8		Knob, Frzr Control Air Baffle	-	Appelez-nous	-
14	420092-900		Washer, Spring	-	Appelez-nous	-
15	66609-1		Damper	-	Appelez-nous	-
16	60082-3		Crank, Frzr Control	-	Appelez-nous	-
17	60078-3		Rod	-	Appelez-nous	-
18	60577-1		Socket, Light	-	Appelez-nous	-
19	40A15		Bulb, Light (40 Watt)   (Replaces: 31956)	-		Immediately	$ 1.98
20	60147-2		Bracket, Light Socket	-	Appelez-nous	-
21	WP210720		Rivet   (Replaces: 26397-2)	-			$ 12.14
22	29675-28		Ground Wire	-	Appelez-nous	-
23	29675-22		Ground Wire	-	Appelez-nous	-
24	W11384469		Switch, Light   (Replaces: 55732-1)	-		Immediately	$ 33.51
24	54653-28		Cord, Switch/light	-	Appelez-nous	-
25	54531-8		Grommet	-	Appelez-nous	-
26	65039-1		Cap, Drain Tube	-	Appelez-nous	-
27	60096-8		Rail, Shelf Support (rt)	-	Appelez-nous	-
28	60096-7		Rail, Shelf Support (lt)	-	Appelez-nous	-
29	400037-28		Screw	-	Appelez-nous	-
29	60096-9		Rail, Shelf Support (center)	-	Appelez-nous	-
30	60340-1		End Cap, Center Rail	-	Appelez-nous	-
31	60570-29		Frame, Shelf	-	Appelez-nous	-
32	68405-8		Glass, Full	-	Appelez-nous	-
33	60524-28		Trim,shelf (full Front)	-	Appelez-nous	-
34	65276-21		Trim, Shelf (full Rear)	-	Appelez-nous	-
35	66333-1		Clip, Shelf Trim	-	Appelez-nous	-
36	66637-31		Pan	-	Appelez-nous	-
37	60132-96		Handle, Meat Pan	-	Appelez-nous	-
38	68405-5		Glass	-	Appelez-nous	-
39	66813-1		Rail, Meat Pan (lt)	-	Appelez-nous	-
40	66814-1		Rail, Meat Pan (rt)	-	Appelez-nous	-
41	60570-15		Frame, Shelf	-	Appelez-nous	-
42	60524-6		Trim, Meat Shelf (front)	-	Appelez-nous	-
43	65276-4		Trim, Meat Shelf (rear)	-	Appelez-nous	-
44	60570-15		Frame, Shelf	-	Appelez-nous	-
45	68405-14		Glass, Split	-	Appelez-nous	-
46	60524-6		Trim, Meat Shelf (front)	-	Appelez-nous	-
47	65276-4		Trim, Meat Shelf (rear)	-	Appelez-nous	-
48	60094-22		Tunnel, Air (meat)	-	Appelez-nous	-
49	60093-2		Damper, Air Tunnel	-	Appelez-nous	-
50	60092-1		Foam Insulator, Air Tunnel	-	Appelez-nous	-
51	28013-2		Rivet, Air Tunnel	-	Appelez-nous	-
52	66502-7		Shelf, Crisper	-	Appelez-nous	-
52	60148-5		Seal, Crisper Shelf	-	Appelez-nous	-
53	60454-11		Trim, Crisper Shelf	-	Appelez-nous	-
54	12001957		Support, Crisper Shelf   (Replaces: 66105-4)	-			$ 3.35
55	68222-427		Pan, Crisper	-	Appelez-nous	-
56	60132-97		Handle, Crisper Pan	-	Appelez-nous	-
57	60132-97		Handle, Crisper Pan	-	Appelez-nous	-
58	60237-38		Kickplate	-	Appelez-nous	-
59	60100-1		Clip, Kickplate	-			$ 5.85
60	W11117769		Leg, Leveling   (Replaces: 6012-8)	-		Immediately	$ 16.61
61	29834-2		Wheel	-	Appelez-nous	-
62	29835-2		Pin, Wheel	-	Appelez-nous	-
63	60216-1		Clip	-	Appelez-nous	-
63	29675-32		Ground Wire	-	Appelez-nous	-
64	60583-1		Bracket, Switch	-	Appelez-nous	-
65	402013-1		Screw	-	Appelez-nous	-
65	60585-1		Switch, Mullion Heater	-	Appelez-nous	-
66	59101-1		Tapping Plate, Wheel	-	Appelez-nous	-
67	64965-1		Pin, Wheel	-	Appelez-nous	-
68	67530-1		Bracket, Wheel	-	Appelez-nous	-
69	400029-1		Screw Rack	-	Appelez-nous	-
69	406083-1		Screw, Wheel Adjustment	-	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
