SELECT A DIAGRAM

01 - Freezer Compartment


02 - Freezer Door


03 - Fresh Food Compartment

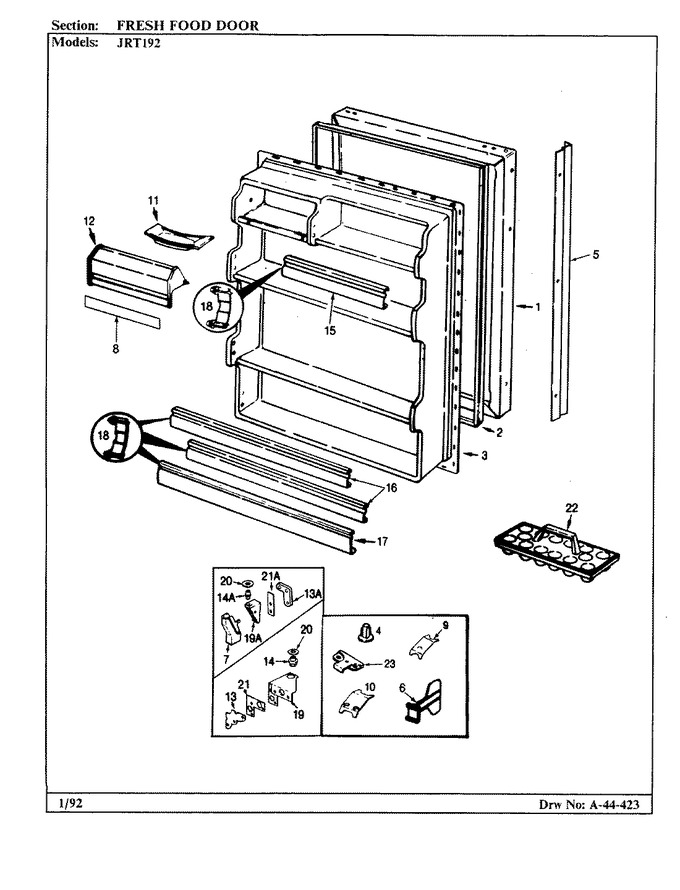

04 - Fresh Food Door


05 - Optional Ice Maker Kit - Imt106


06 - Shelves & Accessories


07 - Unit Compartment & System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	68473-5-AM		Panel, Outer (alm)		Appelez-nous	-
1	RA95056-1		Door Insulation Kit		Appelez-nous	-
1	68473-5-WW		Panel, Outer (wht)		Appelez-nous	-
2	WP70048-3		Gasket, F.f. Door   (Replaces: 66199-6)				$ 283.11
3	65275-5		Screw		Appelez-nous	-
3	68887-1		Inner Panel		Appelez-nous	-
4	67557-2		Plug Button, Air Duct & I/m		Appelez-nous	-
4	67557-3		Plug, Almond		Appelez-nous	-
4	55782-6		Plug Button (almond)		Appelez-nous	-
4	55782-10		Plug Button, Hdle & Door Stop		Appelez-nous	-
5	65275-37		Screw, Handle		Appelez-nous	-
5	68659-1		Handle		Appelez-nous	-
6	64097-10		Organizer, Shelf		Appelez-nous	-
8	68128-20		Trim, Dairy Door		Appelez-nous	-
9	66799-1		Achor, Screw		Appelez-nous	-
10	60123-2		Clip, Stop Screw		Appelez-nous	-
11	29936-2		Tray, Butter		Appelez-nous	-
12	60406-44		Door, Dairy		Appelez-nous	-
13	65790-3		Tapping Plate		Appelez-nous	-
13	403100-1		Screw		Appelez-nous	-
14	68788-1		Hinge Pin		Appelez-nous	-
15	WP61003045		Trim, Shelf   (Replaces: 68410-29)				$ 129.55
16	WP61003045		Trim, Shelf   (Replaces: 68410-28)				$ 129.55
17	WP61003045		Trim, Shelf   (Replaces: 68410-38)				$ 129.55
18	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
19	67714-6		Hinge, Lower		Appelez-nous	-
19	403100-1		Screw		Appelez-nous	-
20	67483-3		Washer, Lower Hinge   (Replaces: 67483-2)			Immediately	$ 45.86
21	60626-1		Shim, Lower Hinge		Appelez-nous	-
22	60066-13		Tray, Egg		Appelez-nous	-
23	60419-10		Door Stop		Appelez-nous	-
23	9986-108		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
