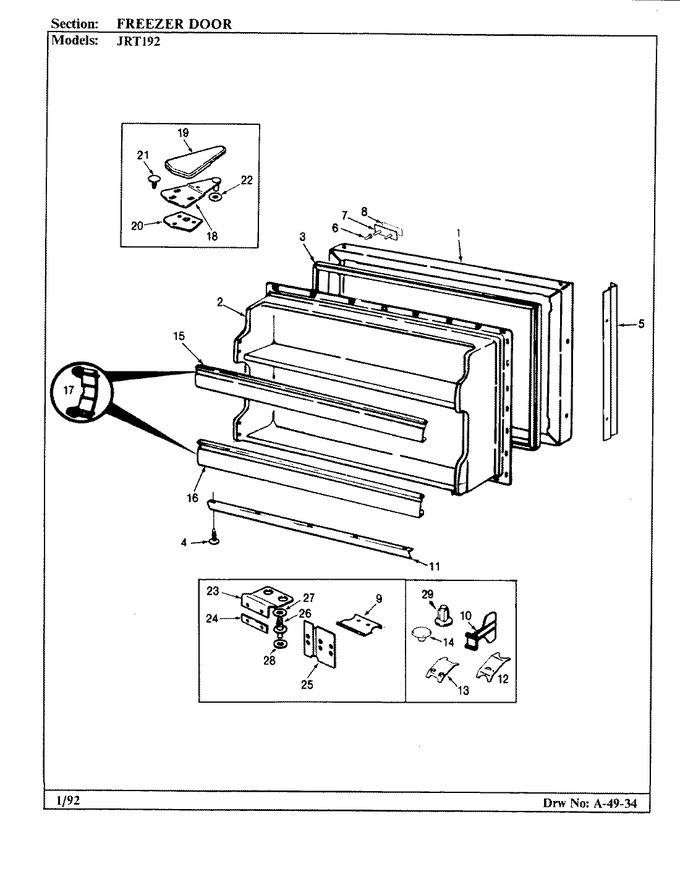

02 - Freezer Door
03 - Fresh Food Compartment
04 - Optional Ice Maker Kit - Imt106
05 - Shelves & Accessories
06 - Unit Compartment & System
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 72045-15-AM | Panel, Outer Door |
|
- | |||||
| 1 | 72045-15-WW | Panel, Outer Door |
|
- | |||||
| 2 | 65928-18 | Liner, Door |
|
- | |||||
| 2 | 65275-5 | Screw |
|
- | |||||
| 3 | 66199-5 | Gasket, Frz. Door |
|
- | |||||
| 4 | 56686-5 | Clip, Secondary Seal |
|
- | |||||
| 5 | 68660-1 | Handle |
|
- | |||||
| 5 | 65275-37 | Screw, Handle |
|
- | |||||
| 6 | 29356-1 | Retainer, Nameplate |
|
- | |||||
| 7 | 68060-1 | Bezel |
|
- | |||||
| 8 | 68061-4 | Insert, Nameplate |
|
- | |||||
| 9 | 65275-48 | Screw |
|
- | |||||
| 9 | 68988-1 | Stop, Door |
|
- | |||||
| 10 | 64097-10 | Organizer, Shelf |
|
- | |||||
| 11 | 68544-2 | Gasket, Secondary |
|
- | |||||
| 12 | 66799-1 | Achor, Screw |
|
- | |||||
| 13 | 60123-2 | Clip, Stop Screw |
|
- | |||||
| 14 | 67634-2 | Plug Button, Hinge Cup (wht) |
|
- | |||||
| 14 | 67634-3 | Plug Button, Hinge Cup (alm) |
|
- | |||||
| 15 | WP61003045 | Trim, Shelf (Replaces: 68410-31) |
|
$ 129.55 | |||||
| 16 | WP61003045 | Trim, Shelf (Replaces: 68410-28) |
|
$ 129.55 | |||||
| 17 | WP65245-1 | Retainer, Shelf Trim (Replaces: 65245-1) |
|
$ 9.39 | |||||
| 18 | WP3-24838-048 | Screw (Replaces: 65275-52) |
|
$ 7.00 | |||||
| 18 | 53709-20 | Hinge, Upper |
|
- | |||||
| 19 | 65003-3 | Cover, Upper Hinge (alm) |
|
- | |||||
| 19 | 65003-6 | Cover, Upper Hinge (wht) |
|
- | |||||
| 20 | 65031-1 | Shim, Upper Hinge |
|
- | |||||
| 21 | 56144-13 | Plug Button, Upper Hinge (wht) |
|
- | |||||
| 21 | 56144-9 | Plug Button, Hinge Screw (alm) |
|
- | |||||
| 22 | 54233-1 | Washer |
|
$ 7.71 | |||||
| 23 | 68811-2 | Hinge, Center |
|
- | |||||
| 23 | 65275-24 | Screw |
|
- | |||||
| 24 | 68812-1 | Shim, Center Hinge |
|
- | |||||
| 25 | 68377-1 | Tapping Plate, Center Hinge |
|
- | |||||
| 26 | 67322-1 | Pin, Center Hinge |
|
- | |||||
| 27 | 67483-1 | Washer, Center Hinge (upper) |
|
- | |||||
| 28 | 54233-2 | Washer |
|
- | |||||
| 29 | 67557-2 | Plug Button, Air Duct & I/m |
|
- | |||||
| 29 | 67557-3 | Plug, Almond |
|
- |
