SELECT A DIAGRAM
02 - Backguard
03 - Cooktop Parts

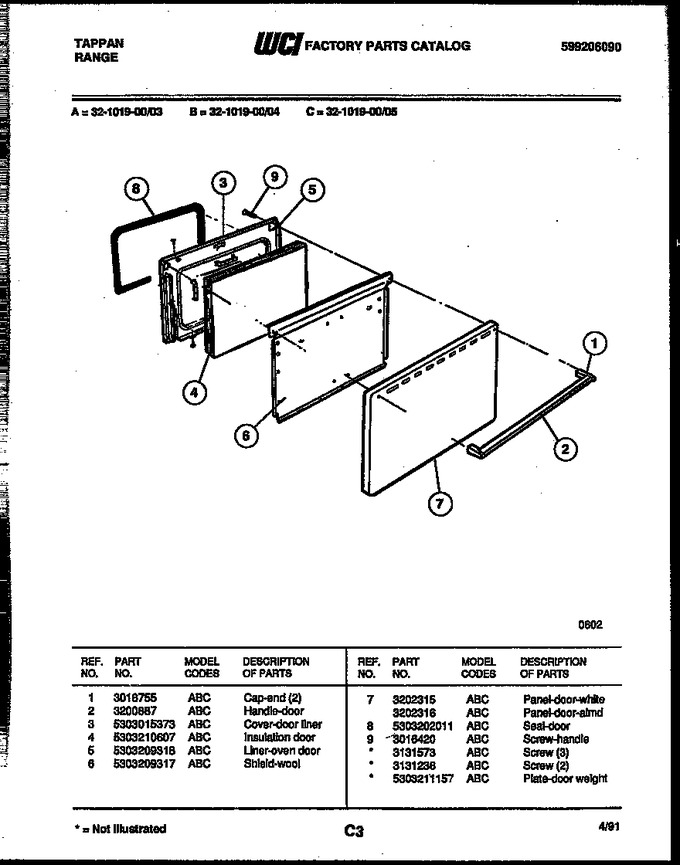

04 - Door Parts
05 - Broiler Drawer Parts
06 - Burner, Manifold And Gas Control
07 - Body Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3016755 | Cap, End (2) |
|
- | |||||
| 2 | 3200887 | Handle, Door |
|
- | |||||
| 3 | 5303015373 | Cover-door Liner |
|
- | |||||
| 4 | 5303210607 | Insulation, Door |
|
- | |||||
| 5 | 5303209318 | Liner-oven Door |
|
- | |||||
| 6 | 5303209317 | Shield-wool |
|
- | |||||
| 7 | 3202316 | Panel - Door (almd) |
|
- | |||||
| 7 | 3202315 | Panel - Door-white |
|
- | |||||
| 8 | 5303202011 | Seal, Door |
|
$ 166.84 | |||||
| 9 | 3016420 | Screw, Handle |
|
- | |||||
| *48905 | 3131573 | Screw (3) |
|
- | |||||
| *48906 | 3131236 | Screw (2) |
|
- | |||||
| *48906 | 5303211157 | Plate, Door Weight |
|
- |
