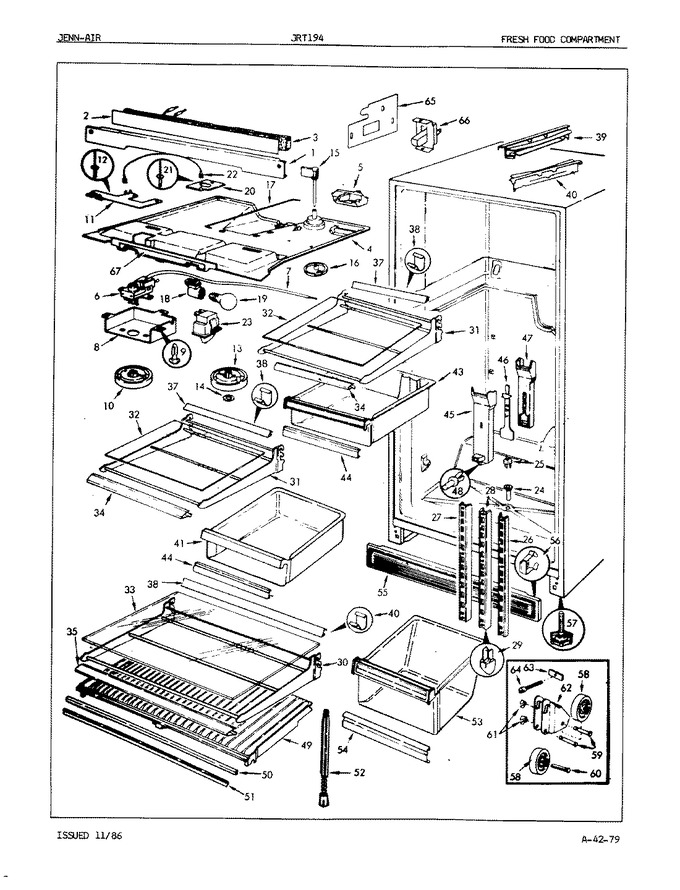

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9986-117 | Screw | - |
|
- | ||||
| 1 | 65797-2-WW | Divider, Mullion (wht) | - |
|
- | ||||
| 2 | 60105-8 | Heater Wire | - |
|
- | ||||
| 3 | 60560-1 | Wire Harness | - |
|
- | ||||
| 3 | 60140-2 | Insulation | - |
|
- | ||||
| 4 | 60085-54 | Top, F.f. Compartment | - |
|
- | ||||
| 5 | 60120-2 | Deflector | - |
|
- | ||||
| 6 | 406013-1 | Screw | - |
|
- | ||||
| 6 | WP68601-6 | Control, Temperature (Replaces: 52881-45) | - |
|
Immediately | $ 233.80 | |||
| 7 | 4008-12 | Plastic Tube | - |
|
- | ||||
| 8 | 405012-1 | Screw | - |
|
- | ||||
| 8 | 60083-1 | Cover, Temperature Control | - |
|
- | ||||
| 9 | 28013-2 | Rivet, Air Tunnel | - |
|
- | ||||
| 10 | 60061-9 | Knob, Temperature Control | - |
|
- | ||||
| 11 | 60147-1 | Bracket, Control | - |
|
- | ||||
| 12 | WP210720 | Rivet (Replaces: 26397-2) | - |
|
$ 12.14 | ||||
| 13 | 60061-10 | Knob, Frzr Control Air Baffle | - |
|
- | ||||
| 14 | 420092-900 | Washer, Spring | - |
|
- | ||||
| 15 | 60071-1 | Damper | - |
|
- | ||||
| 16 | 60082-3 | Crank, Frzr Control | - |
|
- | ||||
| 17 | 60078-3 | Rod | - |
|
- | ||||
| 18 | 60577-1 | Socket, Light | - |
|
- | ||||
| 19 | 40A15 | Bulb, Light (40 Watt) (Replaces: 31956) | - |
|
Immediately | $ 1.98 | |||
| 20 | 60147-2 | Bracket, Light Socket | - |
|
- | ||||
| 21 | WP210720 | Rivet (Replaces: 26397-2) | - |
|
$ 12.14 | ||||
| 21 | 29675-22 | Ground Wire | - |
|
- | ||||
| 22 | 29675-28 | Ground Wire | - |
|
- | ||||
| 23 | 54653-28 | Cord, Switch/light | - |
|
- | ||||
| 23 | W11384469 | Switch, Light (Replaces: 55732-1) | - |
|
Immediately | $ 33.51 | |||
| 24 | 54531-8 | Grommet | - |
|
- | ||||
| 25 | 65039-1 | Cap, Drain Tube | - |
|
- | ||||
| 26 | 60096-8 | Rail, Shelf Support (rt) | - |
|
- | ||||
| 27 | 60096-7 | Rail, Shelf Support (lt) | - |
|
- | ||||
| 28 | 60096-9 | Rail, Shelf Support (center) | - |
|
- | ||||
| 28 | 400037-28 | Screw | - |
|
- | ||||
| 29 | 60340-1 | End Cap, Center Rail | - |
|
- | ||||
| 30 | 60570-14 | Frame, Shelf | - |
|
- | ||||
| 31 | 60570-15 | Frame, Shelf | - |
|
- | ||||
| 32 | 65598-24 | Glass Shelf | - |
|
- | ||||
| 33 | 65598-25 | Glass Shelf | - |
|
- | ||||
| 34 | 60524-6 | Trim, Meat Shelf (front) | - |
|
- | ||||
| 35 | 60524-28 | Trim,shelf (full Front) | - |
|
- | ||||
| 36 | 65276-21 | Trim, Shelf (full Rear) | - |
|
- | ||||
| 37 | 65276-4 | Trim, Meat Shelf (rear) | - |
|
- | ||||
| 38 | 66333-1 | Clip, Shelf Trim | - |
|
- | ||||
| 39 | 66813-1 | Rail, Meat Pan (lt) | - |
|
- | ||||
| 40 | 66814-1 | Rail, Meat Pan (rt) | - |
|
- | ||||
| 41 | 66637-14 | Pan, Deli | - |
|
- | ||||
| 42 | 29675-32 | Ground Wire | - |
|
- | ||||
| 42 | 60571-45 | Insert,escutcheon | - |
|
- | ||||
| 43 | 66637-11 | Pan, Meat | - |
|
- | ||||
| 44 | 60132-78 | Handle | - |
|
- | ||||
| 45 | 60094-18 | Tunnel | - |
|
- | ||||
| 46 | 60093-2 | Damper, Air Tunnel | - |
|
- | ||||
| 47 | 60092-1 | Foam Insulator, Air Tunnel | - |
|
- | ||||
| 48 | 28013-2 | Rivet, Air Tunnel | - |
|
- | ||||
| 49 | 60019-6 | Shelf, Crisper | - |
|
- | ||||
| 50 | 60454-11 | Trim, Crisper Shelf | - |
|
- | ||||
| 51 | 60148-5 | Seal, Crisper Shelf | - |
|
- | ||||
| 52 | 12001957 | Support, Crisper Shelf (Replaces: 66105-1) | - |
|
$ 3.35 | ||||
| 53 | 60457-476 | Pan, Crisper | - |
|
- | ||||
| 54 | 60132-81 | Handle | - |
|
- | ||||
| 55 | 60138-7 | Kickplate | - |
|
- | ||||
| 56 | 60100-1 | Clip, Kickplate | - |
|
$ 5.85 | ||||
| 57 | W11117769 | Leg, Leveling (Replaces: 6012-8) | - |
|
Immediately | $ 16.61 | |||
| 58 | 29834-2 | Wheel | - |
|
- | ||||
| 59 | 29835-2 | Pin, Wheel | - |
|
- | ||||
| 60 | 64965-1 | Pin, Wheel | - |
|
- | ||||
| 61 | 60216-1 | Clip | - |
|
- | ||||
| 62 | 59100-1 | Bracket, Adjusting Wheel | - |
|
- | ||||
| 63 | 59101-1 | Tapping Plate, Wheel | - |
|
- | ||||
| 64 | 406087-1 | Bolt | - |
|
- | ||||
| 65 | 60583-1 | Bracket, Switch | - |
|
- | ||||
| 66 | 54653-32 | Lead | - |
|
- | ||||
| 66 | 9986-112 | Screw | - |
|
- | ||||
| 66 | 60585-1 | Switch, Mullion Heater | - |
|
- | ||||
| 66 | 54653-33 | Lead | - |
|
- |
