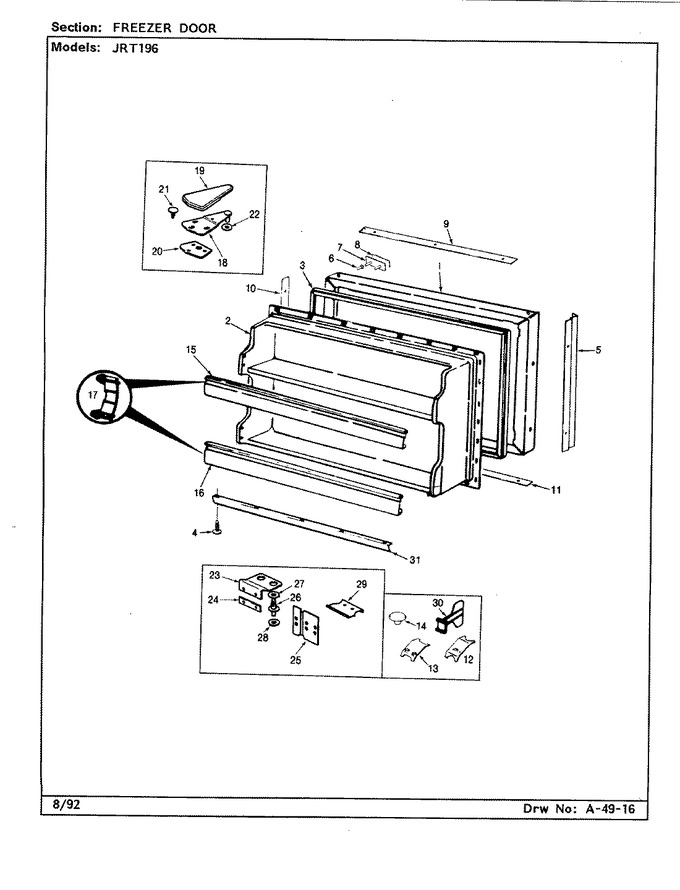

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	72045-11-AM		Panel, Outer Door	-	Appelez-nous	-
1	72045-11-WW		Panel, Outer Door	-	Appelez-nous	-
2	65928-18		Liner, Door	-	Appelez-nous	-
2	65275-5		Screw	-	Appelez-nous	-
3	66199-5		Gasket, Frz. Door	-	Appelez-nous	-
4	56686-5		Clip, Secondary Seal	-	Appelez-nous	-
5	65275-37		Screw, Handle	-	Appelez-nous	-
5	68667-1		Handle	-	Appelez-nous	-
6	65211-1		Retainer, Nameplate	-	Appelez-nous	-
7	68060-1		Bezel	-	Appelez-nous	-
8	68061-4		Insert, Nameplate	-	Appelez-nous	-
9	68671-2		Trim, Perimeter (upper)	-	Appelez-nous	-
10	68196-2		Trim, Perimeter (side)	-	Appelez-nous	-
11	68673-2		Trim, Perimeter (lower)	-	Appelez-nous	-
11	65275-38		Screw	-	Appelez-nous	-
11	65275-39		Screw	-	Appelez-nous	-
12	66799-1		Achor, Screw	-	Appelez-nous	-
13	60123-2		Clip, Stop Screw	-	Appelez-nous	-
14	56186-6		Plug Button, (almond)	-	Appelez-nous	-
14	56186-10		Plug Button, (white)	-	Appelez-nous	-
15	WP61003045		Trim, Shelf   (Replaces: 68410-31)	-			$ 129.55
16	WP61003045		Trim, Shelf   (Replaces: 68410-28)	-			$ 129.55
17	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)	-			$ 9.39
18	WP3-24838-048		Screw   (Replaces: 65275-52)	-			$ 7.00
18	53709-20		Hinge, Upper	-	Appelez-nous	-
19	65003-3		Cover, Upper Hinge (alm)	-	Appelez-nous	-
19	65003-6		Cover, Upper Hinge (wht)	-	Appelez-nous	-
20	65031-1		Shim, Upper Hinge	-	Appelez-nous	-
21	56144-13		Plug Button, Upper Hinge (wht)	-	Appelez-nous	-
22	54233-1		Washer	-			$ 7.71
23	68811-2		Hinge, Center	-	Appelez-nous	-
23	65275-24		Screw	-	Appelez-nous	-
24	68812-1		Shim, Center Hinge	-	Appelez-nous	-
25	68377-1		Tapping Plate, Center Hinge	-	Appelez-nous	-
26	67322-1		Pin, Center Hinge	-	Appelez-nous	-
27	67483-1		Washer, Center Hinge (upper)	-	Appelez-nous	-
28	54233-2		Washer	-	Appelez-nous	-
29	60030-6		Door Stop, Frzr Door	-	Appelez-nous	-
29	65275-18		Screw, Freezer Stop	-	Appelez-nous	-
30	64097-10		Organizer, Shelf	-	Appelez-nous	-
31	68544-2		Gasket, Secondary	-	Appelez-nous	-
