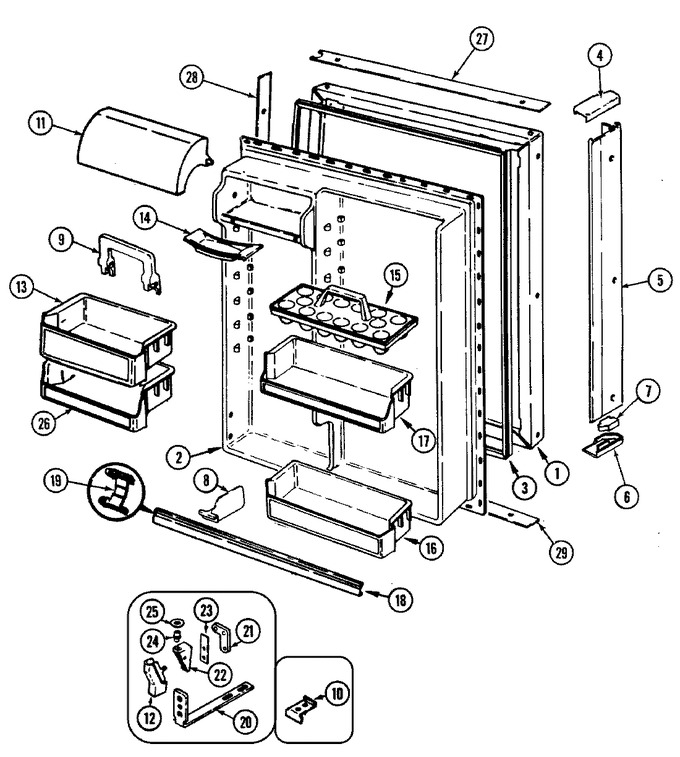

JRT197W (BOM: DE80A) | TransGlobal : Appliance Model Lookup

Diagram #	Part Number	Description	Series	Availability	Ships	Price
1	72349-13-WW	Panel, Outer Door (wht)	10	Appelez-nous	-
2	65275-5	Screw	10	Appelez-nous	-
2	69456-1	Liner	10	Appelez-nous	-
3	70025-6	Gasket, F.f. Door (wht)	10			$ 155.30
4	69910-1	End Cap, Handle	10	Appelez-nous	-
4	69910-2	End Cap (lower-left)	10	Appelez-nous	-
5	69914-3	Handle	10	Appelez-nous	-
5	65275-37	Screw, Handle	10	Appelez-nous	-
6	69910-2	End Cap (lower-left)	10	Appelez-nous	-
6	69910-4	Lower End Cap Assebmly	10	Appelez-nous	-
7	69815-2	Filler, Lower Endcap	10	Appelez-nous	-
7	69815-1	Filler, End Cap	10	Appelez-nous	-
8	69759-2	Organizer	10	Appelez-nous	-
9	69794-1	Retainer, Bottle	10	Appelez-nous	-
10	69256-2	Stop, Door	10	Appelez-nous	-
10	65275-48	Screw	10	Appelez-nous	-
11	69918-8	Door, Dairy	10	Appelez-nous	-
12	68978-4	Cover, Lower Hinge (wht)	10	Appelez-nous	-
13	69872-15	Shelf, Pick-off	10	Appelez-nous	-
14	29936-2	Tray, Butter	10	Appelez-nous	-
15	60066-1	Tray, Egg	10	Appelez-nous	-
16	69872-29	Shelf, Pick-off----na	10	Appelez-nous	-
17	69872-27	Shelf, Pick-off	10	Appelez-nous	-
18	WP61003045	Trim, Shelf (Replaces: 68832-89)	10			$ 129.55
19	WP65245-1	Retainer, Shelf Trim (Replaces: 65245-1)	10			$ 9.39
20	65275-66	Screw (no.10 X 1/2``)	10	Appelez-nous	-
20	69511-1	Tapping Plate, Lower Hinge	10	Appelez-nous	-
20	414012-1	Screw	10	Appelez-nous	-
21	67874-1	Tapping Plate, Lower Hinge	10	Appelez-nous	-
21	65275-59	Screw	10	Appelez-nous	-
22	69516-4	Hinge, Lower (zinc)	10	Appelez-nous	-
23	69510-1	Shim, Lower Hinge	10	Appelez-nous	-
24	69845-1	Pin, Lower Hinge	10			$ 44.55
25	67483-3	Washer, Lower Hinge (Replaces: 67483-2)	10		Immediately	$ 45.86
26	69872-28	Shelf, Pick-off	10	Appelez-nous	-
27	69631-14	Trim, Perimeter (top)	10	Appelez-nous	-
28	69631-8	Trim, Perimeter (side)	10	Appelez-nous	-
29	69631-17	Trim, Perimeter (bottom)	10	Appelez-nous	-
29	65275-39	Screw	10	Appelez-nous	-
29	65275-38	Screw	10	Appelez-nous	-
