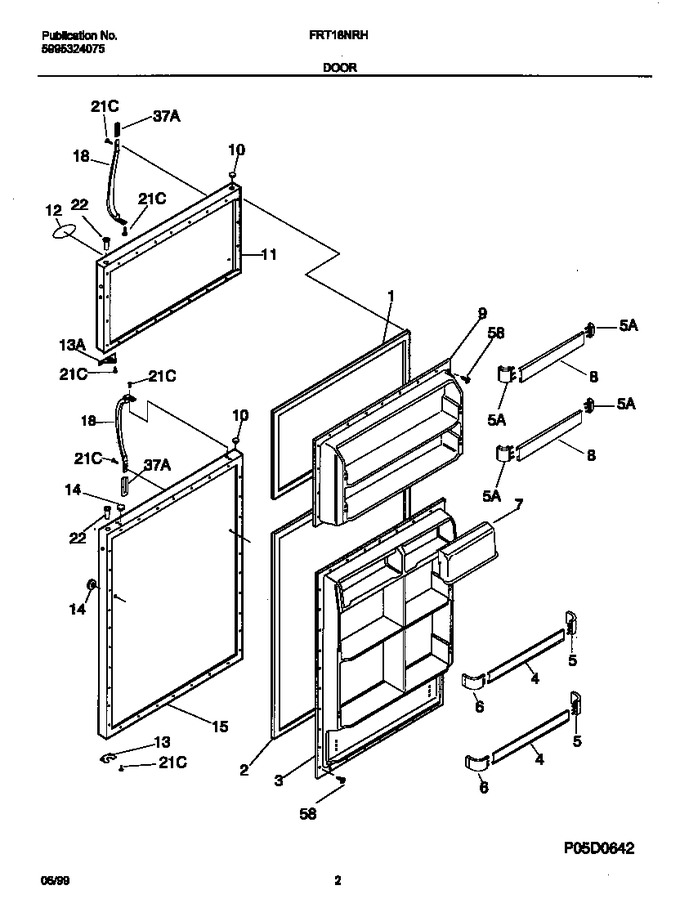

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 215608916 | Gasket-frzr Door, White, Magnetic |
|
$ 258.30 | |||||
| 2 | 5303207345 | Gasket-refr Door, White, Magnetic (Replaces: 218730605) |
|
Immediately | $ 188.19 | ||||
| 3 | 218360001 | Panel-inner Door, Refr |
|
$ 453.98 | |||||
| 4 | 215516220 | Rack-door,20.81`` X 2.04`` (Replaces: 218763639) |
|
$ 54.58 | |||||
| 5 | 218809801 | Support-door Rack, Rh |
|
- | |||||
| 5 | 218758602 | Support-door Rack,rh/lh |
|
Immediately | $ 23.39 | ||||
| 6 | 218809701 | Support-door Rack, Lh |
|
- | |||||
| 7 | 218287908 | Door-dairy,10.71`` Wide |
|
$ 61.01 | |||||
| 8 | 218763638 | Rack-door,22.36`` X 2.04`` |
|
- | |||||
| 9 | 218360101 | Panel-inner Door, Frzr |
|
- | |||||
| 10 | 5308000134 | Plug-button, White, Hinge Brg Hole |
|
$ 5.62 | |||||
| 11 | 5303917805 | Panel-frzr Door, White, W/insulation |
|
- | |||||
| 12 | 218917601 | Label-nameplate,white |
|
$ 2.98 | |||||
| 13 | 218800300 | Door Stop,plated |
|
- | |||||
| 13 | 218249001 | Door Stop, White, Frzr Section |
|
$ 82.06 | |||||
| 14 | 240494001 | Plug-button, White (Replaces: 218915701) |
|
Immediately | $ 18.20 | ||||
| 15 | 5303917806 | Panel-refr Door, White, W/insul & Brace |
|
- | |||||
| 18 | 218668001 | Handle-door, White |
|
Immediately | $ 66.16 | ||||
| 21 | 218252201 | Screw,8 Truss Hd ,10-32ca X 0.500 (Replaces: 218252200) |
|
Immediately | $ 14.18 | ||||
| 22 | 218519300 | Bearing-hinge |
|
$ 14.60 | |||||
| 37 | 218676004 | Band-decorative,satin Aluminum ,handle Trim |
|
$ 57.60 | |||||
| 37 | 215870629 | Trim-handle,2.47`` ,white ,w/satin Al Band |
|
$ 55.99 | |||||
| 58 | 216858001 | Screw, Truss Head, 8-15a X 0.500 (Replaces: 218699800) |
|
Immediately | $ 10.85 | ||||
| *71560 | 5303917276 | Insulation-door, Fiberglass, (bulk) |
|
$ 330.91 |
