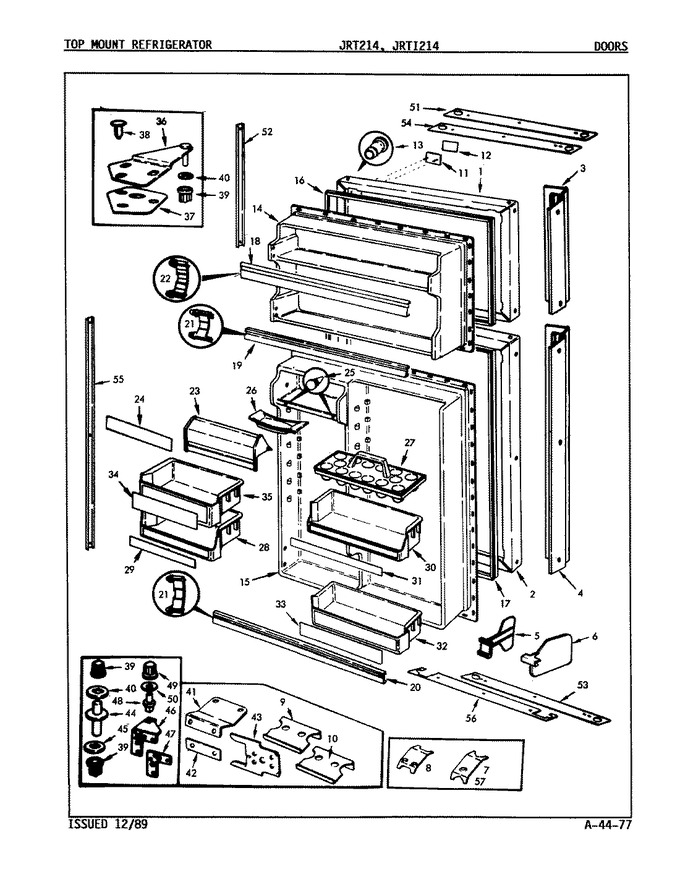

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	66665-1-WW		Panel, Frz. Door (wht)	-	Appelez-nous	-
1	66669-1-AM		Panel, F.f.door (almond)	-	Appelez-nous	-
2	66669-1-WW		Panel, F.f. Door (white)	-	Appelez-nous	-
2	66669-1-AM		Panel, F.f.door (almond)	-	Appelez-nous	-
2	RA95056-1		Door Insulation Kit	-	Appelez-nous	-
2	495036-900		Plug Button	-	Appelez-nous	-
3	66706-1		Door Handle, Freezer Door	-	Appelez-nous	-
4	66704-1		Door Handle	-	Appelez-nous	-
5	66522-4		Organizer, Shelf	-	Appelez-nous	-
6	66645-2		Organizer	-	Appelez-nous	-
6	65275-4		Screw	-	Appelez-nous	-
7	56209-3		Clip, Stop Screw	-	Appelez-nous	-
8	60123-2		Clip, Stop Screw	-	Appelez-nous	-
9	60030-1		Door Stop	-	Appelez-nous	-
10	60030-2		Door Stop	-	Appelez-nous	-
10	9986-108		Screw	-	Appelez-nous	-
11	66641-1		Bezel, Nameplate	-	Appelez-nous	-
12	66646-1		Insert	-	Appelez-nous	-
13	65211-1		Retainer, Nameplate	-	Appelez-nous	-
14	65928-11		Liner, Frz. Door	-	Appelez-nous	-
15	65932-3		Liner, F.f. Door	-	Appelez-nous	-
15	9986-12		Screw,door Liner	-	Appelez-nous	-
16	66199-5		Gasket, Frz. Door	-	Appelez-nous	-
17	WP70048-3		Gasket, F.f. Door   (Replaces: 66199-6)	-			$ 283.11
18	66637-6		Shelf Trim, Frz. Door	-	Appelez-nous	-
19	WP61003045		Trim, Door Shelf   (Replaces: 65151-246)	-			$ 129.55
20	WP61003045		Trim, Door Shelf   (Replaces: 65151-245)	-			$ 129.55
21	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)	-			$ 9.39
22	65246-1		Retainer	-			$ 5.04
23	60406-37		Door, Dairy	-	Appelez-nous	-
24	60573-40		Trim, Dairy Door	-	Appelez-nous	-
25	28272-6		Bumper, Door	-	Appelez-nous	-
26	29936-2		Tray, Butter	-	Appelez-nous	-
27	60066-9		Tray, Egg	-	Appelez-nous	-
28	60037-37		Shelf, Pick-off	-	Appelez-nous	-
29	60572-53		Trim, Pick-off(9.28``x 1.23<`)	-	Appelez-nous	-
30	60037-36		Shelf, Pick-off	-	Appelez-nous	-
31	60572-51		Trim, Pick-off (13.06``x 1.23``)	-	Appelez-nous	-
32	60037-38		Shelf, Pick-off	-	Appelez-nous	-
33	60572-54		Trim, Pick-off Shelf	-	Appelez-nous	-
34	60572-52		Trim, Pick-off (11``x2.3``)	-	Appelez-nous	-
35	60037-35		Door Shelf	-	Appelez-nous	-
36	53709-18		Door Hinge, Upper	-	Appelez-nous	-
36	65003-6		Cover, Upper Hinge (wht)	-	Appelez-nous	-
36	65003-3		Cover, Upper Hinge (alm)	-	Appelez-nous	-
37	65031-1		Shim, Upper Hinge	-	Appelez-nous	-
38	56144-13		Plug Button, Upper Hinge (wht)	-	Appelez-nous	-
38	56144-9		Plug Button, Hinge Screw (alm)	-	Appelez-nous	-
39	66036-1		Bushing,top/center Hinge	-	Appelez-nous	-
40	WP3-24838-048		Screw   (Replaces: 9986-87)	-			$ 7.00
40	WP52185-1		Washer   (Replaces: 52185-1)	-		Immediately	$ 9.47
41	60031-2		Door Hinge, Center	-	Appelez-nous	-
42	60034-1		Spacer, Center Hinge	-	Appelez-nous	-
43	60622-1		Tapping Plate	-	Appelez-nous	-
43	WP3-24838-048		Screw   (Replaces: 9986-107)	-			$ 7.00
44	60035-4		Pin, Center Hinge	-	Appelez-nous	-
45	WP52185-1		Washer   (Replaces: 52185-1)	-		Immediately	$ 9.47
46	403062-5		Screw	-	Appelez-nous	-
46	60630-8		Door Hinge, Lower	-	Appelez-nous	-
47	60626-1		Shim, Lower Hinge	-	Appelez-nous	-
48	53672-1		Pin, Lower Hinge	-	Appelez-nous	-
49	66034-1		Bushing, Lower Hinge	-			$ 19.76
50	56186-6		Plug Button, (almond)	-	Appelez-nous	-
50	54233-2		Washer	-	Appelez-nous	-
50	56186-10		Plug Button, (white)	-	Appelez-nous	-
51	66696-1		Trim Perimeter,refrig. (top)	-	Appelez-nous	-
52	66692-1		Trim Perimeter, Frzr (side)	-	Appelez-nous	-
53	66699-2		Trim Perimeter, Frzr (bottom)	-	Appelez-nous	-
54	66696-1		Trim Perimeter,refrig. (top)	-	Appelez-nous	-
55	66690-1		Trim Perimeter, Refrig. (side)	-	Appelez-nous	-
56	400015-12		Screw	-	Appelez-nous	-
56	66699-1		Trim Perimeter,refrig.(bottom)	-	Appelez-nous	-
57	56209-2		Clip	-	Appelez-nous	-
