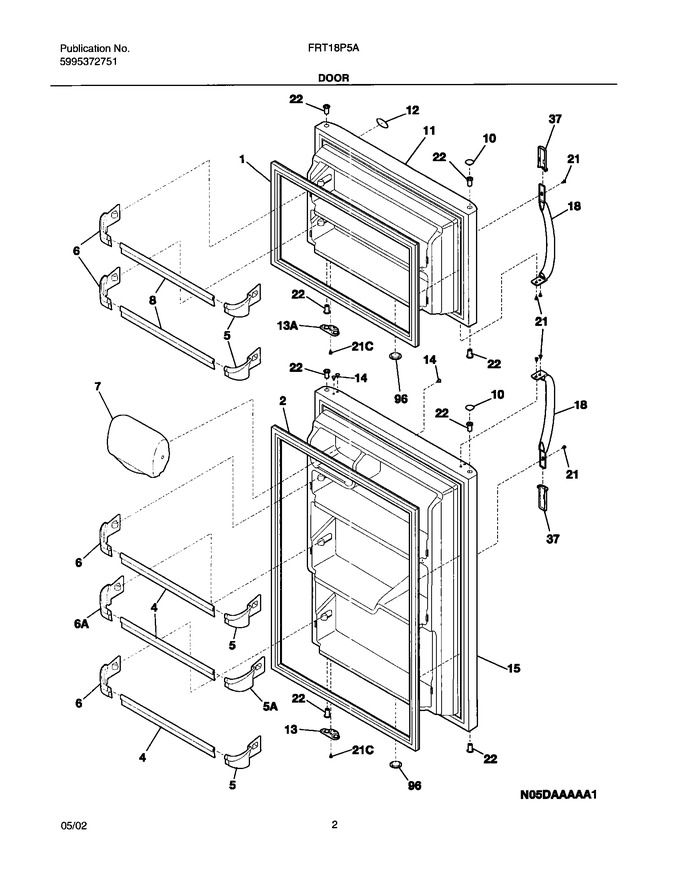

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	240331401		Rack-door,20.27`` X 1.72``			Immediately	$ 47.78
5	240311502		Support-door Rack,2 Liter ,rh			Immediately	$ 11.34
6	240311501		Support-door Rack,2 Liter ,lh			Immediately	$ 11.34
7	240337712		Door-dairy,w/o Graphics ,clear   (Replaces: 240337703)			Immediately	$ 36.41
8	240331401		Rack-door,17.99`` X 1.72``   (Replaces: 240331402)			Immediately	$ 47.78
10	240381303		Plug-button,black ,hinge Brg Hole				$ 69.77
11	240476206		Panel-frzr Door,black ,complete Assy				$ 226.24
12	241808601		Label-nameplate,black   (Replaces: 240415204)				$ 12.69
13	240312422		Door Stop,black ,ref   (Replaces: 240312405)				$ 15.17
14	240494003		Plug-button,black				$ 18.20
15	240450413		Panel-refr Door,black   (Replaces: 240476306)				$ 513.51
18	218668003		Handle-door, Black				$ 69.46
21	5304515677		Screw,truss Hd Quad ,no.10-16 X .500   (Replaces: 240383401)			Immediately	$ 19.23
22	5304507147		Bearing-hinge,black ,(8)   (Replaces: 240311202)			Immediately	$ 7.59
37	215870636		Trim-handle,2.47`` ,black ,w/satin Al Band				$ 76.91
96	240345506		Plug,door Foam Hole ,black				$ 51.87
13A	240312415		Door Stop,black ,frzr   (Replaces: 240312406)				$ 21.27
21C	218252201		Screw,no.8 Truss Hd ,10-32ca X 0.500   (Replaces: 218252200)			Immediately	$ 14.18
5A	240331502		Support-door Rack,gallon ,rh			Immediately	$ 13.46
6A	240331501		Support-door Rack,gallon ,lh			Immediately	$ 13.46
F1	241872509		Gasket,frzr Door Seal ,black ,magnetic   (Replaces: 240514609)			Immediately	$ 164.15
F2	241872512		Gasket,refr Door Seal ,black ,magnetic   (Replaces: 240514612)			Immediately	$ 165.39
NI	218676004		Band-decorative,satin Aluminum ,handle Trim				$ 57.60

    View Diagram in Separate Window       Print Part List
