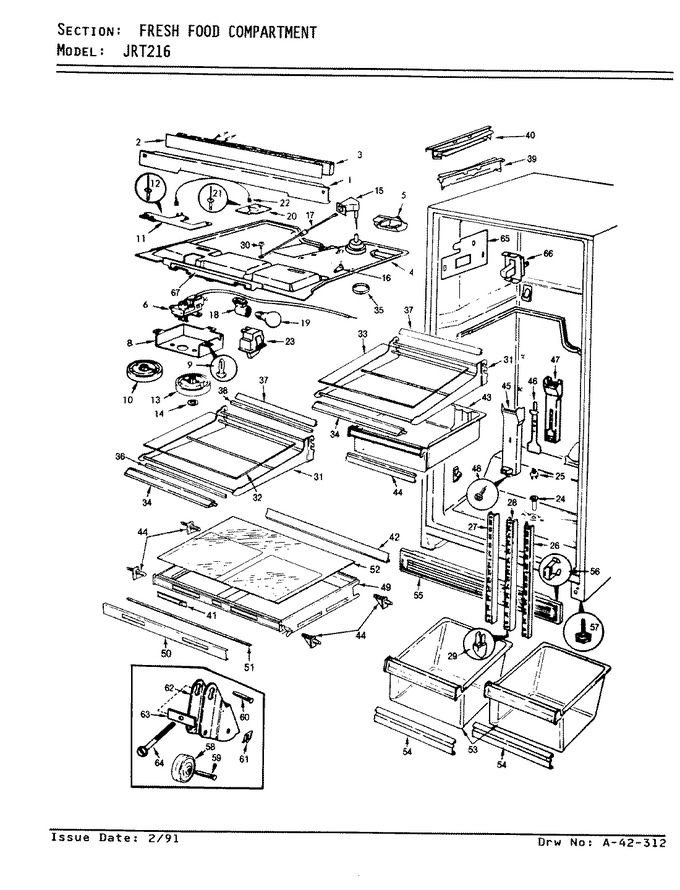

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	68434-2-AM		Divider, Mullion (alm)		Appelez-nous	-
1	68434-2-WW		Divider, Mullion (wht)		Appelez-nous	-
1	65275-23		Screw		Appelez-nous	-
2	68829-2		Heater		Appelez-nous	-
3	68685-2		Wire Harness		Appelez-nous	-
3	60140-2		Insulation		Appelez-nous	-
4	68532-2		Top, F.f. Compartment		Appelez-nous	-
5	60120-2		Deflector		Appelez-nous	-
6	406013-1		Screw		Appelez-nous	-
6	WP68601-6		Control, Temperature   (Replaces: 68119-3)			Immediately	$ 233.80
7	4008-12		Plastic Tube		Appelez-nous	-
8	405012-1		Screw		Appelez-nous	-
8	60083-1		Cover, Temperature Control		Appelez-nous	-
9	28013-2		Rivet, Air Tunnel		Appelez-nous	-
10	68600-8		Knob, Temp. Control		Appelez-nous	-
11	60147-1		Bracket, Control		Appelez-nous	-
12	WP210720		Rivet   (Replaces: 26397-2)				$ 12.14
13	68600-7		Knob, Control		Appelez-nous	-
14	420092-900		Washer, Spring		Appelez-nous	-
15	67558-5		Damper Assy		Appelez-nous	-
15	68989-1		Seal, Top Tower		Appelez-nous	-
16	67636-1		Crank, Frz. Control		Appelez-nous	-
17	67499-4		Rod		Appelez-nous	-
18	60577-1		Socket, Light		Appelez-nous	-
19	40A15		Bulb, Light (40 Watt)   (Replaces: 31956)			Immediately	$ 1.98
20	60147-2		Bracket, Light Socket		Appelez-nous	-
21	WP210720		Rivet   (Replaces: 26397-2)				$ 12.14
21	29675-22		Ground Wire		Appelez-nous	-
22	29675-28		Ground Wire		Appelez-nous	-
23	W11384469		Switch, Light   (Replaces: 66987-1)			Immediately	$ 33.51
23	54653-28		Cord, Switch/light		Appelez-nous	-
24	54531-7		Tube, Drain		Appelez-nous	-
25	65039-1		Cap, Drain Tube		Appelez-nous	-
26	60096-8		Rail, Shelf Support (rt)		Appelez-nous	-
27	60096-7		Rail, Shelf Support (lt)		Appelez-nous	-
28	60096-9		Rail, Shelf Support (center)		Appelez-nous	-
28	400037-28		Screw		Appelez-nous	-
29	60340-1		End Cap, Center Rail		Appelez-nous	-
30	WP59002061		Screw   (Replaces: 65275-13)				$ 6.98
31	420005-1		Washer, Control Rod		Appelez-nous	-
31	67270-3		Frame, Shelf		Appelez-nous	-
32	68405-18		Glass		Appelez-nous	-
33	68405-21		Glass		Appelez-nous	-
34	68731-1		Trim		Appelez-nous	-
35	67493-1		Cover, Crank		Appelez-nous	-
35	69037-1		Disc, Crank Cover		Appelez-nous	-
36	67265-2		Seal, Shelf (front)		Appelez-nous	-
37	68732-1		Trim		Appelez-nous	-
38	67266-2		Seal, Shelf (rear)		Appelez-nous	-
39	68695-1		Rail		Appelez-nous	-
40	68695-3		Rail		Appelez-nous	-
41	68742-1		Slide, Control		Appelez-nous	-
42	68798-3		Trim		Appelez-nous	-
43	66637-37		Pan, Meat Keeper		Appelez-nous	-
44	60132-112		Handle		Appelez-nous	-
45	60094-22		Tunnel, Air (meat)		Appelez-nous	-
46	60093-2		Damper, Air Tunnel		Appelez-nous	-
47	60092-1		Foam Insulator, Air Tunnel		Appelez-nous	-
48	W11233072		Screw   (Replaces: 400015-31)			Immediately	$ 12.62
49	68735-2		Shelf, Crisper		Appelez-nous	-
50	68746-2		End Cap (right)		Appelez-nous	-
50	68746-1		End Cap (left)		Appelez-nous	-
50	68744-8		Trim		Appelez-nous	-
51	68797-1		Seal		Appelez-nous	-
52	68743-23		Glass		Appelez-nous	-
53	68163-420		Pan, Crisper		Appelez-nous	-
54	60132-110		Trim		Appelez-nous	-
55	60138-7		Kickplate		Appelez-nous	-
56	60100-1		Clip, Kickplate				$ 5.85
56	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
57	W11117769		Leg, Leveling   (Replaces: 68664-1)			Immediately	$ 16.61
58	29834-2		Wheel		Appelez-nous	-
59	29835-2		Pin, Wheel		Appelez-nous	-
60	64965-1		Pin, Wheel		Appelez-nous	-
61	60216-1		Clip		Appelez-nous	-
62	59100-1		Bracket, Adjusting Wheel		Appelez-nous	-
63	59101-1		Tapping Plate, Wheel		Appelez-nous	-
64	406087-1		Bolt		Appelez-nous	-
65	60583-1		Bracket, Switch		Appelez-nous	-
66	9986-112		Screw		Appelez-nous	-
66	60585-1		Switch, Mullion Heater		Appelez-nous	-
67	60571-70		Insert, Control Escutcheon		Appelez-nous	-
68	68836-1		Stud, Crisper Support		Appelez-nous	-
