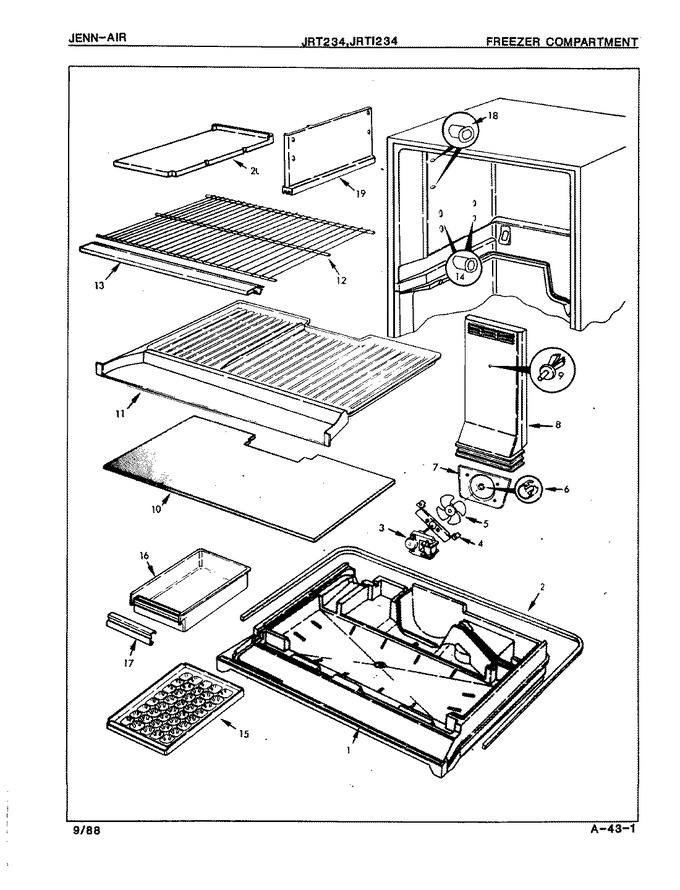

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 66608-1 | Tray, Styrofoam Mullion | - |
|
- | ||||
| 2 | 66325-8 | Seal | - |
|
- | ||||
| 3 | 406062-1 | Screw | - |
|
- | ||||
| 3 | WP61004888 | Motor, Evaporator Fan (Replaces: 54482-10) | - |
|
Immediately | $ 104.99 | |||
| 4 | 64856-1 | Bracket, Fan Motor | - |
|
- | ||||
| 4 | 29675-30 | Ground Wire | - |
|
- | ||||
| 4 | 400015-12 | Screw | - |
|
- | ||||
| 4 | 60565-1 | Wire Harness | - |
|
- | ||||
| 5 | 64359-1 | Blade, Evaporator Fan | - |
|
- | ||||
| 6 | 420092-900 | Washer, Spring | - |
|
- | ||||
| 7 | 60608-2 | Orifice, Fan Blade | - |
|
- | ||||
| 8 | 66044-4 | Tunnel, Air | - |
|
- | ||||
| 9 | 66045-1 | Pin, Air Tunnel Mtg. | - |
|
- | ||||
| 10 | 66403-2 | Cover, Evaporator | - |
|
- | ||||
| 11 | 60474-13 | Bottom, Frz. | - |
|
- | ||||
| 12 | 60323-29 | Shelf | - |
|
- | ||||
| 13 | 60414-66 | Trim, Freezer Shelf | - |
|
- | ||||
| 14 | 65570-1 | Freezer Shelf Cup | - |
|
- | ||||
| 15 | WP61002140 | Ice Cube Tray (Replaces: 60112-1) | - |
|
$ 18.23 | ||||
| 16 | 60653-1 | Pan, Ice | - |
|
- | ||||
| 17 | 60132-79 | Trim, Insert Handle | - |
|
- | ||||
| 18 | 60321-1 | Plug | - |
|
- | ||||
| 18 | 60313-1 | Cup, Shelf | - |
|
- | ||||
| 19 | 60116-6 | Divider | - |
|
- | ||||
| 20 | 66480-3 | Cover, Plenum | - |
|
- | ||||
| 20 | 60655-5 | Shelf | - |
|
- |
