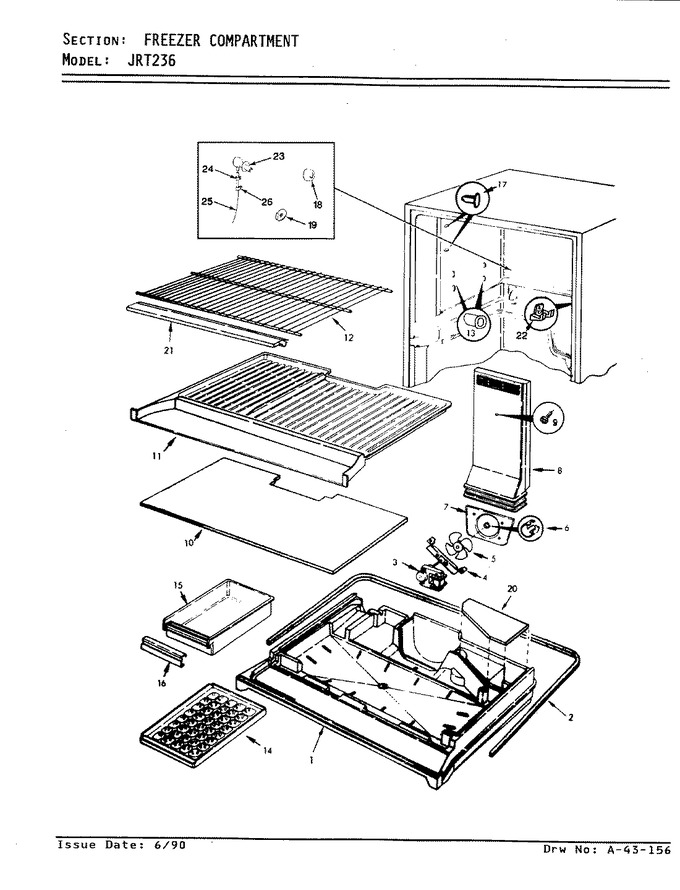

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67521-3		Tray, Foam Mull	-	Appelez-nous	-
2	67730-1		Seal, Front Corner	-	Appelez-nous	-
2	68866-4		Foam Seal 84``	-	Appelez-nous	-
3	WP61004888		Motor, Evaporator Fan   (Replaces: 54482-10)	-		Immediately	$ 104.99
3	404062-1		Screw, Fan Motor Mounting	-	Appelez-nous	-
4	60565-1		Wire Harness	-	Appelez-nous	-
4	64856-1		Bracket, Fan Motor	-	Appelez-nous	-
4	400015-12		Screw	-	Appelez-nous	-
5	64359-1		Blade, Evaporator Fan	-	Appelez-nous	-
6	420092-900		Washer, Spring	-	Appelez-nous	-
7	60608-2		Orifice, Fan Blade	-	Appelez-nous	-
8	68592-4		Air Tunnel	-	Appelez-nous	-
8	66325-9		Seal, Foam Tray	-	Appelez-nous	-
9	W11233072		Screw   (Replaces: 400015-31)	-		Immediately	$ 12.62
10	66403-3		Cover, Evaporator	-	Appelez-nous	-
11	66325-11		Seal, Foam Tray	-	Appelez-nous	-
11	66477-1		Bottom, Frz.	-	Appelez-nous	-
12	60438-21		Shelf, Frz	-	Appelez-nous	-
13	60313-1		Cup, Shelf	-	Appelez-nous	-
14	WP61002140		Ice Cube Tray   (Replaces: 60112-1)	-			$ 18.23
15	60653-1		Pan, Ice	-	Appelez-nous	-
16	60132-113		Handle Insert	-	Appelez-nous	-
17	67557-1		Plug Button	-	Appelez-nous	-
18	68387-1		Cap, Grommet	-	Appelez-nous	-
19	68187-1		Cap, Connector	-	Appelez-nous	-
20	66480-6		Cover, Plenum	-	Appelez-nous	-
21	67176-10		Trim	-	Appelez-nous	-
22	400019-1		Screw	-	Appelez-nous	-
22	66101-1		Stud, Shelf	-	Appelez-nous	-
23	68307-1		Grommet, Water Entry	-	Appelez-nous	-
24	WPM0114003		Clamp, Spring   (Replaces: 60333-4)	-			$ 9.95
25	WPB5705307		Tubing, Valve To Grommet   (Replaces: 67579-7)	-			$ 11.19
26	W10833902		Clamp, Tubing   (Replaces: 53516-8)	-			$ 9.89
26	WP33002917		Screw   (Replaces: 65275-1)	-		Immediately	$ 6.90
