Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 9986-117 Screw - Appelez-nous -
1 65797-3-WW Divider, Mullion (wht) - Appelez-nous -
2 60105-9 Heater Wire - Appelez-nous -
3 65274-1 Wire Harness - Appelez-nous -
3 60140-3 Insulation - Appelez-nous -
4 60085-50 Top, F.f. Compartment - Appelez-nous -
5 60120-2 Deflector - Appelez-nous -
6 WP68601-6 Control, Temperature   (Replaces: 66545-1) - In-Stock Immediately $ 233.80

6 406013-1 Screw - Appelez-nous -
7 W11117769 Leg, Leveling   (Replaces: 6012-8) - In-Stock Immediately $ 16.61

8 405012-1 Screw - Appelez-nous -
8 60083-1 Cover, Temperature Control - Appelez-nous -
9 28013-2 Rivet, Air Tunnel - Appelez-nous -
10 60061-9 Knob, Temperature Control - Appelez-nous -
11 60147-1 Bracket, Control - Appelez-nous -
12 WP210720 Rivet   (Replaces: 26397-2) - Special Order $ 12.14

13 60061-10 Knob, Frzr Control Air Baffle - Appelez-nous -
14 420092-900 Washer, Spring - Appelez-nous -
15 60071-1 Damper - Appelez-nous -
16 60082-3 Crank, Frzr Control - Appelez-nous -
17 60078-4 Rod, Frzr Control - Appelez-nous -
18 60577-1 Socket, Light - Appelez-nous -
19 40A15 Bulb, Light (40 Watt)   (Replaces: 31956) - In-Stock Immediately $ 1.98

20 60147-2 Bracket, Light Socket - Appelez-nous -
21 WP210720 Rivet   (Replaces: 26397-2) - Special Order $ 12.14

21 29675-22 Ground Wire - Appelez-nous -
22 29675-28 Ground Wire - Appelez-nous -
23 54653-30 Lead - Appelez-nous -
23 55732-3 Switch - Appelez-nous -
24 54531-8 Grommet - Appelez-nous -
25 65039-1 Cap, Drain Tube - Appelez-nous -
26 60096-8 Rail, Shelf Support (rt) - Appelez-nous -
27 60096-7 Rail, Shelf Support (lt) - Appelez-nous -
28 400037-28 Screw - Appelez-nous -
28 60096-9 Rail, Shelf Support (center) - Appelez-nous -
29 60340-1 End Cap, Center Rail - Appelez-nous -
30 60570-21 Frame, Shelf - Appelez-nous -
31 60570-20 Frame, Shelf - Appelez-nous -
32 65598-38 Glass Shelf (1/2 Shelf) - Appelez-nous -
33 65598-30 Glass Shelf (full Shelf) - Appelez-nous -
34 60414-64 Trim, Front-1/2 Shelf - Appelez-nous -
35 60414-43 Trim, Front-full - Appelez-nous -
36 65276-27 Trim, Rear-full - Appelez-nous -
37 65276-7 Trim, Rear - Appelez-nous -
38 65333-1 Insulator, Switch - Appelez-nous -
39 66813-2 Slide Rail,meat & Deli Pan - Appelez-nous -
40 66814-2 Rail, Meat Pan (rt) - Appelez-nous -
41 66637-13 Pan, Deli - Appelez-nous -
42 60571-45 Insert,escutcheon - Appelez-nous -
43 66637-10 Pan, Meat - Appelez-nous -
44 60132-78 Handle - Appelez-nous -
45 60094-18 Tunnel - Appelez-nous -
46 60093-2 Damper, Air Tunnel - Appelez-nous -
47 60092-2 Insulation - Appelez-nous -
48 28013-2 Rivet, Air Tunnel - Appelez-nous -
49 66737-1 Shelf, Crisper - Appelez-nous -
50 60454-15 Trim, Crisper Shelf - Appelez-nous -
51 60145-6 Pan, Crisper - Appelez-nous -
52 12001957 Support, Crisper Shelf   (Replaces: 66105-1) - Special Order $ 3.35

53 60457-477 Pan, Crisper - Appelez-nous -
54 60132-84 Handle,crisper Pan - Appelez-nous -
55 60138-16 Kickplate - Appelez-nous -
56 60100-1 Clip, Kickplate - Special Order $ 5.85

56 WP489478 Screw   (Replaces: 400017-1) - Special Order $ 6.98

57 60381-1 End Cap - Appelez-nous -
57 402039-1 Screw, End Cap, Kickplate Mtg - Appelez-nous -
58 29834-2 Wheel - Appelez-nous -
59 29835-2 Pin, Wheel - Appelez-nous -
60 64965-1 Pin, Wheel - Appelez-nous -
61 60216-1 Clip - Appelez-nous -
62 59100-1 Bracket, Adjusting Wheel - Appelez-nous -
63 59101-1 Tapping Plate, Wheel - Appelez-nous -
64 406087-1 Bolt - Appelez-nous -
65 60583-1 Bracket, Switch - Appelez-nous -
66 54653-32 Lead - Appelez-nous -
66 60585-1 Switch, Mullion Heater - Appelez-nous -
66 402013-1 Screw - Appelez-nous -
66 54653-33 Lead - Appelez-nous -
67 56519-4 Rack, Wine - Appelez-nous -
68 65689-1 Support, Wine Rack - Appelez-nous -
69 65753-21 Insert - Appelez-nous -
70 65753-19 Insert, Wine Rack (plain) - Appelez-nous -
71 400029-1 Screw Rack - Appelez-nous -
71 58057-1 Spring, Wine Rack - Appelez-nous -
72 19530-36 Nylon Nut - Appelez-nous -
73 55512-1 Grommet - Appelez-nous -
74 55513-1 Tube - Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

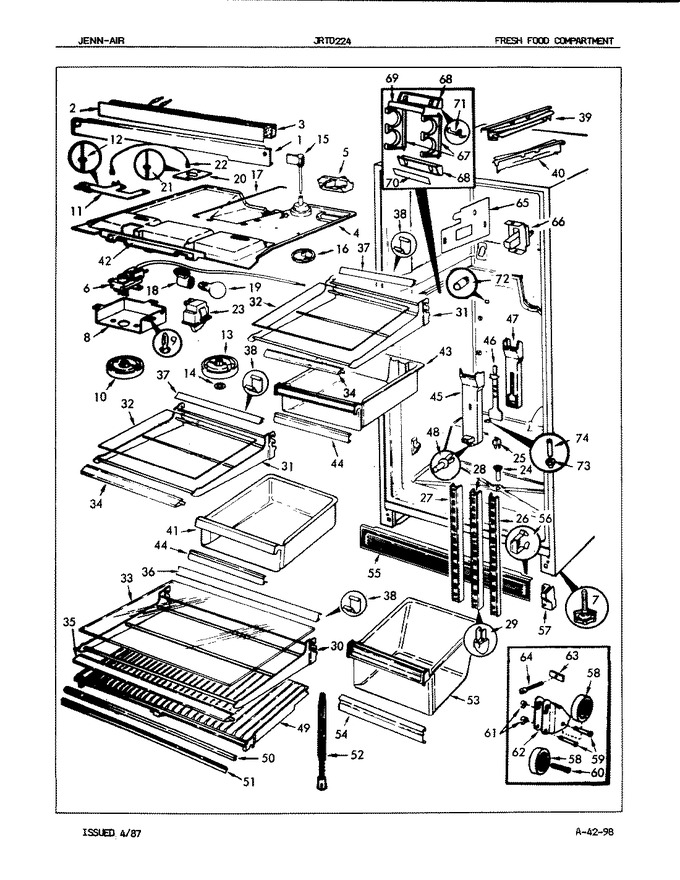

Diagram for JRTD224 (BOM: 7B21A)
