Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP489478 Screw   (Replaces: 400017-1) - Special Order $ 6.98

1 66758-2 Tube - Appelez-nous -
2 56595-3 Valve, Water - Appelez-nous -
2 401018-1 Screw - Appelez-nous -
3 55603-8 Tubing - Appelez-nous -
4 WPB5705307 Tubing   (Replaces: 55602-3) - Special Order $ 11.19

5 55604-1 Nut, Compression (5/16``) - Appelez-nous -
6 WP627018 Nut, Compression (1/4``)   (Replaces: 55419-1) - Special Order $ 9.87

7 60219-1 Inlet Tubing Assembly - Appelez-nous -
8 24685-5 Washer, Inlet Tubing Nut - Appelez-nous -
8 24685-1 Nut, Inlet Tubing - Appelez-nous -
9 53516-2 Clamp - Appelez-nous -
10 68522-1 Cover, Water Line Conn. - Appelez-nous -
11 400048-28 Screw - Appelez-nous -
11 68521-1 Tank, Water - Appelez-nous -
12 29356-1 Retainer, Nameplate - Appelez-nous -
13 WPB5705307 Tubing 34``   (Replaces: 55602-24) - Special Order $ 11.19

15 WP627018 Nut, Compression (1/4``)   (Replaces: 55419-1) - Special Order $ 9.87

16 58461-3 Tube, Fill - Appelez-nous -
17 66447-1 Bin, Ice - Appelez-nous -
18 66205-1 Ice Disp Front - Appelez-nous -
18 WP1163283 Screw   (Replaces: 405022-103) - Special Order $ 6.47

19 68131-15 Insert, Bin Front - Appelez-nous -
20 66098-1 Nut, Auger - Appelez-nous -
21 63084-1 Hub, Reinforcing - Appelez-nous -
22 66448-1 Impeller, Auger - Appelez-nous -
23 63071-1 Pin, Auger - Appelez-nous -
24 66435-1 Auger - Appelez-nous -
25 63017-1 Ring, Drive - Appelez-nous -
26 WP63052-2 Yoke, Ice Dispenser   (Replaces: 63052-1) - In-Stock Immediately $ 62.02

27 W11233072 Screw   (Replaces: 400016-1) - In-Stock Immediately $ 12.62

27 60559-1 Bracket - Appelez-nous -
28 40522-1 Sub 806550 - Appelez-nous -
28 12001773 Motor, Auger   (Replaces: 65186-1) - Special Order $ 312.61

29 WP59688-1A Tray, Ice   (Replaces: 59688-1) - Special Order $ 18.71

30 400018-103 Screw - Appelez-nous -
30 RA43714-8 Mechanism, Ice Maker - Appelez-nous -
31 60467-1 Sensor Arm - Appelez-nous -
32 65319-1 Shaft, Drive - Appelez-nous -
33 58706-1 Ring, Retainer - Appelez-nous -
34 65318-1 Clip, Drive Shaft - Special Order $ 23.83

35 65317-1 Spacer - Appelez-nous -
36 405009-103 Screw - Appelez-nous -
36 53748-1 Spout, Fill - Appelez-nous -
37 63000-5 Dispenser, Water - Appelez-nous -
37 405022-1 Screw - Appelez-nous -
38 60508-1 Heater - Appelez-nous -
39 66620-1 Actuator Arm (ice) - Special Order $ 37.54

40 55602-21 Tubing, Arm Pins - Appelez-nous -
41 66618-1 Actuator Arm (water) - Special Order $ 41.04

41 66616-1 Cover - Appelez-nous -
42 63066-1 Pad, Arm - Special Order $ 26.40

42 402015-103 Screw, Ice Door - Appelez-nous -
43 RA43825-1 Door Assy., Ice - Appelez-nous -
44 63428-1 Spring, Ice Door - Appelez-nous -
45 63053-1 Pin, Ice Door - Appelez-nous -
46 63014-1 Bracket, Ice Door - Appelez-nous -
46 402015-103 Screw, Ice Door - Appelez-nous -
47 63089-1 Insulation - Appelez-nous -
47 66007-1 Boot, Ice Door - Appelez-nous -
48 65002-15 Tubing, Water Line - Appelez-nous -
49 63466-1 Barrier Plate - Appelez-nous -
50 63035-2 Clip - Appelez-nous -
51 60333-2 Clamp, Spring - Appelez-nous -
52 65517-1 Clip - Appelez-nous -
52 65212-1 Motor, Inertia - Appelez-nous -
52 402015-103 Screw, Ice Door - Appelez-nous -
53 63306-1 Spring - Appelez-nous -
54 65292-3 Wire Harness - Appelez-nous -
54 63025-1 Grill - Appelez-nous -
54 60624-1 Wire Harness - Appelez-nous -
54 60523-1 Wire Harness - Appelez-nous -
54 62028-4 Spacer - Appelez-nous -
55 60624-1 Wire Harness - Appelez-nous -
56 60333-1 Clamp, Spring - Appelez-nous -
57 53516-9 Clamp - Appelez-nous -
58 W10857122 Bulb, Light   (Replaces: 63179-1) - Special Order $ 12.45

59 63039-1 Socket, Light - Appelez-nous -
60 401011-1 Screw - Appelez-nous -
60 63056-1 Seal - Appelez-nous -
61 63040-1 Switch, Light - Appelez-nous -
62 405071-1 Screw - Appelez-nous -
62 55440-2 Switch, Ice & Water - Special Order $ 11.94

63 WP2205813 Wire Tie   (Replaces: 66223-1) - Special Order $ 6.95

63 WP67006908 Screw   (Replaces: 400022-1) - In-Stock Immediately $ 7.16

63 RA95059-1 Insulation Kit - Appelez-nous -
63 27116-4 Wire Nut - Appelez-nous -
63 63013-2 Bracket, Switch - Appelez-nous -
63 63459-2 Instalation Kit - Appelez-nous -
64 65333-1 Insulator, Switch - Appelez-nous -
65 64329-1 Tubing - Appelez-nous -
66 WP2198677 Union, Tubing (1/4``-1/4``)   (Replaces: 59205-1) - In-Stock Immediately $ 24.98

67 65176-1 Bushing, Plunger Guide - Appelez-nous -
68 ES18809 Switch, Auger Shut Off   (Replaces: 65177-1) - Special Order $ 11.30

69 65185-1 Strike, Auger Box - Appelez-nous -
70 405072-1 Screw - Appelez-nous -
70 65132-1 Control, Auger Motor - Appelez-nous -
71 65798-1 Insulator - Appelez-nous -
72 65286-2 Bracket - Appelez-nous -
73 65285-1 Switch, 2 Circuit - Appelez-nous -
74 406043-1 Screw - Appelez-nous -
75 430002-1 Nut - Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

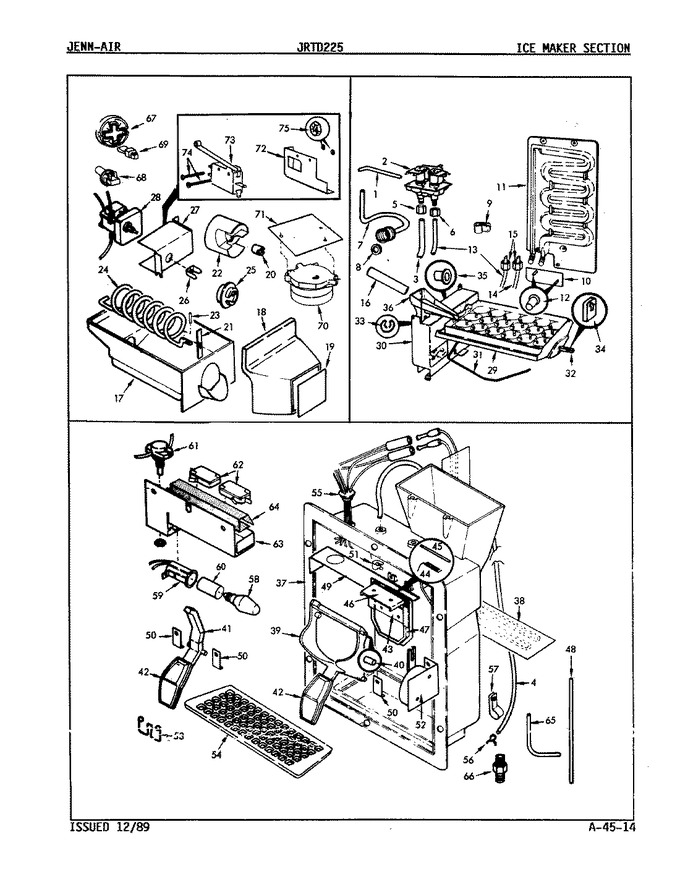

Diagram for JRTD225R (BOM: 9C75B)
