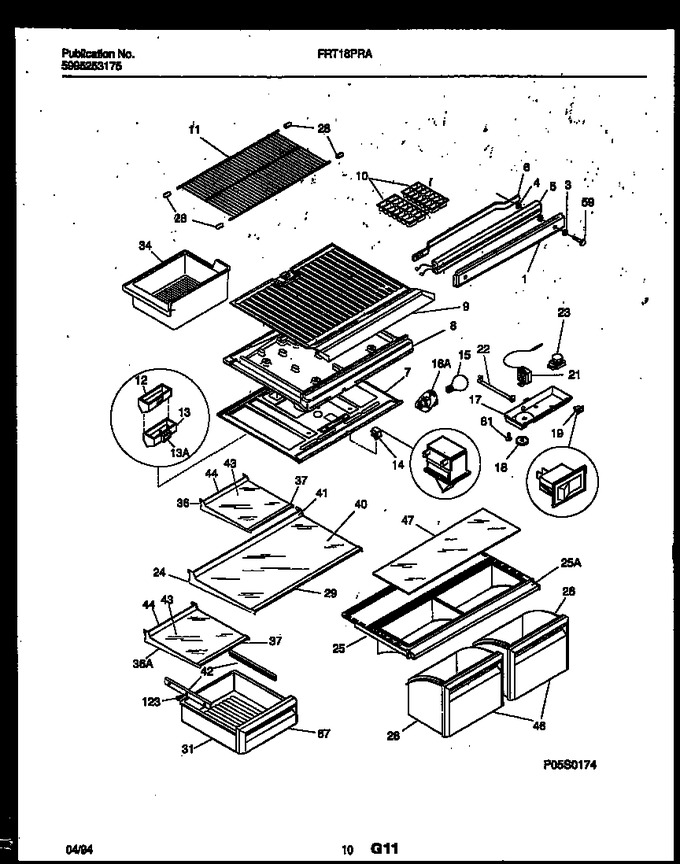

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
37	5303293823		Trim-shelf, 12.59``, Front		Appelez-nous	-
40	5303299982		Glass - Shelf, 26.08`` X 14.57``		Appelez-nous	-
41	5303284470		Trim-shelf, 26.12``, Rear		Appelez-nous	-
42	218971302		Hanger-pan/tray, Rh   (Replaces: 5303298719)				$ 73.71
42	218971202		Hanger-pan/tray, Lh   (Replaces: 5303298718)				$ 60.96
43	5303299899		Glass-shelf, 12.55`` X 14.57``		Appelez-nous	-
44	5303284471		Trim-shelf, 12.59``, Rear		Appelez-nous	-
46	215412103		Front - Crisper Pan		Appelez-nous	-
47	5303299974		Insert-pan Cover, Glass		Appelez-nous	-
59	215097000		Screw-hinge/mullion, Torx Head, 10-24 X 7/8		Appelez-nous	-
67	215357801		Front-meat Pan		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
123	08014528		Screw-hanger Mtg, Cr Pan Hd Plask, 8 X 1/2, Meat/deli P				$ 4.31
*10096	215339900		Clip, Cantilevr Shlf				$ 5.83
*10097	5303211351		Lock-shelf Trim, Rear		Appelez-nous	-
37A	5303209263		Retainer-glass (non-illustrated)		Appelez-nous	-
