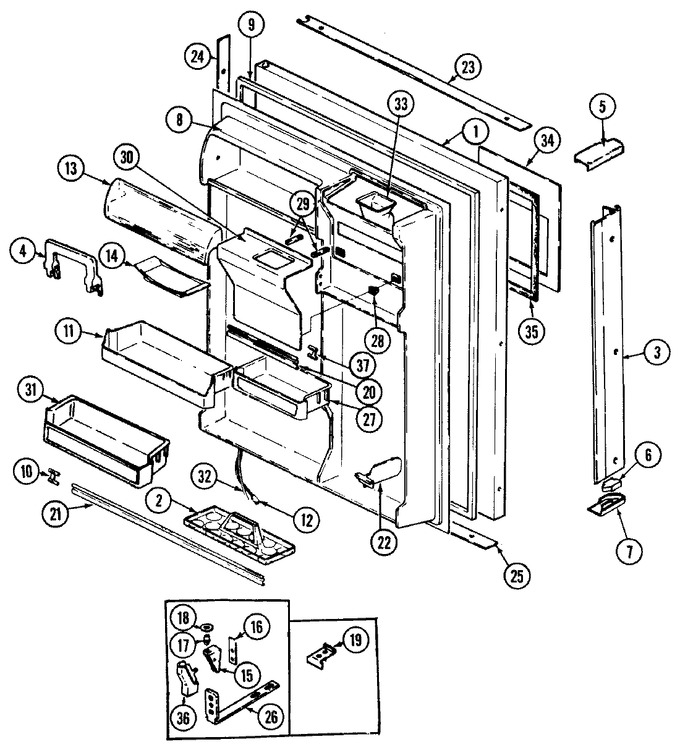

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 72349-10-BK | Panel, F.f. Door (blk) | 10 |
|
- | ||||
| 2 | 60066-1 | Tray, Egg | 10 |
|
- | ||||
| 3 | 65275-37 | Screw, Handle | 10 |
|
- | ||||
| 3 | 69636-2 | Trim, Handle | 10 |
|
- | ||||
| 3 | 69914-5 | Handle | 10 |
|
- | ||||
| 4 | 69794-1 | Retainer, Bottle | 10 |
|
- | ||||
| 5 | 69910-1 | End Cap, Handle | 10 |
|
- | ||||
| 6 | 69637-5 | Filler, End Cap | 10 |
|
- | ||||
| 7 | 69910-4 | Lower End Cap Assebmly | 10 |
|
- | ||||
| 8 | 69458-2 | Liner, F.f. Door | 10 |
|
- | ||||
| 8 | 65275-5 | Screw | 10 |
|
- | ||||
| 9 | 70025-24 | Gasket, F.f. Door | 10 |
|
- | ||||
| 10 | WP65245-1 | Retainer, Shelf Trim (Replaces: 65245-1) | 10 |
|
$ 9.39 | ||||
| 11 | 69872-17 | Shelf, Pick-off | 10 |
|
- | ||||
| 12 | 69865-2 | Wire Harness, Door | 10 |
|
- | ||||
| 12 | 69862-1 | Wire Harness, Door To Main | 10 |
|
- | ||||
| 13 | 69918-3 | Door, Dairy | 10 |
|
- | ||||
| 14 | 29936-2 | Tray, Butter | 10 |
|
- | ||||
| 15 | 65275-51 | Screw, Lower Hinge | 10 |
|
- | ||||
| 15 | 69516-3 | Hinge, Lower (zinc) | 10 |
|
- | ||||
| 16 | 69510-1 | Shim, Lower Hinge | 10 |
|
- | ||||
| 17 | 70060-1 | Pin, Hinge | 10 |
|
- | ||||
| 18 | 67483-3 | Washer, Door Spacer | 10 |
|
Immediately | $ 45.86 | |||
| 19 | 65275-48 | Screw | 10 |
|
- | ||||
| 19 | 69256-2 | Stop, Door | 10 |
|
- | ||||
| 20 | 68833-8 | Trim, Shelf | 10 |
|
- | ||||
| 21 | WP61003045 | Trim, Shelf (Replaces: 68832-94) | 10 |
|
$ 129.55 | ||||
| 22 | 69759-2 | Organizer | 10 |
|
- | ||||
| 23 | 69631-12 | Trim, Perimeter (top) | 10 |
|
- | ||||
| 24 | 69631-8 | Trim, Perimeter (side) | 10 |
|
- | ||||
| 24 | 65275-38 | Screw | 10 |
|
- | ||||
| 25 | 65275-39 | Screw | 10 |
|
- | ||||
| 25 | 69631-16 | Trim, Perimeter (side) | 10 |
|
- | ||||
| 26 | 69511-1 | Tapping Plate, Lower Hinge | 10 |
|
- | ||||
| 26 | 414012-1 | Screw | 10 |
|
- | ||||
| 26 | 65275-66 | Screw (no.10 X 1/2``) | 10 |
|
- | ||||
| 27 | 69872-15 | Shelf, Pick-off | 10 |
|
- | ||||
| 28 | 65184-3 | Latch | 10 |
|
- | ||||
| 29 | 52077-26 | Seal | 10 |
|
- | ||||
| 30 | 69626-2 | Panel, Access | 10 |
|
- | ||||
| 30 | 69535-1 | Insulation, Fountain Perimeter | 10 |
|
- | ||||
| 30 | 69534-1 | Insulation | 10 |
|
- | ||||
| 31 | 69872-16 | Shelf, Pick-off | 10 |
|
- | ||||
| 32 | W10124350 | Not Required Part Or See Note | 12 |
|
- | ||||
| 32 | 69316-1 | Union, Reducing (3/8``- 5/16``) | 10 |
|
- | ||||
| 32 | WPW10426709 | Tubing (Replaces: 67187-25) | 10 |
|
$ 126.83 | ||||
| 33 | 69541-1 | Chute, Ice | 10 |
|
- | ||||
| 34 | 68594-43 | Escutcheon | 10 |
|
- | ||||
| 35 | 95121-1 | Tape, Escutcheon | 10 |
|
- | ||||
| 36 | 65275-47 | Screw, Hinge Cover (black) | 10 |
|
- | ||||
| 36 | 68978-1 | Cover, Lower Hinge (blk) | 10 |
|
- | ||||
| 37 | 65246-1 | Retainer | 10 |
|
$ 5.04 |
