SELECT A DIAGRAM

01 - Top Mount Refrigerator


02 - Door


03 - Cabinet W/fan Assembly


04 - Shelves, Controls, Divider, Mullion


05 - Cooling System

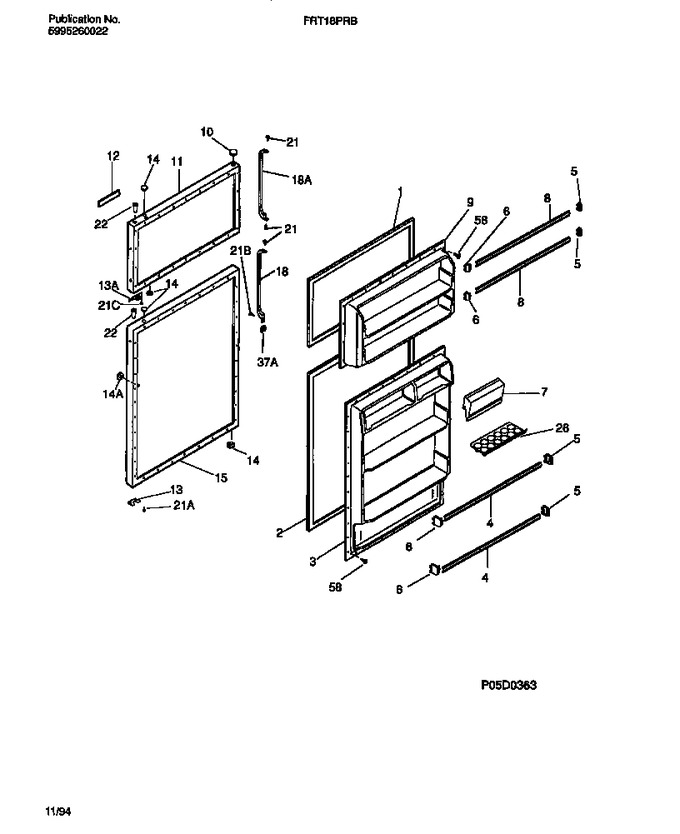

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215608906		Gasket-frzr Door, Almond, Magnetic		Appelez-nous	-
2	5303207345		Gasket-refr Door, Almond, Magnetic   (Replaces: 5303288239)			Immediately	$ 188.19
3	5303207346		Panel-inner Door, Refr		Appelez-nous	-
4	215516220		Rack-door   (Replaces: 215516212)				$ 54.58
5	5303325990		Support-door Rack, Rh   (Replaces: 5303206644)			Immediately	$ 17.01
6	5303325991		Support-door Rack, Lh   (Replaces: 5303206645)				$ 17.01
7	5303290921		Door-dairy		Appelez-nous	-
8	215516220		Rack-door   (Replaces: 215516213)				$ 54.58
9	5303207343		Panel-inner Door, Frzr		Appelez-nous	-
10	5303001308		Plug-button, Almond, Hinge Brg Hole		Appelez-nous	-
11	5303917314		Panel-frzr Door, Almond, W/insulation		Appelez-nous	-
12	215008602		Nameplate Assy, Almond		Appelez-nous	-
13	5308000255		Door Stop				$ 42.20
14	5308000181		Plug-button, Almond, Handle/dr Stop		Appelez-nous	-
15	5303917360		Panel-refr Door, Almond, W/insulation		Appelez-nous	-
18	215482143		Handle-door, 17.37``, Almond		Appelez-nous	-
21	218252011		Screw, No. 8 Oval Head, 10-32(ca) X 5/8, Almond		Appelez-nous	-
22	3206153		Bearing-hinge		Appelez-nous	-
26	215817806		Tray-egg				$ 13.46
58	5308002748		Screw		Appelez-nous	-
*88880	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
13A	218249002		Door Stop, Almond, Frzr				$ 47.88
14A	215352211		Plug-button,almond ,refr Door Front ,		Appelez-nous	-
18A	215482132		Handle-door, 17.02``, Almond		Appelez-nous	-
21A	218251900		Screw, No. 8 Oval Head, 10-32 (ca) X 5/8, Cross Recessed				$ 10.55
21B	215733200		Screw-handle Mtg, Flat Head, 8-18(ab) X 1/2		Appelez-nous	-
21C	218252201		Screw, Cr Truss Head, 10-32(ca) X 1/2   (Replaces: 218252200)			Immediately	$ 14.18
37A	215480202		Trim-handle, End Cap, Almond, Refr Door		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
