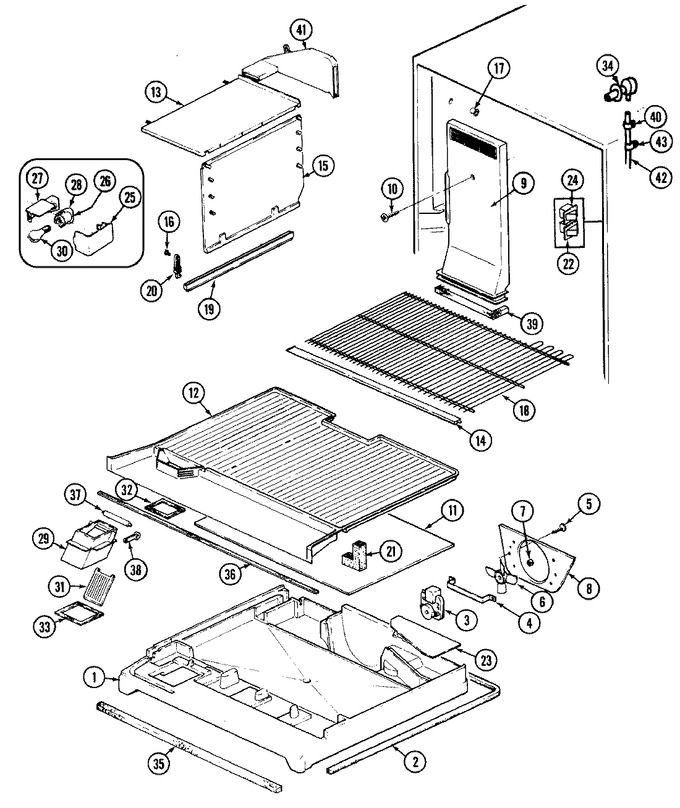

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 69405-1 | Tray, Sytrofoam Mullion | 10 |
|
- | ||||
| 2 | 69414-4 | Seal, Mullion Tray | 10 |
|
- | ||||
| 3 | 69106-2 | Motor, Evaporator Fan | 10 |
|
$ 95.45 | ||||
| 3 | 406062-1 | Screw | 10 |
|
- | ||||
| 4 | 64856-1 | Bracket, Fan Motor | 10 |
|
- | ||||
| 5 | W11233072 | Screw (Replaces: 400015-36) | 10 |
|
Immediately | $ 12.62 | |||
| 6 | 69107-1 | Blade, Evaporator Fan | 10 |
|
- | ||||
| 7 | 420092-900 | Washer, Spring | 10 |
|
- | ||||
| 8 | 60608-2 | Orifice, Fan Blade | 10 |
|
- | ||||
| 9 | 70208-3 | Tunnel, Air | 10 |
|
- | ||||
| 10 | W11233072 | Screw (Replaces: 400015-31) | 10 |
|
Immediately | $ 12.62 | |||
| 11 | 66403-12 | Cover, Evaporator | 10 |
|
- | ||||
| 12 | 69399-2 | Bottom, Frz. | 10 |
|
- | ||||
| 13 | 67142-4 | Shelf, Frz. (plastic) | 10 |
|
- | ||||
| 14 | 70135-22 | Trim, Shelf | 10 |
|
- | ||||
| 15 | 67419-3 | Divider, Shelf | 10 |
|
- | ||||
| 16 | 406008-1 | Screw | 10 |
|
- | ||||
| 17 | 67466-1 | Cup, Shelf | 10 |
|
- | ||||
| 17 | 60313-1 | Cup, Shelf | 10 |
|
- | ||||
| 18 | 67696-6 | Shelf | 10 |
|
- | ||||
| 19 | 67648-1 | Support, Divider | 10 |
|
- | ||||
| 20 | 67657-3 | Guide, Divider | 10 |
|
- | ||||
| 21 | 69563-1 | Seal, Frost Chest Bottom | 10 |
|
- | ||||
| 22 | 68058-1 | Switch, Interlock | 10 |
|
- | ||||
| 23 | 61664806 | Cover, Plenum | 10 |
|
- | ||||
| 24 | W11384469 | Switch, Light (Replaces: 66987-1) | 10 |
|
Immediately | $ 33.51 | |||
| 25 | 67240-1 | Shield, Light | 10 |
|
- | ||||
| 26 | 68974-3 | Receptacle, Bulb | 10 |
|
- | ||||
| 27 | 67361-1 | Deflector, Light | 10 |
|
- | ||||
| 28 | 67241-2 | Base, Light | 10 |
|
- | ||||
| 28 | 67006425 | Screw (Replaces: 400017-35) | 10 |
|
Immediately | $ 6.26 | |||
| 29 | 69625-1 | Tunnel, Ice | 10 |
|
- | ||||
| 30 | W11679940 | Bulb, Light (Replaces: 31956-1) | 10 |
|
Immediately | $ 10.17 | |||
| 31 | 67647-3 | Door, Ice Tunnel | 10 |
|
- | ||||
| 32 | 66325-35 | Seal | 10 |
|
- | ||||
| 33 | 66325-34 | Seal, Air Tunnel----na | 10 |
|
- | ||||
| 34 | 68307-1 | Grommet, Water Entry | 10 |
|
- | ||||
| 35 | 69562-3 | Seal, Mullion Tray | 10 |
|
- | ||||
| 36 | 69413-3 | Magnet | 10 |
|
- | ||||
| 37 | 70184-1 | Weight, Ice Door | 10 |
|
- | ||||
| 38 | 70183-1 | Arm, Ice Door | 10 |
|
- | ||||
| 39 | 66325-37 | Seal, Air Tunnel | 10 |
|
- | ||||
| 40 | WPM0114003 | Clamp, Spring (Replaces: 60333-4) | 10 |
|
$ 9.95 | ||||
| 41 | W11772394 | Screw (Replaces: 400021-1) | 10 |
|
Immediately | $ 10.94 | |||
| 41 | 67061-3 | Duct, Air | 10 |
|
- | ||||
| 42 | WPB5705307 | Tubing, Valve To Grommet (Replaces: 67579-7) | 10 |
|
$ 11.19 | ||||
| 43 | W10833902 | Clamp, Tubing (Replaces: 53516-8) | 10 |
|
$ 9.89 |
