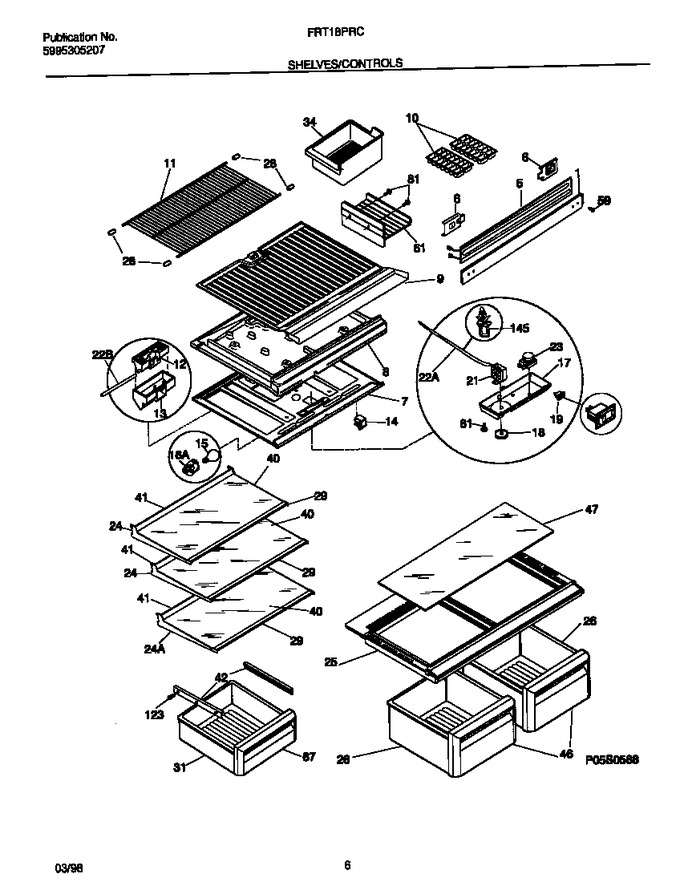

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218430811		Mullion, Almond		Appelez-nous	-
5	218271403		Heater-mullion				$ 115.07
6	218279800		Tapping Plate, Mullion Mtg, (2)		Appelez-nous	-
7	218814800		Top Panel-refr, Hasc		Appelez-nous	-
8	218814600		Divider, Styrofoam		Appelez-nous	-
9	218814700		Bottom Panel-frzr				$ 288.94
10	215667501		Tray-ice,plastic (optiional Accessory)			Immediately	$ 6.07
11	5303288242		Shelf, Freezer, Fixed/flat, Full Width, Wire				$ 403.31
12	218730000		Deflector-air				$ 57.60
13	218631001		Cover-air Deflector				$ 55.19
14	5309918806		Switch-light/lamp			Immediately	$ 21.97
15	5303001179		Light Bulb/lamp,40 W		Appelez-nous	-
16	218906802		Socket-light/lamp   (Replaces: 5308000815)				$ 17.72
17	5303321455		Control Box				$ 46.16
18	5303311079		Knob-temp Control		Appelez-nous	-
19	5303286905		Switch-energy Saver, Rocker Type				$ 27.08
21	5304404821		Control-temperature   (Replaces: 5303321453)			Immediately	$ 164.57
22	218731104		Tube, Pvc, White, @ Air Deflector, Insulator				$ 35.64
22	5303916855		Tube, Plastic, Clear, Sensor Sleeve				$ 60.96
23	215846602		Timer   (Replaces: 215267800)			Immediately	$ 28.20
24	215919161		Frame-full Shelf, Cantilever		Appelez-nous	-
25	5303207340		Cover-crisper Pan, With Beam, Less Insert				$ 265.80
26	3206438		Pan-crisper			Immediately	$ 227.80
28	3201150		End Cap-shelf, Protector, Upper Fzr Shelf				$ 4.57
29	215919418		Trim-glass Shelf, 24.92``, Front				$ 33.39
31	215742602		Pan-meat				$ 174.40
34	5303212918		Container-ice				$ 104.66
40	218390520		Glass-shelf, 24.88`` X 14.57``		Appelez-nous	-
41	215919803		Trim-glass Shelf, 24.92``, Rear		Appelez-nous	-
46	215357605		Front-crisper Pan		Appelez-nous	-
47	218390516		Insert-pan Cover, Glass		Appelez-nous	-
59	240442708		Screw,pan Hd ,10-32 X .625 ,hinge/mullion,thread Forming   (Replaces: 218188000)				$ 8.34
61	215781501		Shelf-ice Tray, Wire				$ 136.19
67	215357805		Front-meat Pan		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
123	215005101		Screw-roller/hanger,8-10 X .438   (Replaces: 215005100)				$ 14.89
145	218660800		Clip, Plastic, Temp Sensor Mtg, Snap-in		Appelez-nous	-
*28577	5303001380		Screw		Appelez-nous	-
*28578	3205266		Edge Protector, Wiring Harness				$ 80.09
*28579	5303299664		Spacer-shelf				$ 24.10
*28580	5303001449		Seal-air Deflector,foam Plastic ,(2)				$ 2.12
*28581	5303200590		Extension, Air Deflector, For 2-pc Cover		Appelez-nous	-
*28582	5308016567		Nut-anchor		Appelez-nous	-
*28583	5303001260		Screw				$ 6.73
*28584	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
42A	218971202		Hanger-pan/tray, Lh   (Replaces: 5303298718)				$ 60.96
42B	218971302		Hanger-pan/tray, Rh   (Replaces: 5303298719)				$ 73.71
