SELECT A DIAGRAM

01 - Doors


02 - Freezer Compartment


03 - Fresh Food Compartment

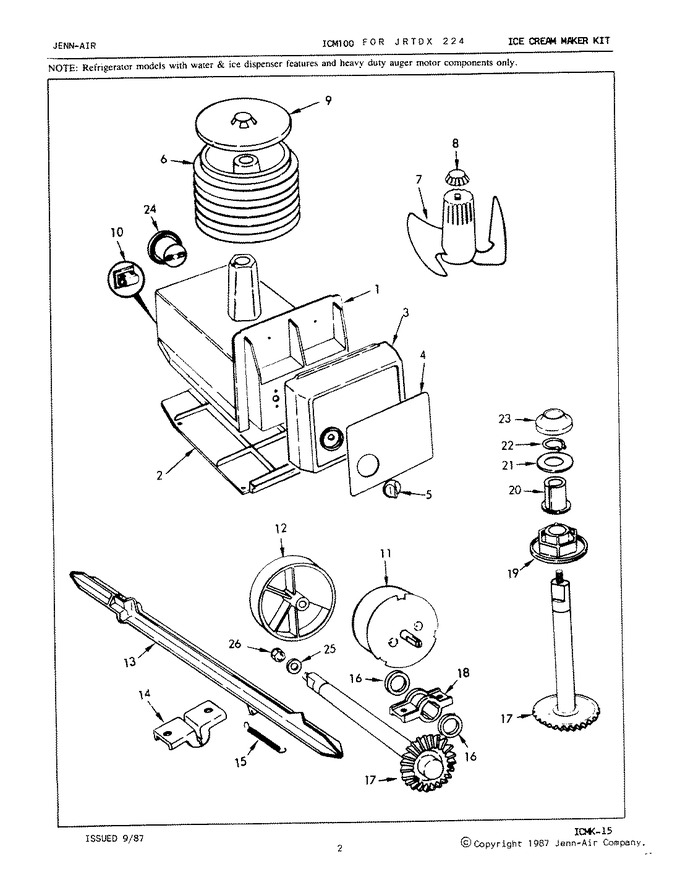

04 - Ice Cream Maker Kit (icm100 B/m 7x24a)


05 - Ice Maker Kit


06 - Ice Maker Kit


07 - Unit Compartment & System


08 - Water & Ice Dispenser


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	66449-1		Base	-	Appelez-nous	-
2	65960-1		Bottom Base	-	Appelez-nous	-
2	402017-001		Screw	-	Appelez-nous	-
3	65126-1		Base Front	-	Appelez-nous	-
3	400001-1		Screw	-	Appelez-nous	-
4	65282-20		Insert, Front Trim	-	Appelez-nous	-
5	65128-2		Timer Knob	-	Appelez-nous	-
6	65122-1		Cannister	-	Appelez-nous	-
7	65127-1		Stirrer	-	Appelez-nous	-
8	65144-2		Stirrer Knob	-	Appelez-nous	-
9	65115-1		Cannister Lid	-	Appelez-nous	-
10	65184-2		Latch	-	Appelez-nous	-
11	406036-1		Screw	-	Appelez-nous	-
11	65341-1		Timer, Mechanical	-	Appelez-nous	-
12	65104-1		Timer Cam	-	Appelez-nous	-
13	65108-1		Plunger	-	Appelez-nous	-
14	65116-1		Bracket	-	Appelez-nous	-
14	400015-12		Screw	-	Appelez-nous	-
15	65142-1		Spring	-	Appelez-nous	-
16	54233-3		Spacer	-	Appelez-nous	-
17	65102-2		Gear & Shaft Assembly	-	Appelez-nous	-
18	400015-12		Screw	-	Appelez-nous	-
18	65109-1		Bearing Horizontal	-	Appelez-nous	-
19	65107-1		Bearing, Lower Vertical	-	Appelez-nous	-
20	65113-1		Bearing, Upper Vertical	-	Appelez-nous	-
21	420097-103		Washer	-	Appelez-nous	-
22	WP9703438		Retainer   (Replaces: 65100-1)	-		Immediately	$ 3.81
23	65233-1		Seal	-	Appelez-nous	-
24	65171-1		Drive Ring	-	Appelez-nous	-
25	420066-103		Washer	-	Appelez-nous	-
26	101768-1		Book, Ice Cream Maker	-	Appelez-nous	-
26	101128-1		Label, Ice Cream Maker	-	Appelez-nous	-
26	104331-1		Sheet, Fact	-	Appelez-nous	-
26	430087-103		Locknut	-	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
