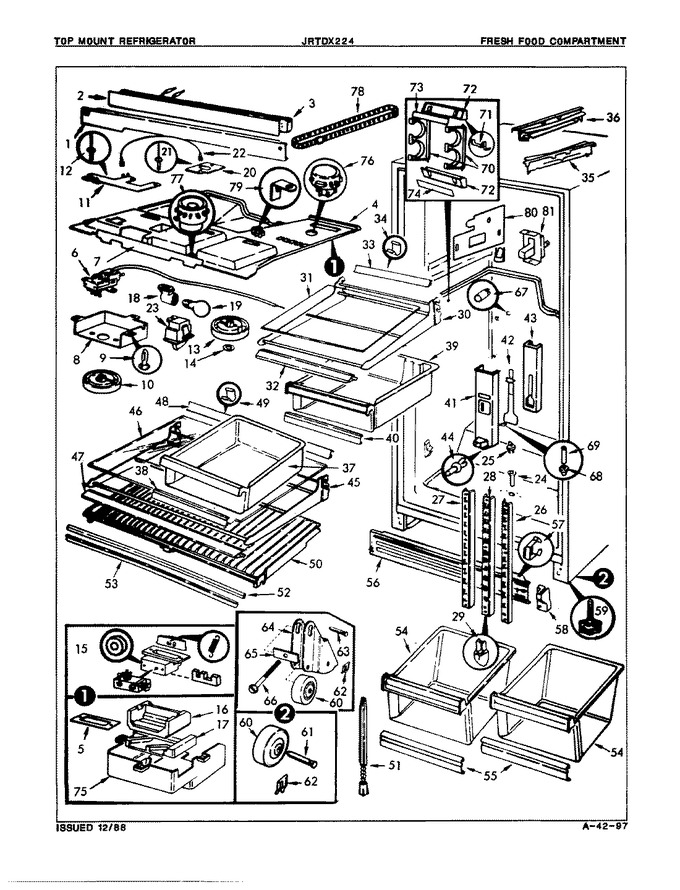

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9986-117		Screw	-	Appelez-nous	-
1	65797-3-WW		Divider, Mullion (wht)	-	Appelez-nous	-
2	60105-9		Heater Wire	-	Appelez-nous	-
3	60140-3		Insulation	-	Appelez-nous	-
3	65274-1		Wire Harness	-	Appelez-nous	-
4	65765-2		Top, F.f. Compartment	-	Appelez-nous	-
5	65620-1		Seal	-	Appelez-nous	-
6	66545-3		Control, Temperature	-	Appelez-nous	-
6	406013-1		Screw	-	Appelez-nous	-
7	60571-50		Insert	-	Appelez-nous	-
8	405012-1		Screw	-	Appelez-nous	-
8	60083-1		Cover, Temperature Control	-	Appelez-nous	-
9	28013-2		Rivet, Air Tunnel	-	Appelez-nous	-
10	WP3196163		Screw   (Replaces: 402068-103)	-			$ 6.26
10	68162-11		Knob	-	Appelez-nous	-
11	60147-1		Bracket, Control	-	Appelez-nous	-
12	WP210720		Rivet   (Replaces: 26397-2)	-			$ 12.14
13	68162-12		Knob	-	Appelez-nous	-
14	420092-900		Washer, Spring	-	Appelez-nous	-
15	60681-1		Damper Control	-	Appelez-nous	-
15	W11233072		Screw   (Replaces: 400016-1)	-		Immediately	$ 12.62
15	62888-4		Sealer	-	Appelez-nous	-
16	60658-1		Insulation	-	Appelez-nous	-
17	60659-1		Insulation	-	Appelez-nous	-
18	60577-1		Socket, Light	-	Appelez-nous	-
19	40A15		Bulb, Light (40 Watt)   (Replaces: 31956)	-		Immediately	$ 1.98
20	60147-2		Bracket, Light Socket	-	Appelez-nous	-
21	29675-22		Ground Wire	-	Appelez-nous	-
21	WP210720		Rivet   (Replaces: 26397-2)	-			$ 12.14
22	29675-28		Ground Wire	-	Appelez-nous	-
23	54653-30		Lead	-	Appelez-nous	-
23	55732-3		Switch	-	Appelez-nous	-
23	60131-6		Foil Switch, Reflector	-	Appelez-nous	-
24	54531-8		Grommet	-	Appelez-nous	-
25	65039-1		Cap, Drain Tube	-	Appelez-nous	-
26	60096-8		Rail, Shelf Support (rt)	-	Appelez-nous	-
27	60096-7		Rail, Shelf Support (lt)	-	Appelez-nous	-
28	400037-28		Screw	-	Appelez-nous	-
28	60096-9		Rail, Shelf Support (center)	-	Appelez-nous	-
29	60340-1		End Cap, Center Rail	-	Appelez-nous	-
30	60570-20		Frame, Shelf	-	Appelez-nous	-
31	65598-38		Glass Shelf (1/2 Shelf)	-	Appelez-nous	-
32	60414-64		Trim, Front-1/2 Shelf	-	Appelez-nous	-
33	65276-36		Trim, Rear-1/2 Shelf	-	Appelez-nous	-
34	66333-1		Clip, Shelf Trim	-	Appelez-nous	-
35	66813-2		Slide Rail,meat & Deli Pan	-	Appelez-nous	-
36	66814-2		Rail, Meat Pan (rt)	-	Appelez-nous	-
37	66637-13		Pan, Deli	-	Appelez-nous	-
38	60132-78		Handle	-	Appelez-nous	-
39	66637-10		Pan, Meat	-	Appelez-nous	-
40	60132-78		Handle	-	Appelez-nous	-
41	60662-6		Tunnel	-	Appelez-nous	-
42	60093-2		Damper, Air Tunnel	-	Appelez-nous	-
43	60660-1		Insulation	-	Appelez-nous	-
44	28013-2		Rivet, Air Tunnel	-	Appelez-nous	-
45	60570-21		Frame, Shelf	-	Appelez-nous	-
46	65598-30		Glass Shelf (full Shelf)	-	Appelez-nous	-
47	60414-43		Trim, Front-full	-	Appelez-nous	-
48	65276-27		Trim, Rear-full	-	Appelez-nous	-
49	66333-1		Clip, Shelf Trim	-	Appelez-nous	-
50	66733-2		Shelf, Crisper	-	Appelez-nous	-
51	12001957		Support, Crisper Shelf   (Replaces: 66105-1)	-			$ 3.35
52	60454-15		Trim, Crisper Shelf	-	Appelez-nous	-
53	60148-6		Seal	-	Appelez-nous	-
54	60457-477		Pan, Crisper	-	Appelez-nous	-
55	60132-84		Handle,crisper Pan	-	Appelez-nous	-
56	60237-40		Kickplate (blk)	-	Appelez-nous	-
57	60100-1		Clip, Kickplate	-			$ 5.85
58	402039-4		Screw	-	Appelez-nous	-
59	W11117769		Leg, Leveling   (Replaces: 6012-8)	-		Immediately	$ 16.61
60	29834-2		Wheel	-	Appelez-nous	-
61	29835-2		Pin, Wheel	-	Appelez-nous	-
62	60216-1		Clip	-	Appelez-nous	-
63	64965-1		Pin, Wheel	-	Appelez-nous	-
64	59100-1		Bracket, Adjusting Wheel	-	Appelez-nous	-
65	59101-1		Tapping Plate, Wheel	-	Appelez-nous	-
66	406087-1		Bolt	-	Appelez-nous	-
67	19530-36		Nylon Nut	-	Appelez-nous	-
68	55512-1		Grommet	-	Appelez-nous	-
69	55513-3		Tube	-	Appelez-nous	-
70	400019-1		Screw	-	Appelez-nous	-
70	56519-4		Rack, Wine	-	Appelez-nous	-
71	58057-1		Spring, Wine Rack	-	Appelez-nous	-
72	65689-1		Support, Wine Rack	-	Appelez-nous	-
73	65753-19		Insert, Wine Rack (plain)	-	Appelez-nous	-
74	65753-21		Insert	-	Appelez-nous	-
75	W11233072		Screw   (Replaces: 400016-1)	-		Immediately	$ 12.62
75	60661-1		Damper Housing	-	Appelez-nous	-
76	60665-1		Damper Sprocket	-	Appelez-nous	-
77	60664-1		Knob Sprocket	-	Appelez-nous	-
78	60679-1		Belt	-	Appelez-nous	-
79	W11233072		Screw   (Replaces: 400016-1)	-		Immediately	$ 12.62
79	60680-1		Belt Retainer	-	Appelez-nous	-
80	60583-1		Bracket, Switch	-	Appelez-nous	-
81	402013-1		Screw	-	Appelez-nous	-
81	29675-3		Ground Wire	-	Appelez-nous	-
81	60585-1		Switch, Mullion Heater	-	Appelez-nous	-
81	54653-32		Lead	-	Appelez-nous	-
81	54653-33		Lead	-	Appelez-nous	-
