SELECT A DIAGRAM

01 - Cover

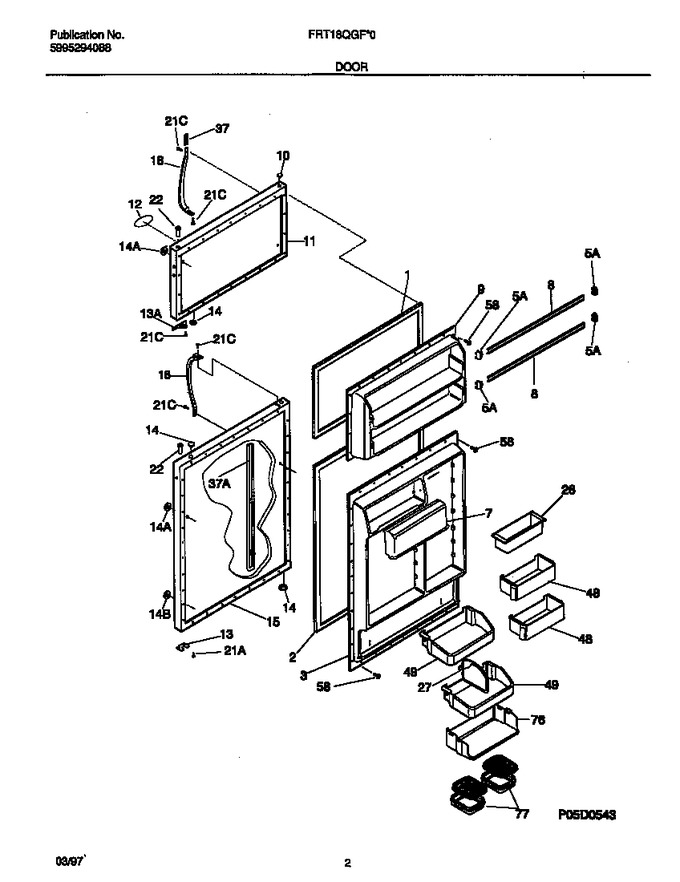

02 - Door


03 - Cabinet


04 - Shelves/controls


05 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215608916		Gasket-frzr Door, White, Magnetic				$ 258.30
2	5303207345		Gasket-refr Door, White, Magnetic   (Replaces: 218730605)			Immediately	$ 188.19
3	218360701		Panel-inner Door, Refr		Appelez-nous	-
5	218758602		Support-door Rack, Rh/lh   (Replaces: 218758601)			Immediately	$ 23.39
8	218763627		Rack-door, (2)		Appelez-nous	-
9	218360101		Panel-inner Door, Frzr		Appelez-nous	-
10	5308000134		Plug-button, White, Hinge Brg Hole				$ 5.62
11	5303917795		Panel-frzr Door, White, With Insulation		Appelez-nous	-
12	215518000		Magnet-nameplate (not Illustrated)		Appelez-nous	-
12	218364001		Frame-nameplate, White		Appelez-nous	-
12	215008613		Label-nameplate, White (not Illustrated)		Appelez-nous	-
13	218249001		Door Stop, White, Frzr Section				$ 82.06
13	5308000255		Door Stop				$ 42.20
14	240494001		Plug-button, White, Refr Door Front, Upper   (Replaces: 218110901)			Immediately	$ 18.20
14	218074001		Plug-button, White, Refr Door Front, Lower				$ 13.76
14	240494001		Plug-button, White, Handle/dr Stop   (Replaces: 5308000090)			Immediately	$ 18.20
15	5303917797		Panel-refr Door, White, W/insul & Brace		Appelez-nous	-
18	218668001		Handle-door, White			Immediately	$ 66.16
21	218251900		Screw, No. 8 Oval Head, 10-32ca X 0.625, Cross Recessed				$ 10.55
26	3204522		Container-egg				$ 98.33
27	218370101		Snugger-door Bin, ``paddle Type``, Gallon Door Bin				$ 88.03
37	215867089		Trim-handle, White, Lower, W/gold Band, And Snap Locks		Appelez-nous	-
37	215940700		Lock-handle Trim, Stick-on (not Illustrated)		Appelez-nous	-
37	215870629		Trim-handle, 2.47``, White, W/gold Band   (Replaces: 215870627)				$ 55.99
41	5308000039		Screw		Appelez-nous	-
48	218592309		Bin-door, With Trim		Appelez-nous	-
49	215441502		Bin-door, Gallon, With Trim   (Replaces: 218592305)				$ 176.87
58	216858001		Screw, Truss Head, 8-15a X 0.500   (Replaces: 218699800)			Immediately	$ 10.85
76	218423900		Rack-microwave Dish		Appelez-nous	-
77	218423502		Dish-microwave, (2)		Appelez-nous	-
*35000	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
21A	218252201		Screw, No. 8 Truss Head, 10-32ca X 0.500   (Replaces: 218252200)			Immediately	$ 14.18
21B	5308007097		Screw, Cr Truss Head, 8-15a X 0.750		Appelez-nous	-
22A	3206153		Bearing-hinge		Appelez-nous	-
22B	218519300		Bearing-hinge				$ 14.60
7A	5303308347		Door-dairy		Appelez-nous	-
7B	5303001380		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
