SELECT A DIAGRAM

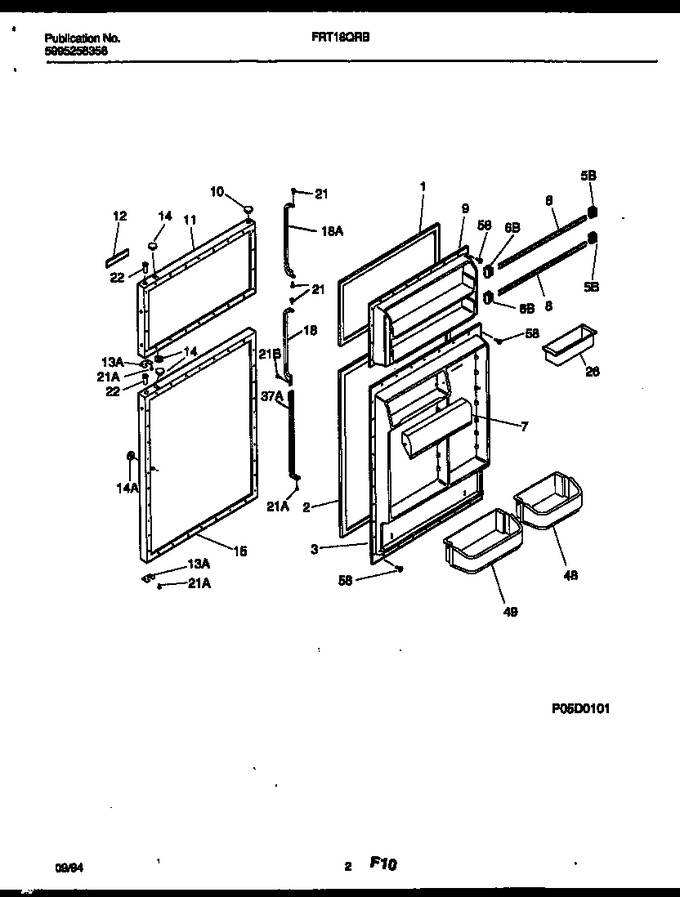

02 - Door Parts


03 - Cabinet Parts


04 - Shelves And Supports


05 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215608906		Gasket-frzr Door, Almond, Magnetic		Appelez-nous	-
2	5303207345		Gasket-refr Door, Almond, Magnetic   (Replaces: 5303288239)			Immediately	$ 188.19
3	215484101		Panel-inner Door, Refr		Appelez-nous	-
5	5303205649		Support-door Rack, Rh		Appelez-nous	-
6	5303204840		Support-door Rack, Lh		Appelez-nous	-
7	5303304560		Door-dairy		Appelez-nous	-
8	215516220		Rack-door   (Replaces: 215516213)				$ 54.58
9	5303207343		Panel-inner Door, Frzr		Appelez-nous	-
10	5303001308		Plug-button, Almond, Hinge Brg Hole		Appelez-nous	-
11	5303917314		Panel-frzr Door, Almond, W/insulation		Appelez-nous	-
12	215008602		Nameplate Assy, Almond		Appelez-nous	-
14	5308000181		Plug-button, Almond, Handle/dr Stop		Appelez-nous	-
15	5303917395		Panel-refr Door, Almond, W/insulation		Appelez-nous	-
18	215482121		Handle-door, 17.37``, Almond		Appelez-nous	-
21	5303272568		Screw-handle Mtg, Oval Head, 10-24(d) X 5/8, Almond, Cr		Appelez-nous	-
22	5308012007		Bearing-hinge		Appelez-nous	-
26	3204522		Container-egg				$ 98.33
48	215940002		Bin-door, 9.84`` Wide		Appelez-nous	-
49	215441502		Bin-door, Gallon   (Replaces: 215441501)				$ 176.87
58	5308002748		Screw		Appelez-nous	-
*10792	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
13A	5308000255		Door Stop				$ 42.20
14A	215352211		Plug-button,almond ,refr Door Front ,		Appelez-nous	-
18A	215482110		Handle-door, 17.02``, Almond		Appelez-nous	-
21A	218251900		Screw, No. 8 Oval Head, 10-32 (ca) X 5/8, Cross Recessed				$ 10.55
21B	215733200		Screw-handle Mtg, Flat Head, 8-18(ab) X 1/2		Appelez-nous	-
37A	215482223		Trim-handle, 27.39``, Dark Almond, Refr Door, W/end Cap		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
