SELECT A DIAGRAM

02 - Door Section

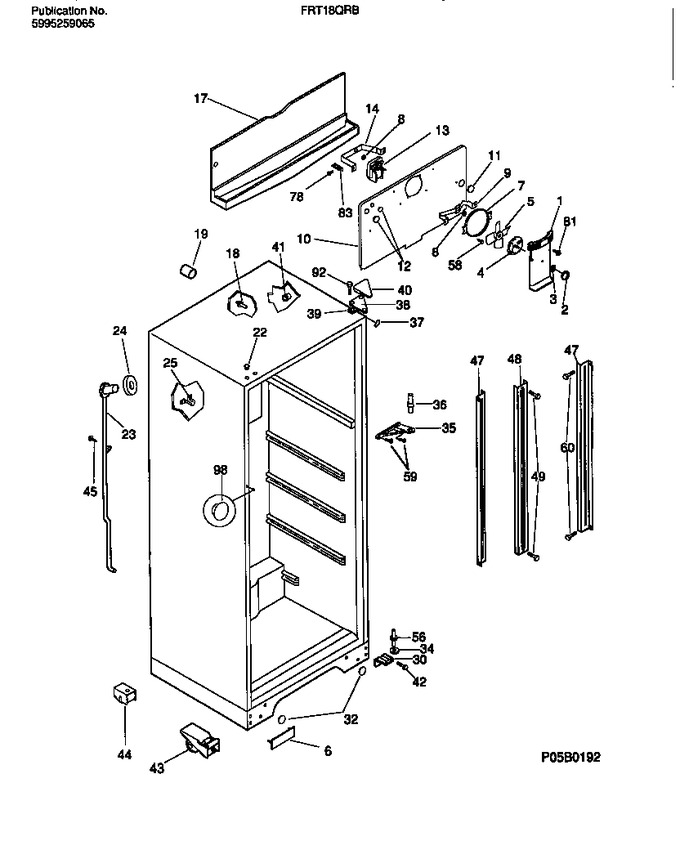

03 - Cabinet W/fan Assembly


04 - Shelves, Controls, Divider, Mullion


05 - Cooling System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303301545		Cover-fan		Appelez-nous	-
2	5303296360		Knob-damper Control		Appelez-nous	-
3	5303001028		Nut,push-on		Appelez-nous	-
4	3206110		Damper-fan Cover				$ 53.08
5	5308000010		Fan Blade			Immediately	$ 49.03
6	215846500		Cover-hole, Lower Hinge		Appelez-nous	-
7	5308000124		Ring-fan Orifice				$ 53.58
8	5300157666		Bushing - Motor Mtg, (2)		Appelez-nous	-
9	5303205118		Bracket-motor Mtg, Front		Appelez-nous	-
10	3206451		Cover-evap Coil		Appelez-nous	-
11	5303208309		Plug-hole, Factory Test				$ 45.50
12	215079000		Plug-harness Hole, Round				$ 8.61
13	5300158289		Motor-evap Fan   (Replaces: 215360800)			Immediately	$ 149.94
14	5303205119		Bracket-motor Mtg, Rear		Appelez-nous	-
17	3206444		Trough-drain		Appelez-nous	-
18	215245000		Support-evap Cover				$ 25.20
19	5303001198		Tube-rubber		Appelez-nous	-
22	215774911		Plug-button, Almond, Upr Hinge Holes		Appelez-nous	-
23	5303269702		Tube-drain, W/seal Ring				$ 104.63
24	5303207353		Seal Ring, Drain Tube				$ 6.81
25	215774100		Spout-drain Tube, W/mounting Pins		Appelez-nous	-
30	3206136		Bracket-lower Hinge		Appelez-nous	-
32	215217702		Plug-button, Cabinet Base, (2)		Appelez-nous	-
34	5308000186		Washer, .34 X .62 X .10, Nylon			Immediately	$ 6.02
35	218220102		Bracket-ctr Hinge, Almond		Appelez-nous	-
36	218251300		Pin-center Hinge				$ 59.54
37	5303202340		Trim-cabinet Corner, Almond		Appelez-nous	-
38	3206100		Bracket-upper Hinge		Appelez-nous	-
39	5303001037		Shim - Upper Hinge				$ 12.39
40	3206105		Cover-upper Hinge, Almond				$ 60.90
41	5304509705		Grommet, Shelf/rod Mtg, Rh   (Replaces: 5303001609)				$ 10.01
42	215880100		Screw-hinge Mtg, Hex Washer Head, 1/4-20 X 5/8, (2)		Appelez-nous	-
43	5300188673		Roller Assy, Front		Appelez-nous	-
44	5303283014		Roller Assy, Metal Housing		Appelez-nous	-
45	5304455651		Screw   (Replaces: 5303001343)				$ 14.41
47	3206202		Channel-shelf Mtg, Side, (2)		Appelez-nous	-
48	3916030		Channel-shelf Mtg, Center		Appelez-nous	-
49	215507300		Screw, Hex Washer Head, 8(ab) X 1-1/2		Appelez-nous	-
56	218220300		Pin-lower Hinge		Appelez-nous	-
58	5308002748		Screw		Appelez-nous	-
59	240442708		Screw-hinge/mullion , 10-32 X 5/8   (Replaces: 218188000)				$ 8.34
60	5303217328		Screw, Hex Washer Head, 8-15(a) X 1		Appelez-nous	-
78	5303274237		Screw-bracket, Hex Washer Head, 8-32(ca) X 1/2		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
83	5308000107		Bracket-connector				$ 33.23
92	241710601		Screw   (Replaces: 5303001479)				$ 13.46
98	215099711		Plug-button, Almond, Ctr Hinge Hole		Appelez-nous	-
*11162	5303305325		Touch-up Paint, Almond		Appelez-nous	-
12A	215079100		Plug-wtr Inlet Tube, Round				$ 6.25
30A	215882300		Tapping Plate, Lower Hinge, (2) (non-illustrated)		Appelez-nous	-
41A	5304500407		Grommet, Shelf Mtg, Lh (non-illustrated)   (Replaces: 5308009759)			Immediately	$ 6.38
43A	5308009760		Roller (non-illustrated)		Appelez-nous	-
43B	5308009761		Bolt-roller Adj (non-illustrated)				$ 18.61
43C	5308009790		Spring-roller Adj (non-illustrated)				$ 4.30
43D	5308011326		Washer, .34 X .62 X .20, Nylon (non-illustrated)				$ 9.87

    View Diagram in Separate Window       Print Part List
