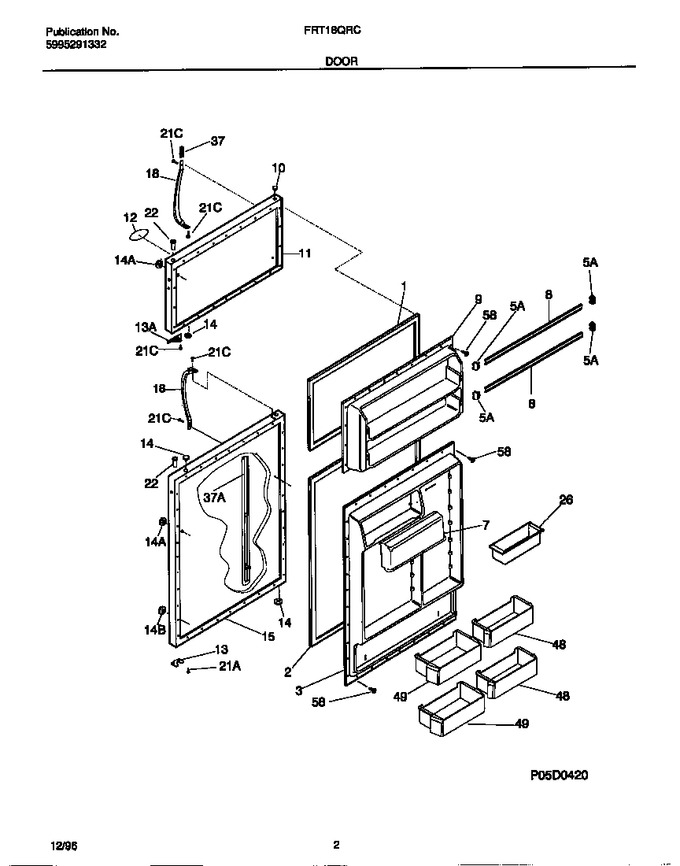

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215608906		Gasket-frzr Door, Almond, Magnetic		Appelez-nous	-
2	5303207345		Gasket-refr Door, Almond, Magnetic   (Replaces: 218730606)			Immediately	$ 188.19
3	218360701		Panel-inner Door, Refr		Appelez-nous	-
5	218758602		Support-door Rack, Rh/lh   (Replaces: 218758601)			Immediately	$ 23.39
8	215516220		Rack-door, 22.27`` X 2.04``   (Replaces: 215516276)				$ 54.58
9	218360101		Panel-inner Door, Frzr		Appelez-nous	-
10	5303001308		Plug-button, Almond, Hinge Brg Hole		Appelez-nous	-
11	5303917796		Panel-frzr Door, Almond, With Insulation		Appelez-nous	-
12	218425005		Nameplate Assy, Almond		Appelez-nous	-
12	218364002		Frame-nameplate, Almond		Appelez-nous	-
12	215008608		Label-nameplate, Almond (not Illustrated)		Appelez-nous	-
12	215518000		Magnet-nameplate (not Illustrated)		Appelez-nous	-
13	218249002		Door Stop, Almond, Frzr Section				$ 47.88
13	5308000255		Door Stop				$ 42.20
14	5308000181		Plug-button, Almond, Handle/dr Stop		Appelez-nous	-
14	218110902		Plug-button, Almond, Refr Door Front, Upper		Appelez-nous	-
14	218074002		Plug-button, Almond, Refr Door Front, Lower		Appelez-nous	-
15	5303917798		Panel-refr Door, Almond, W/insul & Brace		Appelez-nous	-
18	218668002		Handle-door, Almond		Appelez-nous	-
21	218252201		Screw, No. 8 Truss Head, 10-32ca X 0.500   (Replaces: 218252200)			Immediately	$ 14.18
21	218251900		Screw, No. 8 Oval Head, 10-32ca X 0.625, Cross Recessed				$ 10.55
22	218519300		Bearing-hinge				$ 14.60
26	3204522		Container-egg				$ 98.33
37	215940700		Lock-handle Trim, Stick-on (not Illustrated)		Appelez-nous	-
41	5308000039		Screw		Appelez-nous	-
48	218592310		Bin-door, With Trim				$ 127.30
49	215441502		Bin-door, Gallon, With Trim   (Replaces: 218592306)				$ 176.87
*02520	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
37A	215870620		Trim-handle, 2.47``, Almond, W/chrome Band		Appelez-nous	-
37B	215867071		Trim-handle, 29.84``, Almond, W/band & Locks		Appelez-nous	-
7A	5303308341		Door-dairy,12.96`` Wide				$ 97.02
7B	5303001380		Screw		Appelez-nous	-
