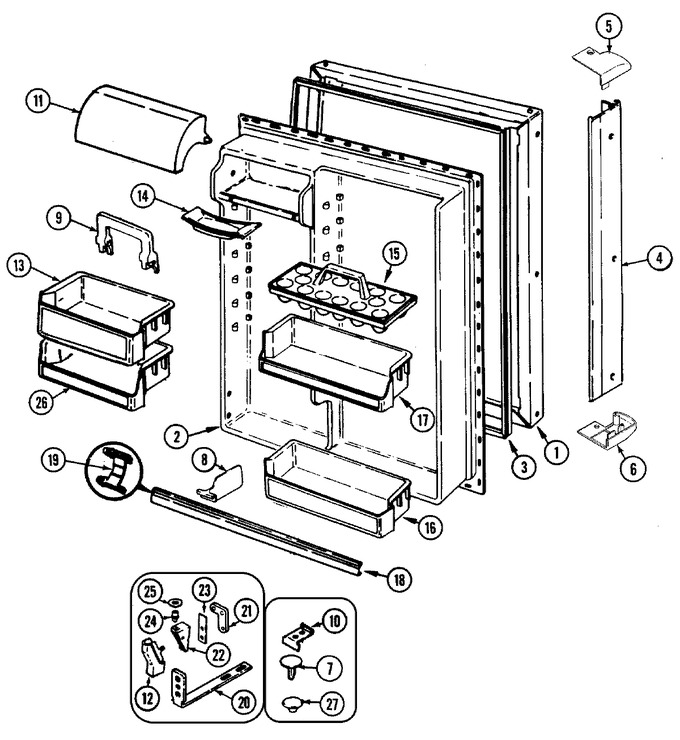

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 72449-2-BK | Panel, F.f. Door (blk) | 10 |
|
- | ||||
| 2 | 69456-1 | Liner | 10 |
|
- | ||||
| 2 | 65275-5 | Screw | 10 |
|
- | ||||
| 3 | 70025-18 | Gasket | 10 |
|
- | ||||
| 4 | 70305-2 | Handle, F.f. Door (blk) | 10 |
|
- | ||||
| 4 | 65275-37 | Screw, Handle | 10 |
|
- | ||||
| 5 | 70306-1 | End Cap, Handle | 10 |
|
- | ||||
| 5 | 70306-2 | End Cap, Handle | 10 |
|
- | ||||
| 6 | 70306-1 | End Cap, Handle | 10 |
|
- | ||||
| 6 | 65275-85 | Screw | 10 |
|
- | ||||
| 6 | 70306-2 | End Cap, Handle | 10 |
|
- | ||||
| 7 | 67557-4 | Plug Button, Hdle Holes (blk) | 10 |
|
- | ||||
| 8 | 69759-2 | Organizer | 10 |
|
- | ||||
| 9 | 70112-1 | Retainer, Bottle | 10 |
|
- | ||||
| 10 | 65275-48 | Screw | 10 |
|
- | ||||
| 10 | 69256-2 | Stop, Door | 10 |
|
- | ||||
| 11 | 69918-8 | Door, Dairy | 10 |
|
- | ||||
| 12 | 68978-1 | Cover, Lower Hinge (blk) | 10 |
|
- | ||||
| 13 | 69872-15 | Shelf, Pick-off | 10 |
|
- | ||||
| 14 | 29936-2 | Tray, Butter | 10 |
|
- | ||||
| 15 | 60066-1 | Tray, Egg | 10 |
|
- | ||||
| 16 | 69872-29 | Shelf, Pick-off----na | 10 |
|
- | ||||
| 17 | 69872-27 | Shelf, Pick-off | 10 |
|
- | ||||
| 18 | WP70111-108 | Trim, Shelf (Replaces: 70111-104) | 10 |
|
Immediately | $ 104.35 | |||
| 19 | 70197-1 | Retainer, Shelf Trim | 10 |
|
Immediately | $ 14.18 | |||
| 20 | 69511-1 | Tapping Plate, Lower Hinge | 10 |
|
- | ||||
| 20 | 65275-66 | Screw (no.10 X 1/2``) | 10 |
|
- | ||||
| 20 | 414012-1 | Screw | 10 |
|
- | ||||
| 21 | 67874-1 | Tapping Plate, Lower Hinge | 10 |
|
- | ||||
| 21 | 65275-59 | Screw | 10 |
|
- | ||||
| 22 | 65275-51 | Screw, Lower Hinge | 10 |
|
- | ||||
| 22 | 69516-2 | Hinge, Lower (blk) | 10 |
|
- | ||||
| 23 | 69510-1 | Shim, Lower Hinge | 10 |
|
- | ||||
| 24 | 69845-1 | Pin, Lower Hinge | 10 |
|
$ 44.55 | ||||
| 25 | 67483-3 | Washer, Lower Hinge (Replaces: 67483-2) | 10 |
|
Immediately | $ 45.86 | |||
| 26 | 69872-28 | Shelf, Pick-off | 10 |
|
- | ||||
| 27 | 67634-5 | Plug, Button (blk) | 10 |
|
- |
