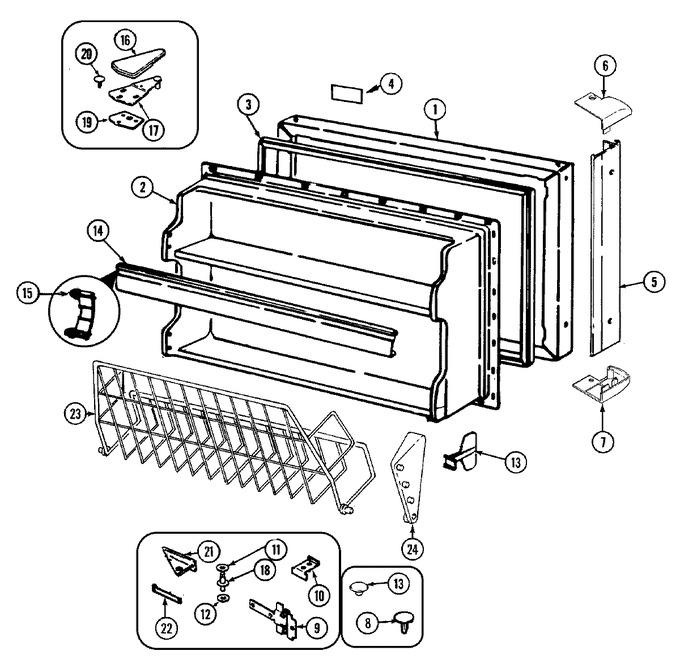

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 72445-2-WW | Panel, Frz. Door (wht) | 10 |
|
- | ||||
| 2 | 65275-5 | Screw | 10 |
|
- | ||||
| 2 | 69470-7 | Liner, Frz. Door | 10 |
|
- | ||||
| 3 | 70025-5 | Gasket, Frz. Door (wht) | 10 |
|
$ 142.50 | ||||
| 4 | 68061-3 | Nameplate | 10 |
|
- | ||||
| 5 | 70305-6 | Handle, Frz. Door (wht) | 10 |
|
- | ||||
| 5 | 65275-37 | Screw, Handle | 10 |
|
- | ||||
| 6 | 70306-1 | End Cap, Handle | 10 |
|
- | ||||
| 6 | 70306-2 | End Cap, Handle | 10 |
|
- | ||||
| 7 | 70306-1 | End Cap, Handle | 10 |
|
- | ||||
| 7 | 65275-85 | Screw | 10 |
|
- | ||||
| 7 | 70306-2 | End Cap, Handle | 10 |
|
- | ||||
| 8 | 67557-2 | Plug Button, Air Duct & I/m | 10 |
|
- | ||||
| 9 | 69419-1 | Tapping Plate, Center Hinge | 10 |
|
- | ||||
| 9 | 65275-61 | Screw | 10 |
|
- | ||||
| 10 | 69256-2 | Stop, Door | 10 |
|
- | ||||
| 10 | 65275-48 | Screw | 10 |
|
- | ||||
| 11 | 67483-6 | Washer | 10 |
|
- | ||||
| 12 | 54233-1 | Washer | 10 |
|
$ 7.71 | ||||
| 13 | 67634-2 | Plug Button, Hinge Cup (wht) | 10 |
|
- | ||||
| 14 | 70111-102 | Trim, Shelf | 10 |
|
- | ||||
| 15 | 70197-1 | Retainer, Shelf Trim | 10 |
|
Immediately | $ 14.18 | |||
| 16 | 70121-4 | Cover, Upper Hinge (wht) | 10 |
|
- | ||||
| 17 | WP3-24838-048 | Screw (Replaces: 65275-52) | 10 |
|
$ 7.00 | ||||
| 17 | 53709-20 | Hinge, Upper | 10 |
|
- | ||||
| 18 | 69517-2 | Pin, Center Hinge | 10 |
|
- | ||||
| 19 | 65031-1 | Shim, Upper Hinge | 10 |
|
- | ||||
| 20 | 56144-14 | Plug Button, Upper Hinge (wht) | 10 |
|
- | ||||
| 21 | 69514-2 | Hinge, Center | 10 |
|
- | ||||
| 21 | 65275-62 | Screw | 10 |
|
- | ||||
| 22 | 69515-1 | Shim, Center Hinge | 10 |
|
- | ||||
| 23 | 70320-1 | Basket, Tilt Out | 10 |
|
- | ||||
| 24 | 70321-2 | Stop, Basket (lt) | 10 |
|
- | ||||
| 24 | 70321-1 | Stop, Basket (rt) | 10 |
|
- |
