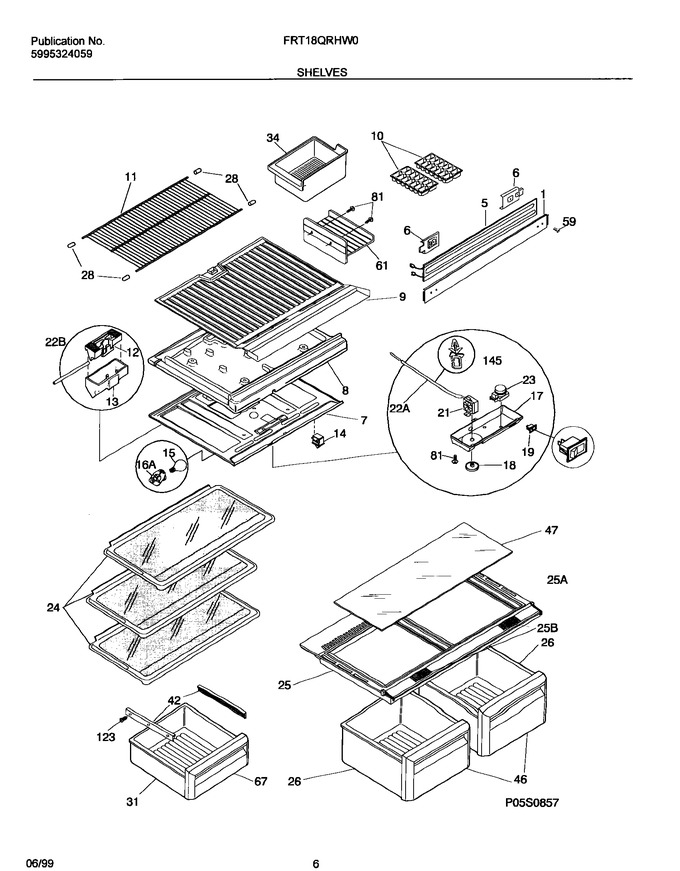

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218874301		Mullion,white		Appelez-nous	-
6	218845602		Tapping Plate, Mullion Mtg, (2)				$ 14.86
7	218814800		Panel-top,refr Cavity		Appelez-nous	-
7	5303001380		Screw		Appelez-nous	-
8	218878500		Harness-wiring,control/divider				$ 105.99
8	218872903		Divider,styrofoam ,w/foil Tape				$ 150.30
9	218814700		Panel-bottom,frzr Cavity				$ 288.94
10	215667501		Tray-ice, Plastic			Immediately	$ 6.07
11	5303299664		Spacer-shelf				$ 24.10
11	5303288242		Shelf, Freezer, Fixed/flat, Full Width, Wire				$ 403.31
12	5303001449		Seal-air Deflector,foam Plastic ,(2)				$ 2.12
12	218730000		Deflector-air				$ 57.60
13	218631001		Cover-air Deflector				$ 55.19
15	5303001179		Light Bulb/lamp,40 W		Appelez-nous	-
17	5303321455		Control Box				$ 46.16
17	5308016567		Nut-anchor		Appelez-nous	-
18	5303311079		Knob-temp Control		Appelez-nous	-
21	5304404821		Control-temperature			Immediately	$ 164.57
21	5303001260		Screw				$ 6.73
23	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
24	215406127		Shelf-``spill-safe``,cantilever ,half Width,teal Graphics				$ 124.53
25	215686501		Cover-crisper Pan, With Beam		Appelez-nous	-
26	3206438		Pan-crisper			Immediately	$ 227.80
28	3201150		End Cap-shelf,protector ,frzr Shelf				$ 4.57
31	215742602		Pan-meat				$ 174.40
34	5303212918		Container-ice				$ 104.66
42	218971302		Hanger-pan/tray,rh   (Replaces: 5304404463)				$ 73.71
42	218971202		Hanger-pan/tray,lh   (Replaces: 5304404462)				$ 60.96
42	218780800		Tab-hanger Mtg,shelf Front				$ 33.65
42	218780900		Tab-hanger Mtg,shelf Rear				$ 28.54
46	215357609		Front-crisper Pan				$ 176.45
47	218498174		Insert-pan Cover,24.60`` X 12.75`` ,glass		Appelez-nous	-
59	240442708		Screw,pan Hd,10-32 X 0.625,hinge/mull,thrd Form   (Replaces: 218188000)				$ 8.34
61	215781501		Shelf-ice Tray, Wire				$ 136.19
67	215357813		Front-meat Pan				$ 113.03
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
123	215005101		Screw-roller/hanger,8-10 X .438   (Replaces: 215005100)				$ 14.89
145	218660800		Clip, Plastic, Temp Sensor Mtg, Snap-in		Appelez-nous	-
16A	218906802		Socket-light/lamp   (Replaces: 218906801)				$ 17.72
22A	5303916855		Tube, Plastic, Clear, Sensor Sleeve				$ 60.96
22B	218731104		Tube, Pvc, White, @ Air Deflector, Insulator				$ 35.64
25A	218905811		Trim-storage Pan Cvr,w/humidity Hole				$ 111.47
25B	5303301393		Control-humidity		Appelez-nous	-
F14	5309918806		Switch-light/lamp			Immediately	$ 21.97
F19	5303286905		Switch-energy Saver, Rocker Type				$ 27.08
F23	215846602		Timer-defrost   (Replaces: 215267800)			Immediately	$ 28.20
F5	218781003		ú Heater-mullion				$ 103.79
