SELECT A DIAGRAM

01 - Cover


02 - Doors


03 - Cabinet

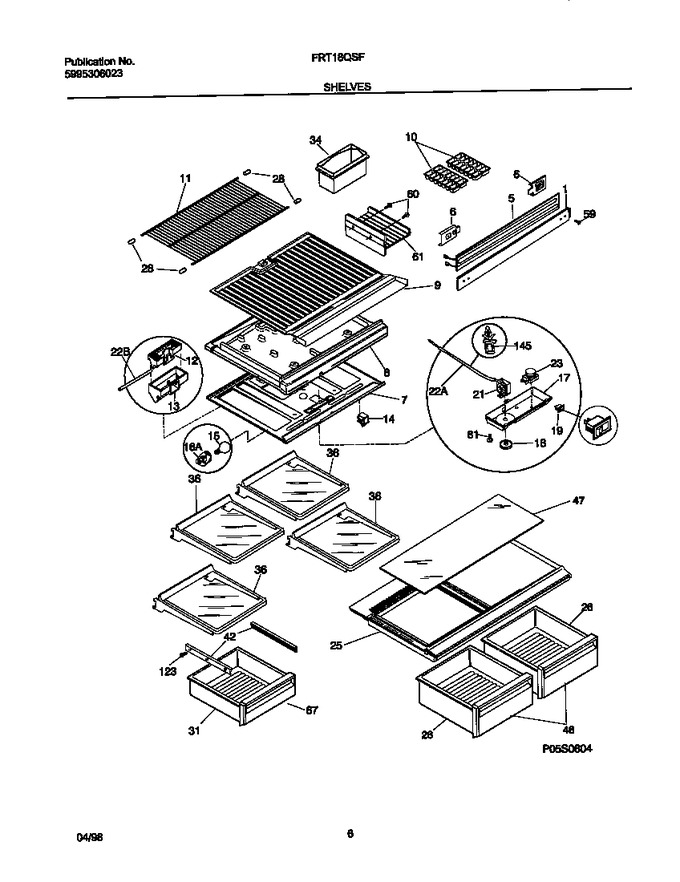

04 - Shelves/controls


05 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218874301		Mullion,white ,1		Appelez-nous	-
5	218781003		ú Heater-mullion				$ 103.79
6	218279800		Tapping Plate, Mullion Mtg, (2)		Appelez-nous	-
7	218814800		Top Panel-refr, Hasc		Appelez-nous	-
8	218814600		Divider, Styrofoam		Appelez-nous	-
9	218814700		Bottom Panel-frzr				$ 288.94
10	215667501		Tray-ice,plastic (optiional Accessory)			Immediately	$ 6.07
11	5303288242		Shelf, Freezer, Fixed/flat, Full Width, Wire				$ 403.31
12	218730000		Deflector-air				$ 57.60
13	218631001		Cover-air Deflector				$ 55.19
14	5309918806		Switch-light/lamp			Immediately	$ 21.97
15	5303001179		Light Bulb/lamp,40 W		Appelez-nous	-
16	218906802		Socket-light/lamp   (Replaces: 5308000815)				$ 17.72
17	5303321455		Control Box				$ 46.16
18	5303311079		Knob-temp Control		Appelez-nous	-
19	5303286905		Switch-energy Saver, Rocker Type				$ 27.08
21	5304404821		Control-temperature   (Replaces: 5303321453)			Immediately	$ 164.57
22	5303916855		Tube, Plastic, Clear, Sensor Sleeve				$ 60.96
22	218731104		Tube, Pvc, White, @ Air Deflector, Insulator				$ 35.64
23	215846602		Timer   (Replaces: 215267800)			Immediately	$ 28.20
25	5303207340		Cover-crisper Pan, With Beam, Less Insert				$ 265.80
26	3206438		Pan-crisper			Immediately	$ 227.80
28	3201150		End Cap-shelf, Protector, Upper Fzr Shelf				$ 4.57
31	215742602		Pan-meat				$ 174.40
34	5303212918		Container-ice				$ 104.66
36	215406120		Shelf, Cantilever, 12.19`` X 15.92``, Fixed, ``spill Safe``		Appelez-nous	-
42	218971302		Hanger-meat Pan,rh   (Replaces: 5304404463)				$ 73.71
42	218971202		Hanger-meat Pan,lh   (Replaces: 5304404462)				$ 60.96
45	5304455651		Screw   (Replaces: 5303001343)				$ 14.41
46	215357605		Front-crisper Pan		Appelez-nous	-
47	218390558		Insert-pan Cover, Glass		Appelez-nous	-
49	218362501		Screw, Hex Washer Head, 8-18ab X 1-1/4   (Replaces: 218362500)				$ 12.05
59	240442708		Screw,pan Hd ,10-32 X .625 ,hinge/mullion,thread Forming   (Replaces: 218188000)				$ 8.34
60	5304455852		Screw,hex Wshr Hd,8-15(a) X 1   (Replaces: 5303207328)				$ 12.76
61	215781501		Shelf-ice Tray, Wire				$ 136.19
67	215357805		Front-meat Pan		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
123	215005101		Screw-roller/hanger,8-10 X .438   (Replaces: 215005100)				$ 14.89
145	218660800		Clip, Plastic, Temp Sensor Mtg, Snap-in		Appelez-nous	-
*84573	5303001380		Screw		Appelez-nous	-
*84574	3018900		Harness-wiring, Control/divider		Appelez-nous	-
*84575	5303001449		Seal-air Deflector,foam Plastic ,(2)				$ 2.12
*84576	5303001260		Screw				$ 6.73
*84577	5304455649		Screw   (Replaces: 5303001259)				$ 17.01

    View Diagram in Separate Window       Print Part List
