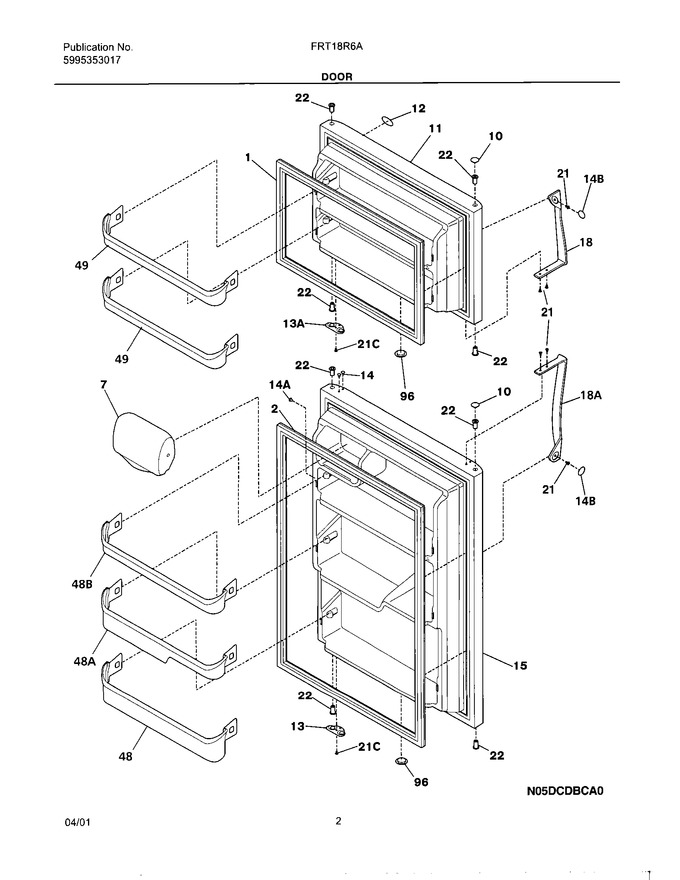

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 241872503 | Gasket-frzr Door,white ,magnetic (Replaces: 240370905) |
|
Immediately | $ 137.66 | ||||
| 2 | 242193213 | Gasket-refr Door,white ,magnetic (Replaces: 240370906) |
|
Immediately | $ 190.22 | ||||
| 7 | 240337712 | Door-dairy,w/o Graphics ,clear (Replaces: 240337703) |
|
Immediately | $ 36.41 | ||||
| 10 | 240381301 | Plug-button,hinge Brg Hole ,white ,(2) |
|
Immediately | $ 18.95 | ||||
| 11 | 240409901 | Panel-frzr Door,white ,complete Assy |
|
$ 495.92 | |||||
| 12 | 241808601 | Label-nameplate,white (Replaces: 240416301) |
|
$ 12.69 | |||||
| 13 | 240312421 | Door Stop,white ,ref (Replaces: 240312403) |
|
$ 15.17 | |||||
| 13 | 240312414 | Door Stop,white ,frzr (Replaces: 240312404) |
|
$ 19.13 | |||||
| 14 | 240494001 | Plug-button, White (Replaces: 218915701) |
|
Immediately | $ 18.20 | ||||
| 14 | 240383601 | Plug-button,white ,door Handle |
|
$ 8.77 | |||||
| 14 | 240494001 | Plug-button,screw Type ,white (Replaces: 240428301) |
|
Immediately | $ 18.20 | ||||
| 15 | 240410001 | Panel-refr Door,white ,complete Assy |
|
$ 175.30 | |||||
| 18 | 240339201 | Handle-door,white Refr-lh/frzr-rh |
|
$ 81.85 | |||||
| 18 | 5304492832 | Handle-door,white Refr-rh/frzr-lh (Replaces: 240339206) |
|
$ 105.61 | |||||
| 21 | 5304515677 | Screw,truss Hd Quad ,10-16 X .500 (Replaces: 240383401) |
|
Immediately | $ 19.23 | ||||
| 21 | 218252201 | Screw,8 Truss Hd ,10-32ca X 0.500 (Replaces: 218252200) |
|
Immediately | $ 14.18 | ||||
| 22 | 5304507146 | Bearing-hinge,natural Color ,(8) (Replaces: 240311201) |
|
Immediately | $ 7.59 | ||||
| 48 | 240338001 | Bin-door,ref |
|
Immediately | $ 34.96 | ||||
| 48 | 240338101 | Bin-door,pseudo ,bottom |
|
Immediately | $ 52.37 | ||||
| 48 | 240337901 | Bin-door,ref |
|
Immediately | $ 52.13 | ||||
| 49 | 240495804 | Bin-door,frzr (Replaces: 240337801) |
|
Immediately | $ 43.29 | ||||
| 96 | 240345501 | Plug-foam Hole,white |
|
- |
