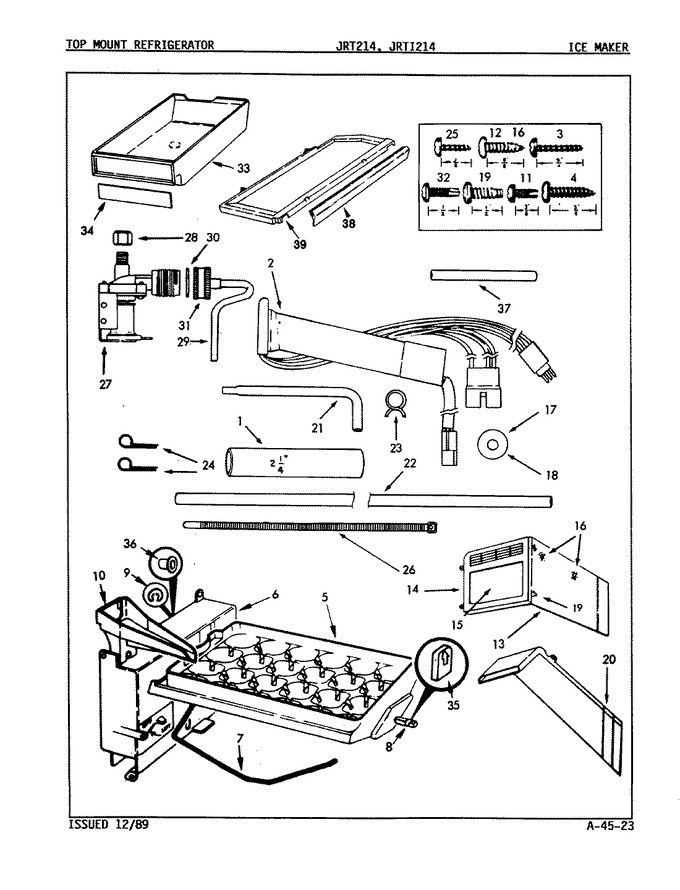

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Doors
02 - Freezer Compartment
03 - Fresh Food Compartment
04 - Ice Maker
05 - Unit Compartment & System
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 58461-3 | Tube, Fill | - |
|
- | ||||
| 2 | 60198-1 | Wire Harness | - |
|
- | ||||
| 3 | WP67006908 | Screw (Replaces: 400022-1) | - |
|
Immediately | $ 7.16 | |||
| 4 | 400018-103 | Screw | - |
|
- | ||||
| 5 | WP59688-1A | Tray, Ice (Replaces: 59688-1) | - |
|
$ 18.71 | ||||
| 6 | RA43714-8 | Mechanism, Ice Maker | - |
|
- | ||||
| 7 | 60619-1 | Sensor Arm | - |
|
- | ||||
| 8 | 65319-1 | Shaft, Drive | - |
|
- | ||||
| 9 | 58706-1 | Ring, Retainer | - |
|
- | ||||
| 10 | 53748-1 | Spout, Fill | - |
|
- | ||||
| 11 | 405009-103 | Screw | - |
|
- | ||||
| 12 | 400018-103 | Screw | - |
|
- | ||||
| 13 | 60426-1 | Side, Ice Maker Enclosure | - |
|
- | ||||
| 14 | 65070-1 | Front, Ice Maker Enclosure | - |
|
- | ||||
| 15 | 68133-16 | Trim Front, Ice Maker Enclos | - |
|
- | ||||
| 16 | 400018-103 | Screw | - |
|
- | ||||
| 17 | 420051-900 | Washer | - |
|
- | ||||
| 18 | 420052-900 | Washer | - |
|
- | ||||
| 19 | W11233072 | Screw (Replaces: 402019-103) | - |
|
Immediately | $ 12.62 | |||
| 20 | 65759-6 | Im Duct | - |
|
- | ||||
| 21 | 66759-1 | Tube | - |
|
- | ||||
| 22 | WPB5705307 | Tubing 62`` (Replaces: 55602-22) | - |
|
$ 11.19 | ||||
| 23 | 60333-1 | Clamp, Spring | - |
|
- | ||||
| 24 | W10833902 | Clamp, Tubing (Replaces: 53516-8) | - |
|
$ 9.89 | ||||
| 25 | W11233072 | Screw (Replaces: 400016-1) | - |
|
Immediately | $ 12.62 | |||
| 26 | WPW10339879 | Clamp (Replaces: 57576-1) | - |
|
$ 7.11 | ||||
| 27 | 4318047 | Valve, Water (Replaces: 60184-1) | - |
|
Immediately | $ 66.68 | |||
| 28 | WP627018 | Nut, Compression (1/4``) (Replaces: 55419-1) | - |
|
$ 9.87 | ||||
| 29 | 60219-1 | Inlet Tubing Assembly | - |
|
- | ||||
| 30 | 24685-5 | Washer, Inlet Tubing Nut | - |
|
- | ||||
| 31 | 24685-1 | Nut, Inlet Tubing | - |
|
- | ||||
| 32 | 401018-1 | Screw | - |
|
- | ||||
| 33 | 60588-1 | Pan, Storage | - |
|
- | ||||
| 34 | 68134-10 | Insert | - |
|
- | ||||
| 35 | 65318-1 | Clip, Drive Shaft | - |
|
$ 23.83 | ||||
| 36 | 65317-1 | Spacer | - |
|
- | ||||
| 37 | 65001-8 | Tubing | - |
|
- | ||||
| 38 | 63491-1 | Ice Deflector | - |
|
- | ||||
| 39 | 60615-1 | Ice Director | - |
|
- |
