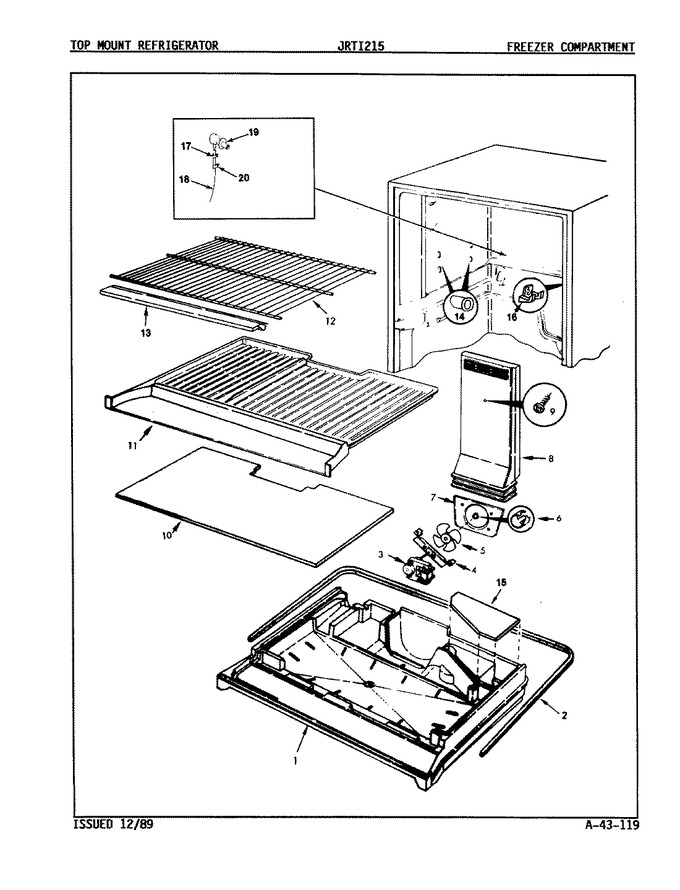

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 66607-1 | Tray, Styrofoam Mullion | - |
|
- | ||||
| 2 | 66325-30 | Seal | - |
|
- | ||||
| 3 | 406062-1 | Screw | - |
|
- | ||||
| 3 | WP61004888 | Motor, Evaporator Fan (Replaces: 54482-10) | - |
|
Immediately | $ 104.99 | |||
| 4 | 64856-1 | Bracket, Fan Motor | - |
|
- | ||||
| 4 | 29675-30 | Ground Wire | - |
|
- | ||||
| 4 | 400015-12 | Screw | - |
|
- | ||||
| 4 | 60565-1 | Wire Harness | - |
|
- | ||||
| 5 | 64359-1 | Blade, Evaporator Fan | - |
|
- | ||||
| 6 | 420092-900 | Washer, Spring | - |
|
- | ||||
| 7 | 60608-2 | Orifice, Fan Blade | - |
|
- | ||||
| 8 | 66044-3 | Tunnel, Air | - |
|
- | ||||
| 9 | W11233072 | Screw (Replaces: 400015-31) | - |
|
Immediately | $ 12.62 | |||
| 10 | 66403-2 | Cover, Evaporator | - |
|
- | ||||
| 11 | 66478-1 | Bottom, Frz. | - |
|
- | ||||
| 12 | 60438-16 | Shelf, Wire | - |
|
- | ||||
| 13 | 60414-38 | Trim,freezer Shelf | - |
|
- | ||||
| 14 | 60313-1 | Cup, Shelf | - |
|
- | ||||
| 15 | 66480-2 | Cover, Plenum | - |
|
- | ||||
| 16 | 66101-1 | Stud, Shelf | - |
|
- | ||||
| 16 | 400019-1 | Screw | - |
|
- | ||||
| 17 | WPM0114003 | Clamp, Spring (Replaces: 60333-4) | - |
|
$ 9.95 | ||||
| 18 | WPB5705307 | Tubing, Valve To Grommet (Replaces: 67579-7) | - |
|
$ 11.19 | ||||
| 19 | 68307-1 | Grommet, Water Entry | - |
|
- | ||||
| 20 | 68327-1 | Pan, Ice | - |
|
- | ||||
| 20 | W10833902 | Clamp, Tubing (Replaces: 53516-8) | - |
|
$ 9.89 | ||||
| 20 | 68412-2 | Duct, Air (19` & 21` Models) | - |
|
- | ||||
| 20 | WP33002917 | Screw (Replaces: 65275-1) | - |
|
Immediately | $ 6.90 |
