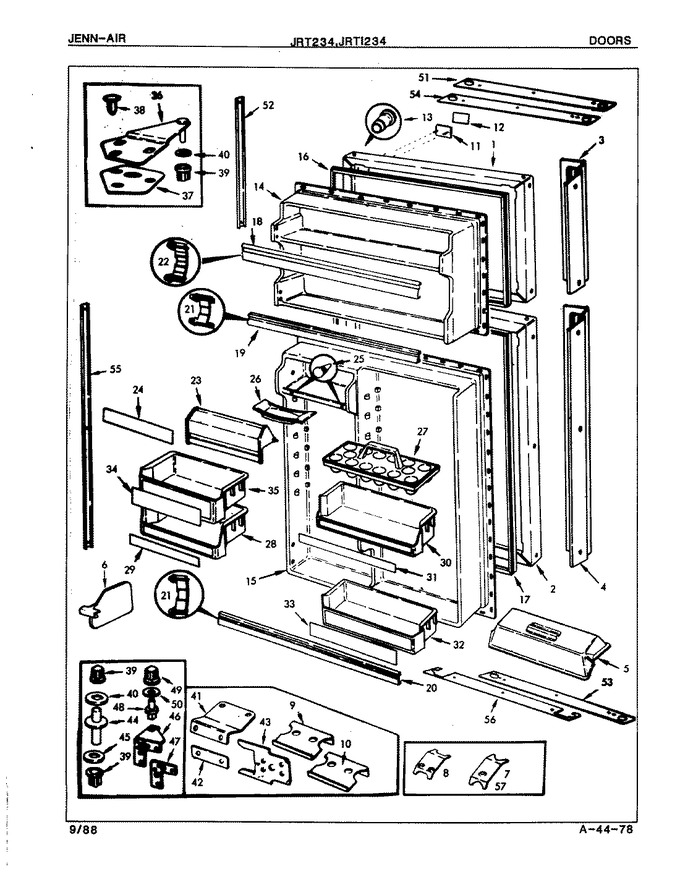

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 66666-1-WW | Panel, Frz. Door (wht) | - |
|
- | ||||
| 2 | 66672-1-WW | Panel, F.f. Door (wht) | - |
|
- | ||||
| 2 | 495036-900 | Plug Button | - |
|
- | ||||
| 2 | RA95056-1 | Door Insulation Kit | - |
|
- | ||||
| 3 | 66706-1 | Door Handle, Freezer Door | - |
|
- | ||||
| 4 | 66704-1 | Door Handle | - |
|
- | ||||
| 5 | 66522-4 | Organizer, Shelf | - |
|
- | ||||
| 6 | 65275-4 | Screw | - |
|
- | ||||
| 6 | 66645-2 | Organizer | - |
|
- | ||||
| 7 | 56209-3 | Clip, Stop Screw | - |
|
- | ||||
| 8 | 60123-2 | Clip, Stop Screw | - |
|
- | ||||
| 9 | 60030-1 | Door Stop | - |
|
- | ||||
| 10 | 60030-2 | Door Stop | - |
|
- | ||||
| 10 | 9986-108 | Screw | - |
|
- | ||||
| 11 | 66641-1 | Bezel, Nameplate | - |
|
- | ||||
| 12 | 66646-1 | Insert | - |
|
- | ||||
| 13 | 65211-1 | Retainer, Nameplate | - |
|
- | ||||
| 14 | 65936-8 | Liner, Door | - |
|
- | ||||
| 15 | 9986-12 | Screw,door Liner | - |
|
- | ||||
| 15 | 65931-4 | Liner, Door | - |
|
- | ||||
| 16 | 66199-7 | Gasket, Door | - |
|
- | ||||
| 17 | 66199-8 | Gasket, Door | - |
|
- | ||||
| 18 | 66637-27 | Shelf Trim | - |
|
- | ||||
| 19 | WP61003045 | Trim, Door Shelf (Replaces: 65151-248) | - |
|
$ 129.55 | ||||
| 20 | WP61003045 | Trim, Door Shelf (Replaces: 65151-250) | - |
|
$ 129.55 | ||||
| 21 | WP65245-1 | Retainer, Shelf Trim (Replaces: 65245-1) | - |
|
$ 9.39 | ||||
| 22 | 65246-1 | Retainer | - |
|
$ 5.04 | ||||
| 23 | 60406-37 | Door, Dairy | - |
|
- | ||||
| 24 | 60573-40 | Trim, Dairy Door | - |
|
- | ||||
| 25 | 28272-6 | Bumper, Door | - |
|
- | ||||
| 26 | 29936-2 | Tray, Butter | - |
|
- | ||||
| 27 | 60066-9 | Tray, Egg | - |
|
- | ||||
| 28 | 60037-37 | Shelf, Pick-off | - |
|
- | ||||
| 29 | 68130-22 | Insert | - |
|
- | ||||
| 30 | 60037-40 | Door Shelf | - |
|
- | ||||
| 31 | 68130-24 | Insert | - |
|
- | ||||
| 32 | 60037-39 | Door Shelf | - |
|
- | ||||
| 33 | 68130-40 | Insert | - |
|
- | ||||
| 34 | 68130-21 | Insert | - |
|
- | ||||
| 35 | 60037-35 | Door Shelf | - |
|
- | ||||
| 36 | 53709-18 | Door Hinge, Upper | - |
|
- | ||||
| 36 | 65003-6 | Cover, Upper Hinge (wht) | - |
|
- | ||||
| 37 | 65031-1 | Shim, Upper Hinge | - |
|
- | ||||
| 38 | 56144-13 | Plug Button, Upper Hinge (wht) | - |
|
- | ||||
| 39 | 66036-1 | Bushing,top/center Hinge | - |
|
- | ||||
| 40 | WP52185-1 | Washer (Replaces: 52185-1) | - |
|
Immediately | $ 9.47 | |||
| 40 | WP3-24838-048 | Screw (Replaces: 9986-87) | - |
|
$ 7.00 | ||||
| 41 | 60031-2 | Door Hinge, Center | - |
|
- | ||||
| 42 | 60034-1 | Spacer, Center Hinge | - |
|
- | ||||
| 43 | 9987-107 | Screw, Center Hinge Mtg | - |
|
- | ||||
| 43 | 60622-1 | Tapping Plate | - |
|
- | ||||
| 44 | 60035-4 | Pin, Center Hinge | - |
|
- | ||||
| 45 | WP52185-1 | Washer (Replaces: 52185-1) | - |
|
Immediately | $ 9.47 | |||
| 46 | 403062-5 | Screw | - |
|
- | ||||
| 46 | 60630-8 | Door Hinge, Lower | - |
|
- | ||||
| 47 | 60626-1 | Shim, Lower Hinge | - |
|
- | ||||
| 48 | 53672-1 | Pin, Lower Hinge | - |
|
- | ||||
| 49 | 66034-1 | Bushing, Lower Hinge | - |
|
$ 19.76 | ||||
| 50 | 56186-10 | Plug Button, (white) | - |
|
- | ||||
| 50 | 54233-2 | Washer | - |
|
- | ||||
| 51 | 66695-1 | Trim | - |
|
- | ||||
| 52 | 66692-1 | Trim Perimeter, Frzr (side) | - |
|
- | ||||
| 53 | 66698-2 | Trim | - |
|
- | ||||
| 54 | 66695-1 | Trim | - |
|
- | ||||
| 55 | 66690-1 | Trim Perimeter, Refrig. (side) | - |
|
- | ||||
| 56 | 66698-1 | Trim | - |
|
- | ||||
| 56 | 400015-12 | Screw | - |
|
- | ||||
| 57 | 66637-15 | Cover | - |
|
- | ||||
| 57 | 56209-2 | Clip | - |
|
- |
