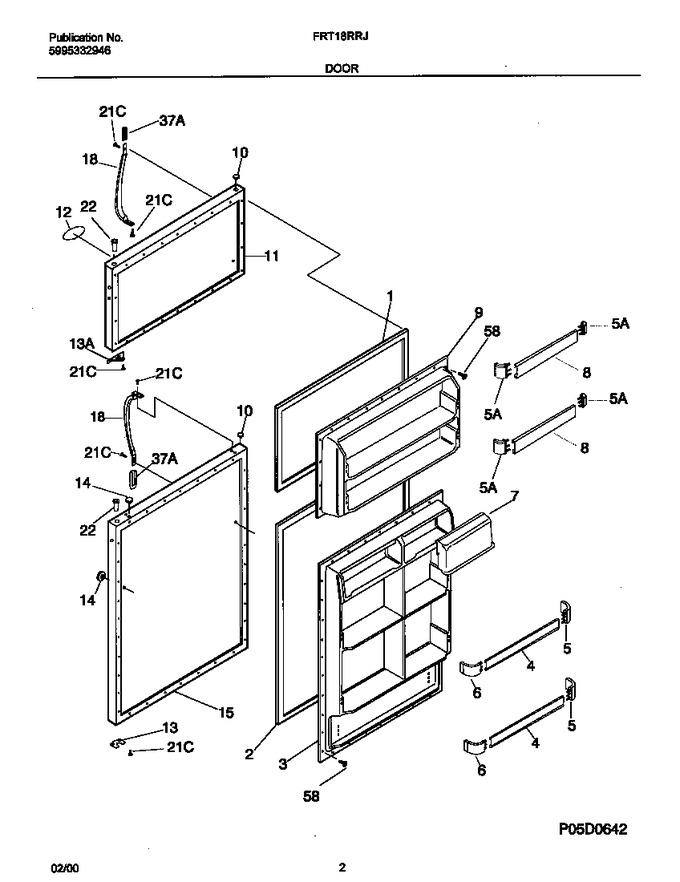

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215608916		Gasket-frzr Door, White, Magnetic				$ 258.30
2	5303207345		Gasket-refr Door, White, Magnetic   (Replaces: 218730605)			Immediately	$ 188.19
3	218360001		Panel-inner Door, Refr				$ 453.98
4	215516220		Rack-door,20.81`` X 2.04``   (Replaces: 218763639)				$ 54.58
5	218809801		Support-door Rack, Rh		Appelez-nous	-
5	218758602		Support-door Rack,rh/lh			Immediately	$ 23.39
6	218809701		Support-door Rack, Lh		Appelez-nous	-
7	218287908		Door-dairy,10.71`` Wide ,clear ,no Graphics				$ 61.01
8	218763638		Rack-door,22.36`` X 2.04``		Appelez-nous	-
9	218360101		Panel-inner Door, Frzr		Appelez-nous	-
10	5303001308		Plug-button, Almond, Hinge Brg Hole		Appelez-nous	-
11	5303917807		Panel-frzr Door, Almond, W/insulation		Appelez-nous	-
12	218917602		Label-nameplate,almond		Appelez-nous	-
13	218800300		Door Stop,plated		Appelez-nous	-
13	218249002		Door Stop, Almond, Frzr Section				$ 47.88
14	218915702		Plug-button,almond		Appelez-nous	-
15	5303917808		Panel-refr Door, Almond, W/insul & Brace		Appelez-nous	-
18	218668002		Handle-door, Almond		Appelez-nous	-
21	218252201		Screw,8 Truss Hd ,10-32ca X 0.500   (Replaces: 218252200)			Immediately	$ 14.18
22	218519300		Bearing-hinge				$ 14.60
37	218676004		Band-decorative,satin Aluminum ,handle Trim				$ 57.60
37	215870630		Trim-handle,2.47`` ,almond ,w/satin Al Band		Appelez-nous	-
58	218749600		Screw,10 Pan Hd ,8-18 X .5				$ 5.15
*40720	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
