SELECT A DIAGRAM

01 - Doors


02 - Freezer Compartment


03 - Fresh Food Compartment


04 - Ice Maker Section


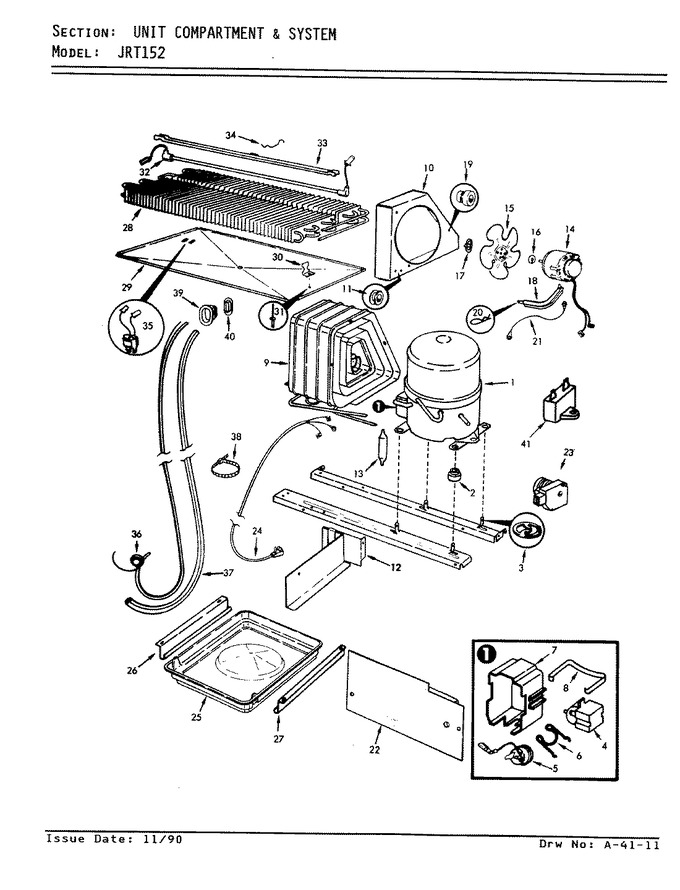

05 - Unit Compartment & System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	66666-2-AM		Panel, Frz. Door (alm)	-	Appelez-nous	-
1	66666-2-WW		Panel, Frz. Door (wht)	-	Appelez-nous	-
2	RA95056-1		Door Insulation Kit	-	Appelez-nous	-
2	495036-900		Plug Button	-	Appelez-nous	-
2	66672-1-AM		Outer Panel	-	Appelez-nous	-
2	66672-1-WW		Panel, F.f. Door (wht)	-	Appelez-nous	-
3	68200-1		Handle, Frz. Door	-	Appelez-nous	-
4	68199-1		Handle, F.f. Door	-	Appelez-nous	-
5	64097-10		Organizer, Shelf	-	Appelez-nous	-
6	65275-4		Screw	-	Appelez-nous	-
6	66645-5		Shelf, Pick-off	-	Appelez-nous	-
7	56209-3		Clip, Stop Screw	-	Appelez-nous	-
8	60123-2		Clip, Stop Screw	-	Appelez-nous	-
9	60030-6		Door Stop, Frzr Door	-	Appelez-nous	-
10	9986-108		Screw	-	Appelez-nous	-
10	60030-5		Door Stop, F.f. Door	-	Appelez-nous	-
11	66641-1		Bezel, Nameplate	-	Appelez-nous	-
12	68061-4		Insert, Nameplate	-	Appelez-nous	-
13	65211-1		Retainer, Nameplate	-	Appelez-nous	-
14	65936-4		Liner, Door	-	Appelez-nous	-
15	9986-12		Screw,door Liner	-	Appelez-nous	-
15	68721-1		Inner Panel	-	Appelez-nous	-
16	66199-7		Gasket, Door	-	Appelez-nous	-
17	66199-8		Gasket, Door	-	Appelez-nous	-
18	WP61003045		Trim, Shelf   (Replaces: 68410-13)	-			$ 129.55
19	WP61003045		Trim, Shelf   (Replaces: 68410-13)	-			$ 129.55
20	WP61003045		Trim, Shelf   (Replaces: 68410-15)	-			$ 129.55
21	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)	-			$ 9.39
22	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)	-			$ 9.39
23	66184-356		Door, Dairy	-	Appelez-nous	-
24	Y06100015		Dairy Door	-	Appelez-nous	-
25	66637-41		Cover, P.o.	-	Appelez-nous	-
26	29936-2		Tray, Butter	-	Appelez-nous	-
27	60066-13		Tray, Egg	-	Appelez-nous	-
28	60037-37		Shelf, Pick-off	-	Appelez-nous	-
29	68130-48		Trim, Pick-off	-	Appelez-nous	-
30	60037-40		Door Shelf	-	Appelez-nous	-
31	68130-50		Trim	-	Appelez-nous	-
32	60037-39		Door Shelf	-	Appelez-nous	-
33	68130-51		Trim	-	Appelez-nous	-
34	68130-47		Trim	-	Appelez-nous	-
35	60037-35		Door Shelf	-	Appelez-nous	-
36	53709-18		Door Hinge, Upper	-	Appelez-nous	-
36	66875-1		Cover, Upper Hinge (chrome)	-	Appelez-nous	-
37	65031-1		Shim, Upper Hinge	-	Appelez-nous	-
38	56144-9		Plug Button, Hinge Screw (alm)	-	Appelez-nous	-
38	56144-13		Plug Button, Upper Hinge (wht)	-	Appelez-nous	-
39	66036-1		Bushing,top/center Hinge	-	Appelez-nous	-
40	WP52185-1		Washer   (Replaces: 52185-1)	-		Immediately	$ 9.47
40	WP3-24838-048		Screw   (Replaces: 9986-87)	-			$ 7.00
41	60031-2		Door Hinge, Center	-	Appelez-nous	-
42	60034-1		Spacer, Center Hinge	-	Appelez-nous	-
43	9987-107		Screw, Center Hinge Mtg	-	Appelez-nous	-
43	60622-1		Tapping Plate	-	Appelez-nous	-
44	60035-4		Pin, Center Hinge	-	Appelez-nous	-
45	WP52185-1		Washer   (Replaces: 52185-1)	-		Immediately	$ 9.47
46	403100-801		Screw	-	Appelez-nous	-
46	60630-8		Door Hinge, Lower	-	Appelez-nous	-
47	60626-1		Shim, Lower Hinge	-	Appelez-nous	-
47	65790-3		Tapping Plate	-	Appelez-nous	-
47	403100-801		Screw	-	Appelez-nous	-
48	53672-1		Pin, Lower Hinge	-	Appelez-nous	-
49	66034-1		Bushing, Lower Hinge	-			$ 19.76
50	56186-10		Plug Button, (white)	-	Appelez-nous	-
50	56186-6		Plug Button, (almond)	-	Appelez-nous	-
50	54233-2		Washer	-	Appelez-nous	-
51	68669-1		P. Trim, Top	-	Appelez-nous	-
52	68196-1		Trim, Side (freezer)	-	Appelez-nous	-
53	68670-1		Trim, Btm.	-	Appelez-nous	-
54	68669-1		P. Trim, Top	-	Appelez-nous	-
55	68195-1		Trim, Side(refrigerator)	-	Appelez-nous	-
56	65275-15		Screw	-	Appelez-nous	-
56	65275-26		Screw (no.12 X 5/8``)	-	Appelez-nous	-
56	68670-1		Trim, Btm.	-	Appelez-nous	-
57	56209-2		Clip	-	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
