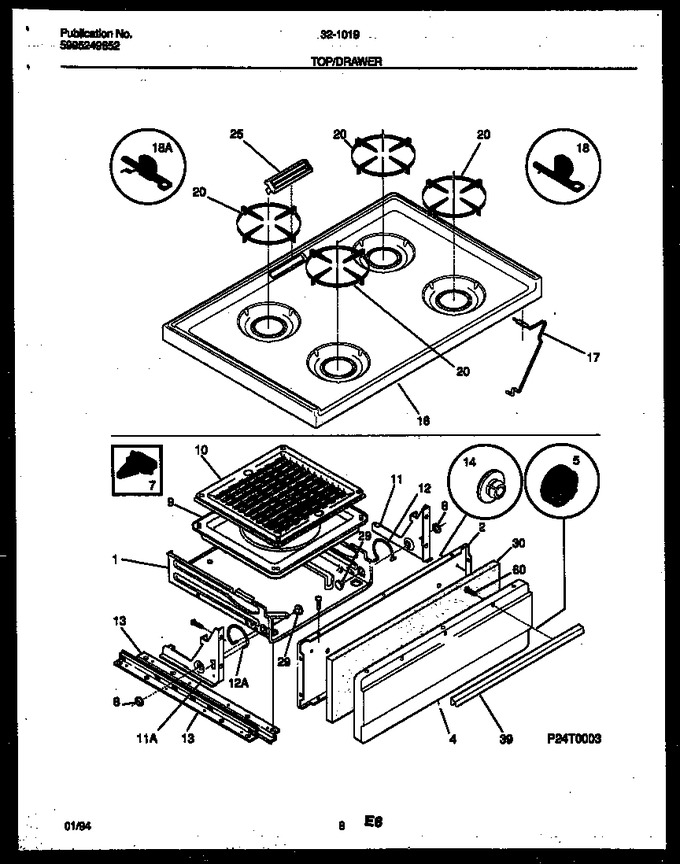

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3018608		Drawer-broiler		Appelez-nous	-
2	3202803		Liner, Broiler Door		Appelez-nous	-
4	316056206		Panel,drawer ,almond		Appelez-nous	-
5	3131387		Fastener-spacer, Push-in Nut, Nylon		Appelez-nous	-
7	3018610		Glide-broiler				$ 29.40
8	3131386		Nut, Push-on, (2)		Appelez-nous	-
9	5303013568		Pan-broiler		Appelez-nous	-
10	5303131356		Insert-broiler Pan		Appelez-nous	-
11	316066301		Bracket-hinge, Broiler Rh		Appelez-nous	-
12	3018619		Spring-broiler, Rh		Appelez-nous	-
13	3131153		Channel-broiler		Appelez-nous	-
14	3206216		Plug-button, Glide		Appelez-nous	-
16	3206215		Main Top, Almond		Appelez-nous	-
17	316066900		Rod-maintop Support				$ 66.31
18	08067747		Bracket-hinge,main Top Rh		Appelez-nous	-
20	316055800		Grate, (4)				$ 43.99
25	3131190		Cover-vent		Appelez-nous	-
29	3018614		Pin-hinge		Appelez-nous	-
30	5303131258		Insulation, Broiler Drawer		Appelez-nous	-
39	3201268		Handle-drawer, Brushed Chrome		Appelez-nous	-
60	5303281651		Screw-drawer Handle, 8 Truss Head, 10-16 X 1/2		Appelez-nous	-
*93853	5303281584		Screw, Truss Head, 8-18 X 1/2		Appelez-nous	-
11A	316066300		Bracket-hinge, Broiler Lh, (4)		Appelez-nous	-
12A	3018618		Spring-broiler, Lh		Appelez-nous	-
18A	08067746		Bracket-hinge,main Top Lh		Appelez-nous	-
4A	08067785		Screw, Hex Washer Head, 8-18(ab) X 1/2 (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
