SELECT A DIAGRAM

01 - Cover


02 - Doors


03 - Cabinet


04 - Shelves


05 - System

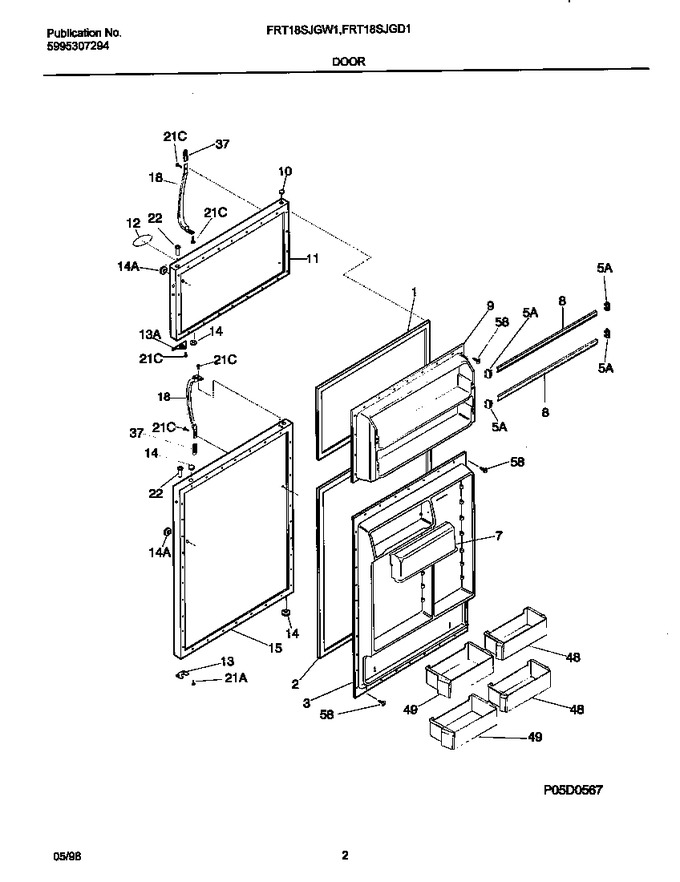

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215608906		Gasket-frzr Door, Almond, Magnetic		Appelez-nous	-
2	5303207345		Gasket-refr Door, Almond, Magnetic   (Replaces: 218730606)			Immediately	$ 188.19
3	218360701		Panel-inner Door, Refr		Appelez-nous	-
5	218758602		Support-door Rack, Rh/lh   (Replaces: 218758601)			Immediately	$ 23.39
7	5303308341		Door-dairy,12.96`` Wide				$ 97.02
8	215516220		Rack-door, (2)   (Replaces: 218763613)				$ 54.58
9	218360101		Panel-inner Door, Frzr		Appelez-nous	-
10	5303001308		Plug-button, Almond, Hinge Brg Hole		Appelez-nous	-
11	5303917807		Panel-frzr Door, Almond, W/insulation		Appelez-nous	-
12	218425005		Nameplate Assy, Almond		Appelez-nous	-
12	218364002		Frame-nameplate, Almond		Appelez-nous	-
13	218249002		Door Stop, Almond, Frzr Section				$ 47.88
13	218800300		Door Stop,plated		Appelez-nous	-
14	5308000181		Plug-button, Almond		Appelez-nous	-
14	218110902		Plug-button, Almond, Refr Door Front, Upper		Appelez-nous	-
15	5303917808		Panel-refr Door, Almond, W/insul & Brace		Appelez-nous	-
18	218668002		Handle-door, Almond		Appelez-nous	-
21	218251900		Screw,8 Oval Head ,10-32ca X .625 ,cross Recessed				$ 10.55
21	218252201		Screw,8 Truss Hd ,10-32ca X .5   (Replaces: 218252200)			Immediately	$ 14.18
22	218519300		Bearing-hinge				$ 14.60
37	215870620		Trim-handle, 2.47``, Almond, W/chrome Band		Appelez-nous	-
48	215441811		Bin-door		Appelez-nous	-
49	215441502		Bin-door,gallon   (Replaces: 215441513)				$ 176.87
58	216858001		Screw, Truss Head, 8-15a X 0.500   (Replaces: 218699800)			Immediately	$ 10.85
*00320	215008608		Label-nameplate,almond		Appelez-nous	-
*00322	215518000		Magnet-nameplate		Appelez-nous	-
*00323	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91

    View Diagram in Separate Window       Print Part List
