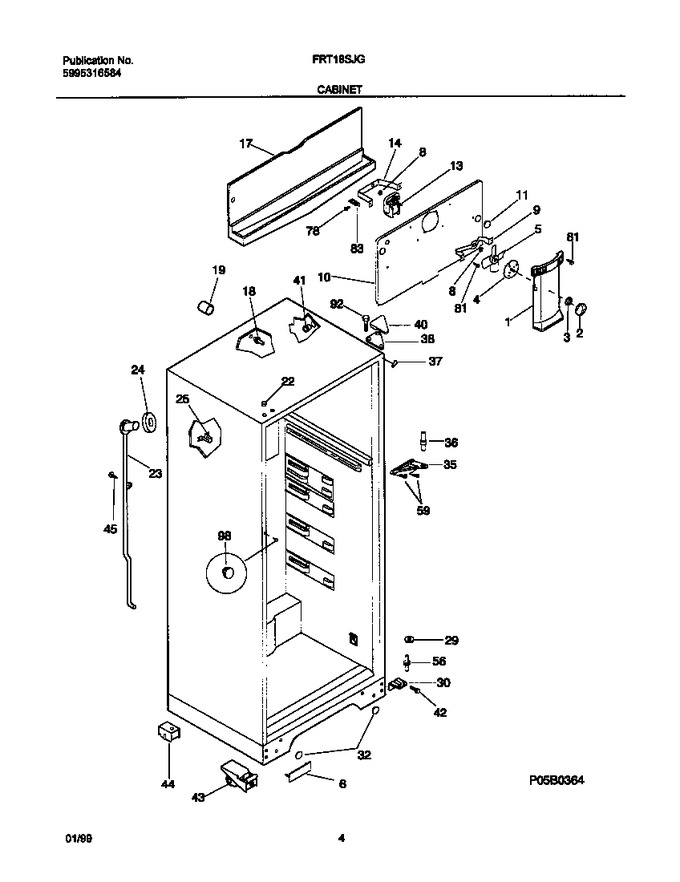

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218672501		Cover-fan		Appelez-nous	-
2	5303307351		Knob, Damper Control				$ 32.71
3	5303001028		Nut,push-on		Appelez-nous	-
4	218722200		Damper-fan Cover, Black				$ 59.80
5	5308000010		Fan Blade, Black   (Replaces: 218649000)			Immediately	$ 49.03
6	218448302		Cover, Almond, Lwr Hinge Hole		Appelez-nous	-
8	5300157666		Bushing - Motor Mtg, (2)		Appelez-nous	-
9	5303205118		Bracket-motor Mtg, Front		Appelez-nous	-
10	3206451		Cover-evap Coil		Appelez-nous	-
11	5303208309		Plug-hole, Factory Test				$ 45.50
13	5300158289		Motor-evap Fan   (Replaces: 218878701)			Immediately	$ 149.94
14	5303322992		Bracket-motor Mtg, Rear				$ 46.57
17	218725700		Trough-drain		Appelez-nous	-
18	215245000		Support - Evap Cover, (2)				$ 25.20
19	5303001198		Tube-rubber		Appelez-nous	-
22	215774911		Plug-button, Almond, Upr Hinge Holes		Appelez-nous	-
23	5303269702		Tube-drain, W/seal Ring				$ 104.63
24	5303207353		Seal Ring, Drain Tube				$ 6.81
25	215774100		Spout-drain Tube, W/mounting Pins		Appelez-nous	-
30	3206136		Bracket-lower Hinge		Appelez-nous	-
32	215217703		Plug-button,almond, Cabinet Base, (2)		Appelez-nous	-
35	218220102		Bracket-ctr Hinge, Almond		Appelez-nous	-
36	218251300		Pin-center Hinge				$ 59.54
37	5303321082		Trim-cabinet Corner, Almond		Appelez-nous	-
38	3206100		Bracket-upper Hinge		Appelez-nous	-
39	5303001037		Shim - Upper Hinge				$ 12.39
40	3206105		Cover-upper Hinge, Almond				$ 60.90
41	5304509705		Grommet, Shelf/rod Mtg, Rh   (Replaces: 5303001609)				$ 10.01
42	215880100		Screw-hinge Mtg, Hex Washer Head, 1/4-20 X 0.685, (2)		Appelez-nous	-
43	218724000		Roller Assy, Front, Complete				$ 227.18
44	5303283014		Roller Assy, Metal Housing		Appelez-nous	-
45	5304455651		Screw   (Replaces: 5303001343)				$ 14.41
56	218220300		Pin-lower Hinge		Appelez-nous	-
58	5308002748		Screw		Appelez-nous	-
59	240442708		Screw,pan Hd ,10-32 X 0.625 ,hinge/mullion,thread Formin   (Replaces: 218188000)				$ 8.34
78	5303274237		Screw-bracket, Hex Washer Head, 8-32(ca) X 1/2		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
83	5308000107		Bracket-connector				$ 33.23
92	241710601		Screw   (Replaces: 5303001479)				$ 13.46
98	215099711		Plug-button, Almond, Ctr Hinge Hole		Appelez-nous	-
*39845	3051070		Screw 10-24 X 7/16,hex Washer Head ,10-24 X 7/16,special		Appelez-nous	-
*39846	215882300		Tapping Plate,lower Hinge ,(2)		Appelez-nous	-
*39847	218368500		Shim, Lower Hinge				$ 12.58
*39848	5304500407		Grommet, Shelf Mtg, Lh   (Replaces: 5308009759)			Immediately	$ 6.38
*39849	218703002		ú Roller				$ 25.62
*39850	5308009760		ú Roller		Appelez-nous	-
*39851	5308009761		Bolt-roller, Adj				$ 18.61
*39852	5308009790		ú Spring-roller Adj				$ 4.30
*39853	5303209814		Nut,``u`` Type ,8-15(a) ,fan Mtr Mtg		Appelez-nous	-
*39854	5303305325		Paint, Touch, Up, Almond		Appelez-nous	-
12A	215079000		Plug-harness Hole, Round				$ 8.61
12B	215079100		Plug-wtr Inlet Tube, Round				$ 6.25
29A	5308000007		Washer, .34 X .62 X .05, Nylon		Appelez-nous	-
29B	5308000186		Washer, .34 X .62 X .10, Nylon			Immediately	$ 6.02
29C	5308011326		Washer, .34 X .62 X .02, Nylon				$ 9.87

    View Diagram in Separate Window       Print Part List
