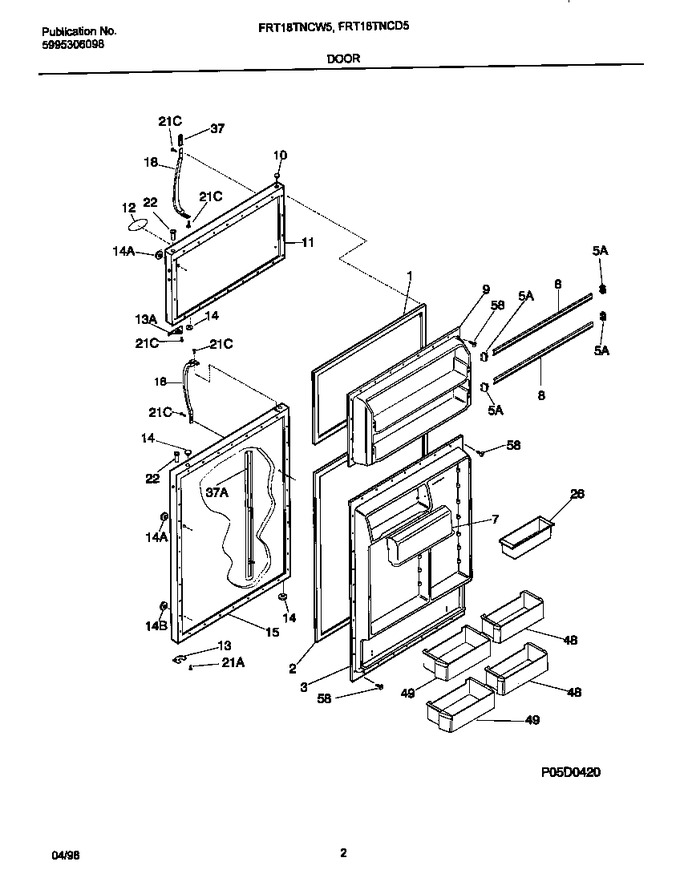

02 - Doors
03 - Cabinet
04 - Shelves/controls
05 - System
06 - Systems
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 215608916 | Gasket-frzr Door, White, Magnetic |
|
$ 258.30 | |||||
| 2 | 5303207345 | Gasket-refr Door, White, Magnetic (Replaces: 218730605) |
|
Immediately | $ 188.19 | ||||
| 3 | 218360701 | Panel-inner Door, Refr |
|
- | |||||
| 5 | 218758602 | Support-door Rack, Rh/lh (Replaces: 218758601) |
|
Immediately | $ 23.39 | ||||
| 7 | 5303308341 | Door-dairy,12.96`` Wide |
|
$ 97.02 | |||||
| 8 | 215516220 | Rack-door, (2) (Replaces: 218763613) |
|
$ 54.58 | |||||
| 9 | 218360101 | Panel-inner Door, Frzr |
|
- | |||||
| 10 | 5308000134 | Plug-button, White, Hinge Brg Hole |
|
$ 5.62 | |||||
| 11 | 5303917795 | Panel-frzr Door, White, With Insulation |
|
- | |||||
| 12 | 218364001 | Frame-nameplate, White |
|
- | |||||
| 13 | 218249001 | Door Stop, White, Frzr Section |
|
$ 82.06 | |||||
| 13 | 218800300 | Door Stop,plated |
|
- | |||||
| 14 | 218074001 | Plug-button, White, Refr Door Front, Lower |
|
$ 13.76 | |||||
| 14 | 240494001 | Plug-button, White (Replaces: 5308000090) |
|
Immediately | $ 18.20 | ||||
| 14 | 240494001 | Plug-button, White, Refr Door Front, Upper (Replaces: 218110901) |
|
Immediately | $ 18.20 | ||||
| 15 | 5303917797 | Panel-refr Door, White, W/insul & Brace |
|
- | |||||
| 18 | 218668001 | Handle-door, White |
|
Immediately | $ 66.16 | ||||
| 21 | 218251900 | Screw,8 Oval Head ,10-32ca X .625 ,cross Recessed |
|
$ 10.55 | |||||
| 22 | 218519300 | Bearing-hinge |
|
$ 14.60 | |||||
| 26 | 3204522 | Container-egg |
|
$ 98.33 | |||||
| 37 | 215870619 | Trim-handle, 2.47``, White, W/chrome Band |
|
$ 72.72 | |||||
| 37 | 215867070 | Trim-handle, 29.84``, White, W/band & Locks |
|
- | |||||
| 41 | 5308000039 | Screw |
|
- | |||||
| 48 | 218592310 | Bin-door, With Trim |
|
$ 127.30 | |||||
| 49 | 215441502 | Bin-door, Gallon, With Trim (Replaces: 218592306) |
|
$ 176.87 | |||||
| 81 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| *22000 | 5303001380 | Screw |
|
- | |||||
| *22002 | 215008607 | Label-nameplate,white |
|
- | |||||
| *22003 | 215518000 | Magnet-nameplate |
|
- | |||||
| *22004 | 5304455852 | Screw,hex Wshr Hd,8-15(a) X 1 (Replaces: 5303207328) |
|
$ 12.76 | |||||
| *22005 | 5303917276 | Insulation-door, Fiberglass, (bulk) |
|
$ 330.91 | |||||
| 21A | 218252201 | Screw,8 Truss Hd ,10-32ca X .5 (Replaces: 218252200) |
|
Immediately | $ 14.18 | ||||
| 21B | 5308007097 | Screw, Cr Truss Head, 8-15a X 0.750 |
|
- | |||||
| 58A | 216858001 | Screw, Truss Head, 8-15a X 0.500 (Replaces: 218699800) |
|
Immediately | $ 10.85 | ||||
| 58B | 5303314236 | Screw, Truss/ph Head, 8-18ab X 0.500 |
|
- |
