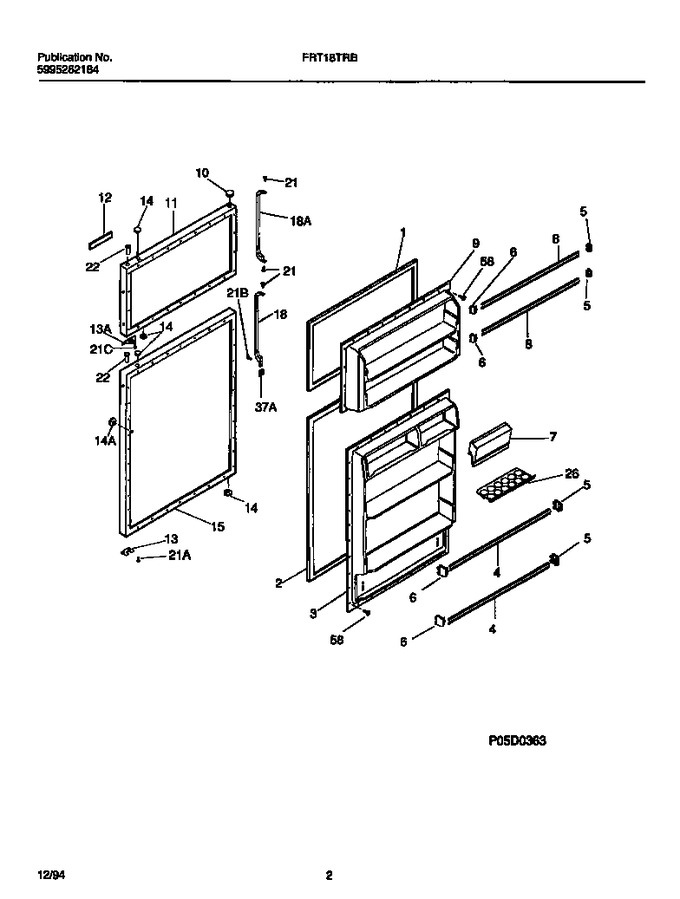

02 - Food And Freezer Doors
03 - Cabinet, Fan Assembly
04 - Shelves, Dividers
05 - Compressor, Condenser, Evaporator
06 - Automatic Ice Maker
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 215608916 | Gasket-frzr Door, White, Magnetic |
|
$ 258.30 | |||||
| 2 | 5303207345 | Gasket-refr Door, White, Magnetic |
|
Immediately | $ 188.19 | ||||
| 3 | 5303207346 | Panel-inner Door, Refr |
|
- | |||||
| 4 | 215516220 | Rack-door (Replaces: 215516212) |
|
$ 54.58 | |||||
| 5 | 5303325990 | Support-door Rack, Rh (Replaces: 5303206644) |
|
Immediately | $ 17.01 | ||||
| 6 | 5303325991 | Support-door Rack, Lh (Replaces: 5303206645) |
|
$ 17.01 | |||||
| 7 | 5303290921 | Door-dairy |
|
- | |||||
| 8 | 215516220 | Rack-door (Replaces: 215516213) |
|
$ 54.58 | |||||
| 9 | 5303207343 | Panel-inner Door, Frzr |
|
- | |||||
| 10 | 5308000134 | Plug-button, White, Hinge Brg Hole |
|
$ 5.62 | |||||
| 11 | 5303917309 | Panel-frzr Door, White, W/insulation |
|
- | |||||
| 12 | 215008601 | Nameplate |
|
- | |||||
| 13 | 5308000255 | Door Stop |
|
$ 42.20 | |||||
| 14 | 240494001 | Plug-button, White, Handle/dr Stop (Replaces: 5308000090) |
|
Immediately | $ 18.20 | ||||
| 15 | 5303917359 | Panel-refr Door, White, W/insulation |
|
- | |||||
| 18 | 215482137 | Handle-door, 17.37``, White |
|
- | |||||
| 21 | 218252001 | Screw, No. 8 Oval Head, 10-32(ca) X 5/8, White |
|
- | |||||
| 22 | 3206153 | Bearing-hinge |
|
- | |||||
| 26 | 215817806 | Tray-egg |
|
$ 13.46 | |||||
| 58 | 5308002748 | Screw |
|
- | |||||
| 13A | 218249001 | Door Stop, White, Frzr |
|
$ 82.06 | |||||
| 14A | 240494001 | Plug-button,white ,refr Door Front , (Replaces: 215352201) |
|
Immediately | $ 18.20 | ||||
| 18A | 215482135 | Handle-door, 17.02``, White |
|
- | |||||
| 21A | 218251900 | Screw, No. 8 Oval Head, 10-32 (ca) X 5/8, Cross Recessed |
|
$ 10.55 | |||||
| 21B | 215733200 | Screw-handle Mtg, Flat Head, 8-18(ab) X 1/2 |
|
- | |||||
| 21C | 218252201 | Screw, Cr Truss Head, 10-32(ca) X 1/2 (Replaces: 218252200) |
|
Immediately | $ 14.18 | ||||
| 37A | 215480205 | Trim-handle, End Cap, White, Refr Door |
|
- | |||||
| 58A | 5303917276 | Insulation, Door, Fiberglass, (bulk) (ni) |
|
$ 330.91 |
