SELECT A DIAGRAM

02 - Door Parts


03 - Cabinet Parts


04 - Cabinet Parts


05 - Shelves And Supports


06 - Shelves And Supports


07 - System And Automatic Defrost Parts

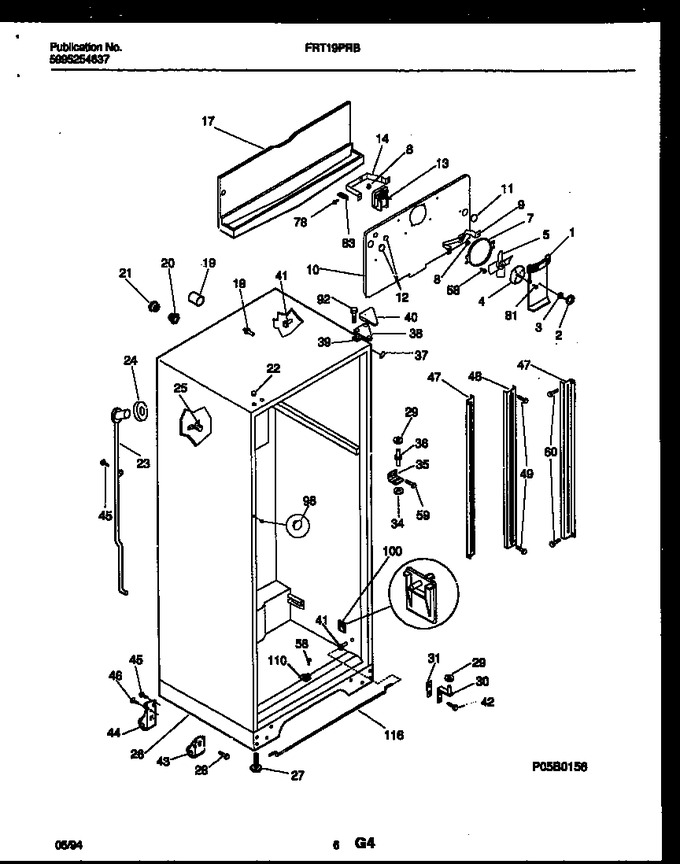

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
44	5308009773		Roller Assy, Rear, (2)		Appelez-nous	-
45	5304455651		Screw   (Replaces: 5303001343)				$ 14.41
46	5308009762		Bolt-roller Mtg, Hex Washer Head, 1/4-28 X 1/2, (2)		Appelez-nous	-
47	215789000		Channel-shelf Mtg, Side, (2)		Appelez-nous	-
48	5303292395		Channel-shelf Mtg, Center, Refr				$ 157.34
49	215507300		Screw-ctr Channel,hex Head,8(ab) X 1-1/2		Appelez-nous	-
58	5308002748		Screw		Appelez-nous	-
59	240442708		Screw-hinge/mullion , 10-32 X 5/8   (Replaces: 218188000)				$ 8.34
60	5304455852		Screw, Hex Washer Head, 8-15(a) X 1   (Replaces: 5303207328)				$ 12.76
78	5303274237		Screw-bracket, Hex Washer Head, 8-32(ca) X 1/2		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
83	5308000107		Bracket-connector				$ 33.23
92	241710601		Screw   (Replaces: 5303001479)				$ 13.46
98	215099711		Plug-button, Almond, Ctr Hinge Hole		Appelez-nous	-
100	5303288973		Support-crisper Cvr				$ 24.41
110	215363501		Support - Crisper Rod				$ 35.02
116	215426702		Rod - Crisper Support		Appelez-nous	-
*99580	5308016571		Plug-button, Liner				$ 4.79

    View Diagram in Separate Window       Print Part List
