SELECT A DIAGRAM

02 - Food And Freezer Doors

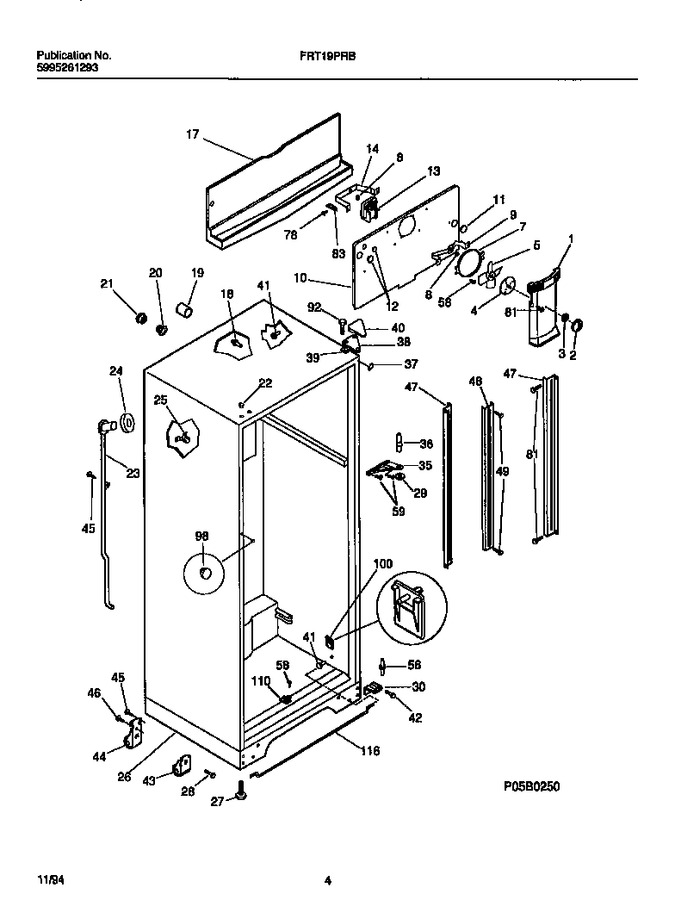

03 - Cabinet, Fan Assembly


04 - Shelves, Dividers


05 - Cooling System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303303440		Cover-fan		Appelez-nous	-
2	5303296360		Knob-damper Control		Appelez-nous	-
3	5303001028		Nut,push-on		Appelez-nous	-
4	5303001331		Damper-fan Cover				$ 31.71
5	5308000010		Fan Blade			Immediately	$ 49.03
7	5308000124		Ring-fan Orifice				$ 53.58
8	5300157666		Bushing - Motor Mtg, (2)		Appelez-nous	-
9	5303205118		Bracket-motor Mtg, Front		Appelez-nous	-
10	5303209636		Screw, Coil Cover, Cr Pan Head, 8, 15(a) X 5/8 (non-il		Appelez-nous	-
10	5308009771		Cover-evap Coil		Appelez-nous	-
11	5303208309		Plug-hole, Factory Test				$ 45.50
12	215079100		Plug-wtr Inlet Tube, Round				$ 6.25
12	215079000		Plug-harness Hole, Round				$ 8.61
13	5300158289		Motor-evap Fan   (Replaces: 218322200)			Immediately	$ 149.94
14	5303205119		Bracket-motor Mtg, Rear		Appelez-nous	-
17	5303001470		Trough-drain		Appelez-nous	-
18	215245000		Support - Evap Cover, (2)				$ 25.20
19	5303001198		Tube-rubber		Appelez-nous	-
20	5303001286		Ferrule-inner		Appelez-nous	-
21	5303001287		Ferrule-outer		Appelez-nous	-
22	5303001389		Plug-button, Almond, Upr Hinge Holes		Appelez-nous	-
23	5303210377		Tube-drain, W/seal Ring				$ 109.31
24	5303207353		Seal Ring, Drain Tube				$ 6.81
25	5308000056		Spout-drain Tube				$ 11.66
25	5303001361		Pin-push, Plastic (non-illustrated)		Appelez-nous	-
26	5303212487		Base-cabinet		Appelez-nous	-
27	5303212922		Screw-leveling				$ 10.71
28	5303271412		Bolt - Roller Adj, Indt Hex Head, 1/4 - 28 X 2-3/4, (2)				$ 37.64
29	5308000007		Washer, .34 X .62 X .05, Nylon		Appelez-nous	-
30	218220200		Bracket-lower Hinge		Appelez-nous	-
30	5303212597		Tapping Plate/gusset, Rh (non-illustrated)		Appelez-nous	-
30	5303212596		Tapping Plate/gusset, Lh (non-illustrated)		Appelez-nous	-
35	218220102		Bracket-ctr Hinge, Almond		Appelez-nous	-
36	218251300		Pin-center Hinge				$ 59.54
37	5303202340		Trim-cabinet Corner, Almond		Appelez-nous	-
38	5308012296		Tapping Plate, Upper Hinge, (2) (non-illustrated)				$ 47.44
38	5308012843		Bracket-upper Hinge				$ 71.47
39	5303001037		Shim - Upper Hinge				$ 12.39
40	5308012933		Cover-upper Hinge, Almond		Appelez-nous	-
41	5304509705		Grommet, Shelf/rod Mtg, Rh   (Replaces: 5303001609)				$ 10.01
41	5304500407		Grommet, Shelf Mtg, Lh (non-illustrated)   (Replaces: 5308009759)			Immediately	$ 6.38
42	5303001320		Screw-hinge/gusset, Hex Washer Head, 1/4-20 X 5/8		Appelez-nous	-
43	5303212490		Roller Assy, Front, (2)		Appelez-nous	-
44	5308009773		Roller Assy, Rear, (2)		Appelez-nous	-
45	5304455651		Screw   (Replaces: 5303001343)				$ 14.41
46	5308009762		Bolt-roller Mtg, Hex Washer Head, 1/4-28 X 1/2, (2)		Appelez-nous	-
47	215789000		Channel-shelf Mtg, Side, (2)		Appelez-nous	-
48	5303292395		Channel-shelf Mtg, Center, Refr				$ 157.34
49	215507300		Screw, Hex Head, 8(ab) X 1-1/2		Appelez-nous	-
56	218220300		Pin-lower Hinge		Appelez-nous	-
58	5308002748		Screw		Appelez-nous	-
59	240442708		Screw-hinge/mullion , 10-32 X 5/8   (Replaces: 218188000)				$ 8.34
78	5303274237		Screw-bracket, Hex Washer Head, 8-32(ca) X 1/2		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
83	5308000107		Bracket-connector				$ 33.23
92	241710601		Screw   (Replaces: 5303001479)				$ 13.46
98	215099711		Plug-button, Almond, Ctr Hinge Hole		Appelez-nous	-
100	5303288973		Support, Crisper Cover				$ 24.41
110	215363501		Support - Crisper Rod				$ 35.02
116	215426702		Rod - Crisper Support		Appelez-nous	-
*40681	5303305325		Touch-up Paint, Almond		Appelez-nous	-
*40683	5308016571		Plug-button, Cabinet Liner				$ 4.79

    View Diagram in Separate Window       Print Part List
