Diagram # Part Number Description Series Availability Ships Price Add to Cart
9 381T077F04-89 Liner-broilr Door-char Gray Lot 1-4 Appelez-nous -
10 550T041P01 Pin, Hinge (2) Appelez-nous -
11 539T005F01-89 Pan-broilr-char Gray Lot 1-4 Appelez-nous -
13 106T027P02 Button-glide .426 Dia. (4) Appelez-nous -
14 136T281F02 Chanl-glide Lwr Lot 1-8 Appelez-nous -
15 136T282F02 Chanl-glide Upper Lot 1-8 Appelez-nous -
16 106T028P01 Button-guide (3) Appelez-nous -
*21383 636T069P07 Screw-broilr Assy (4) 8a X 1/2`` Ph Tr Hd Lot 1, 6 Appelez-nous -
8A 328T015P15 Insulation (non-illustrated) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

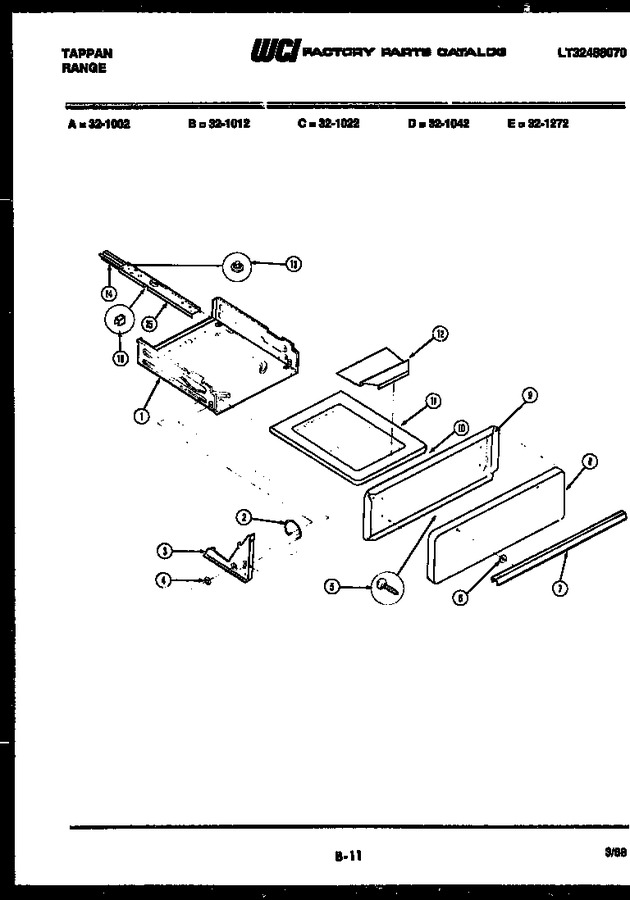

Diagram for 32-1022-23-01
