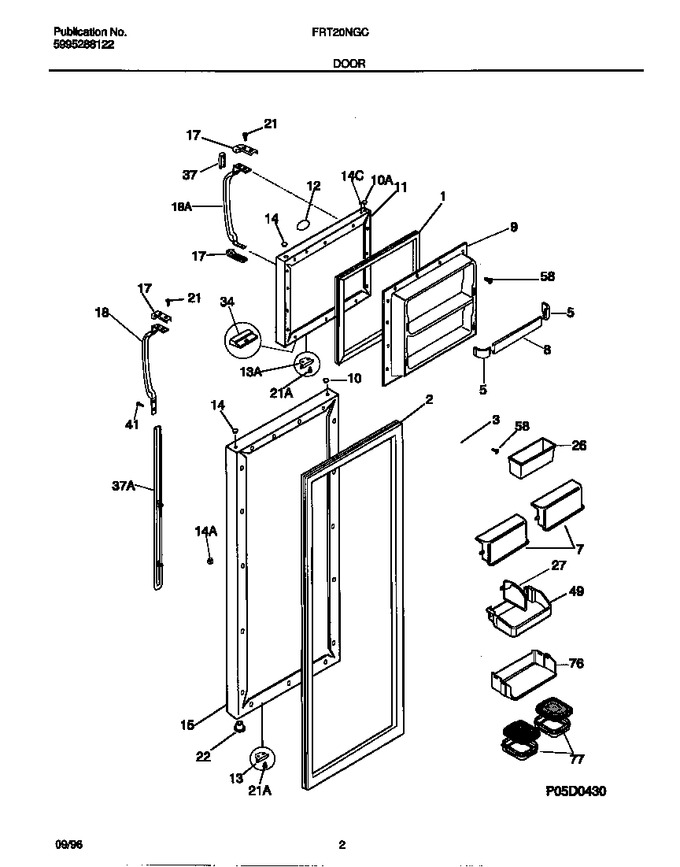

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215608925		Gasket-frzr Door, Black, Magnetic		Appelez-nous	-
2	5303320543		Gasket-refr Door, Black, Magnetic		Appelez-nous	-
3	215434701		Panel, Inner Door Refr		Appelez-nous	-
5	215251401		Support-door Rack, ``2-liter``, Rh/lh		Appelez-nous	-
7	5303308347		Door-dairy		Appelez-nous	-
8	215516258		Rack-door, (2)		Appelez-nous	-
9	215278301		Panel-inner Door, Frzr		Appelez-nous	-
10	5303299154		Plug-button, Black, Hinge Brg Hole		Appelez-nous	-
10	218696503		Plug-button, Black, Closer Hng Hole		Appelez-nous	-
11	5303917858		Panel-frzr Door, Black, W/foam Insulatn		Appelez-nous	-
12	215008606		Label-nameplate, Black (not Illustrated)		Appelez-nous	-
12	218364006		Frame-nameplate, Black		Appelez-nous	-
12	5315340712		Tape, Adhesive, 12`` Long Foam, Double-faced (not Illustr		Appelez-nous	-
13	5303289522		Door Stop				$ 40.17
13	215030018		Door Stop, Black, Frzr				$ 26.78
14	218696603		Plug-button, Black, Handle		Appelez-nous	-
14	215352118		Plug-button, Black, Handle Mtg		Appelez-nous	-
14	215352218		Plug-button, Black, Refr Door Front		Appelez-nous	-
17	218696405		Handle End, Metallic Gray		Appelez-nous	-
18	215981320		Handle-door, Metallic Gray, Frzr, Soft Grip		Appelez-nous	-
18	215983220		Handle-door, Metallic Gray, Refr, Soft Grip		Appelez-nous	-
21	218578600		Screw-door Stop Mtg, Phl Truss Hd, 10-16 X 3/4				$ 8.08
21	218556800		Screw-handle Mtg, Flat Head, 10-16ab X 0.625		Appelez-nous	-
22	5303289320		Bearing-hinge				$ 19.69
26	3204522		Container-egg				$ 98.33
27	218370101		Snugger-door Bin, ``paddle Type``, Gallon Door Bin				$ 88.03
34	215423602		Bumper-light Switch, Black		Appelez-nous	-
37	218549832		Trim-handle, Metallic Gray, Upper, W/dec Gold Band		Appelez-nous	-
37	215867078		Trim-handle, Metallic Gray, Lower, W/gold Band, And Snap		Appelez-nous	-
37	215940700		Lock-handle Trim, Stick-on (not Illustrated)		Appelez-nous	-
41	218843801		Screw   (Replaces: 5303001001)				$ 14.41
49	215441502		Bin-door, Gallon, With Trim   (Replaces: 218592305)				$ 176.87
58	5303314236		Screw, Truss/ph Head, 8-18ab X 0.500		Appelez-nous	-
76	218423900		Rack-microwave Dish		Appelez-nous	-
77	218423502		Dish-microwave, (2)		Appelez-nous	-
*20760	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
15A	5303917563		Panel-refr Door, White, W/foam Insulatn		Appelez-nous	-
15B	5303917564		Panel-refr Door, Almond, W/foam Insulatn		Appelez-nous	-
15C	5303917565		Panel-refr Door, Black, W/foam Insulatn		Appelez-nous	-
