SELECT A DIAGRAM

01 - Cover

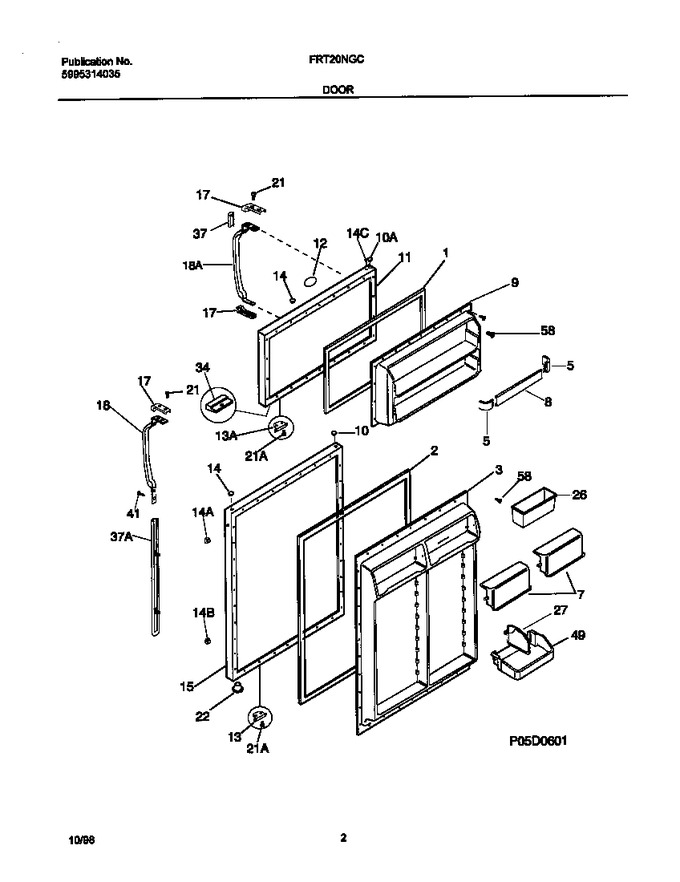

02 - Doors


03 - Cabinet


04 - Shelves


05 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215608905		Gasket-frzr Door, Almond, Magnetic		Appelez-nous	-
2	218730612		Gasket-refr Door, Almond, Magnetic				$ 98.50
3	215434701		Panel, Inner Door Refr		Appelez-nous	-
7	5303308347		Door-dairy		Appelez-nous	-
8	215516220		Rack-door   (Replaces: 218763603)				$ 54.58
9	215278301		Panel-inner Door, Frzr		Appelez-nous	-
10	5303292414		Plug-button, Almond, Hinge Brg Hole		Appelez-nous	-
10	218696502		Plug-button, Almond, Lg Closer Hole		Appelez-nous	-
11	5303917989		Panel-frzr Door, Almond, W/insulation		Appelez-nous	-
12	218364005		Frame-nameplate, Almond		Appelez-nous	-
13	5303289522		Door Stop				$ 40.17
13	215030011		Door Stop, Almond, Frzr		Appelez-nous	-
14	218696602		Plug-button, Almond, Sm Closer Hole		Appelez-nous	-
14	215352111		Plug-button, Almond, Handle Mtg		Appelez-nous	-
14	215352211		Plug-button, Almond, Handle Mtg, Refr Door Front		Appelez-nous	-
15	5303917986		Panel-refr Door, Almond, W/foam Insulatn		Appelez-nous	-
17	218696404		Handle End, Almond		Appelez-nous	-
18	215981319		Handle-door, Almond, Frzr, Soft Grip		Appelez-nous	-
18	215983219		Handle-door, Almond, Refr, Soft Grip		Appelez-nous	-
21	218578600		Screw-door Stop Mtg, Phl Truss Hd, 10-16 X 3/4				$ 8.08
21	218556800		Screw-handle Mtg, Flat Head, 10-16ab X 0.625		Appelez-nous	-
22	5303289320		Bearing-hinge				$ 19.69
26	3204522		Container-egg				$ 98.33
27	218370101		Snugger-door Bin, ``paddle Type``, Gallon Door Bin				$ 88.03
34	218783201		Bumper-light Switch, White		Appelez-nous	-
37	218811602		Trim-handle,almond ,refr Door ,w/dec Gold Band,& Snap-on		Appelez-nous	-
37	218549841		Trim-handle,almond ,upper ,w/dec Gold Band		Appelez-nous	-
41	5308000039		Screw		Appelez-nous	-
49	215441502		Bin-door, Gallon, With Trim   (Replaces: 218592305)				$ 176.87
58	218781101		Screw, Pan Head, 8-18 X 5/8   (Replaces: 218781100)				$ 15.60
*04241	215008605		Label-nameplate,almond		Appelez-nous	-
*04243	5315340712		Tape,adhesive ,12`` Long ,foam ,double-faced		Appelez-nous	-
*04244	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
14A	218074001		Plug-button, White, Refr Door Front, Lower				$ 13.76
14B	218074002		Plug-button, Almond, Refr Door Front, Lower		Appelez-nous	-
14C	218074003		Plug-button, Black, Refr Door Front, Lower				$ 1.78
37A	215782300		Lock-handle Trim,snap-in				$ 34.49
37B	215940700		Lock-handle Trim, Stick-on		Appelez-nous	-
37C	218676003		Band-decorative, Gold				$ 47.11
5A	218809701		Support-door Rack, Lh		Appelez-nous	-
5B	218809801		Support-door Rack, Rh		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
