SELECT A DIAGRAM

01 - Compressor


02 - Controls


03 - Fountain


04 - Freezer Compartment


05 - Freezer Inner Door


06 - Freezer Outer Door


07 - Fresh Food Inner Door


08 - Fresh Food Outer Door


09 - Ice Bin (rev 10)


10 - Ice Bin (rev 11)


11 - Ice Maker


12 - Shelves & Accessories


13 - Wiring Information

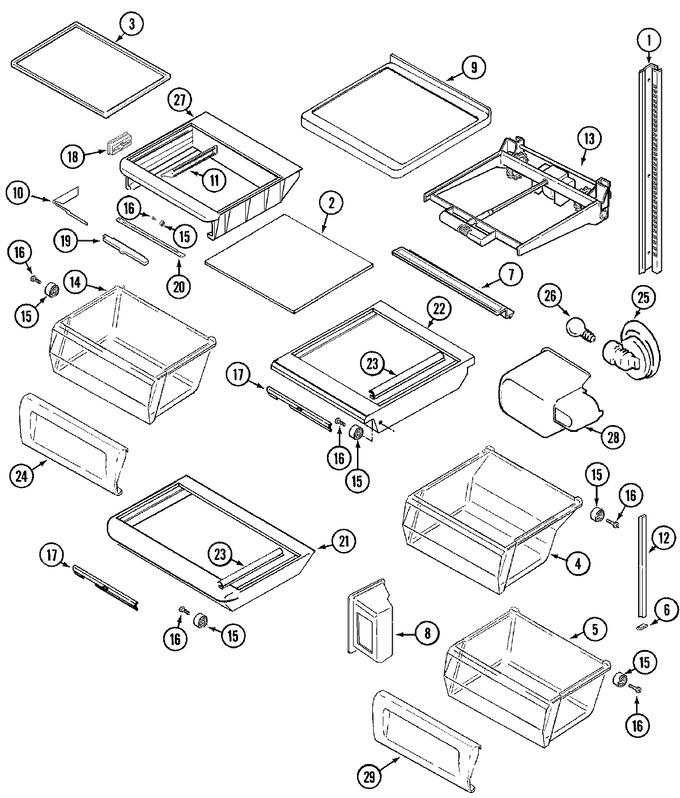

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP489478		Screw   (Replaces: 400017-1)	10			$ 6.98
1	61003708		Rail, Shelf Support	10	Appelez-nous	-
2	61003662		Glass, Crisper Shelf (upr)-na	10	Appelez-nous	-
2	61003664		Glass, Crisper Shelf (lwr)	10	Appelez-nous	-
3	61003709		Glass, Meat Shelf	10	Appelez-nous	-
4	61003667		Pan, Crisper (upr)	10	Appelez-nous	-
5	61003668		Pan, Crisper (lwr)	10	Appelez-nous	-
6	61004109		Base, Filler Strip (rt)	10	Appelez-nous	-
6	61004110		Base, Filler Strip (lt)	10	Appelez-nous	-
6	400019-1		Screw	10	Appelez-nous	-
7	61003716		Seal, Crisper Pan (frt)	10	Appelez-nous	-
7	61003671		Seal, Crisper Shelf (rear)	10	Appelez-nous	-
8	WP61006081		Cover Assy., Air Return   (Replaces: 61003164)	10			$ 80.27
9	61003721		Shelf, Spillproof	10	Appelez-nous	-
10	61003722		Tape, Meat Control	10	Appelez-nous	-
11	61003723		Cover, Meat Control Tape	10	Appelez-nous	-
11	489392		Screw   (Replaces: 415013-35)	10			$ 12.02
12	61003888		Strip, Filler (sides)	10	Appelez-nous	-
13	61003729		Frame Assy., Elevator Shelf	10	Appelez-nous	-
14	61003718		Pan, Meat	10	Appelez-nous	-
15	67423-2		Roller	10			$ 20.83
16	65275-6		Screw	10			$ 5.48
17	61003710		Slide, Control (crisper)	10	Appelez-nous	-
18	61003785		Duct, Air (meat)	10	Appelez-nous	-
18	61003725		Retainer, Duct	10	Appelez-nous	-
19	61003674		Slide, Control (meat)	10	Appelez-nous	-
20	489392		Screw   (Replaces: 415013-35)	10			$ 12.02
20	61003784		Cover, Meat Pan Slide	10	Appelez-nous	-
21	61003712		Shelf, Crisper (lwr)	10	Appelez-nous	-
22	61003713		Shelf, Crisper (upr)	10	Appelez-nous	-
23	61003715		Seal, Crisper Side (lwr)	10	Appelez-nous	-
23	61003714		Seal, Crisper Side (upr)	10	Appelez-nous	-
24	61003711		Front Assy., Meat Pan	10	Appelez-nous	-
25	61003379		Receptacle, Bulb	10	Appelez-nous	-
26	W10887190		Bulb, Light   (Replaces: 61001787)	10		Immediately	$ 16.48
27	61003717		Frame, Meat Shelf	10	Appelez-nous	-
28	61003439		Shield, Light	10			$ 38.58
29	61003719		Front Assy., Crisper Pan	10	Appelez-nous	-
30	61003947		Retainer, Mullion Duct	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
