SELECT A DIAGRAM

01 - Cover


02 - Doors


03 - Cabinet


04 - Shelves


05 - System

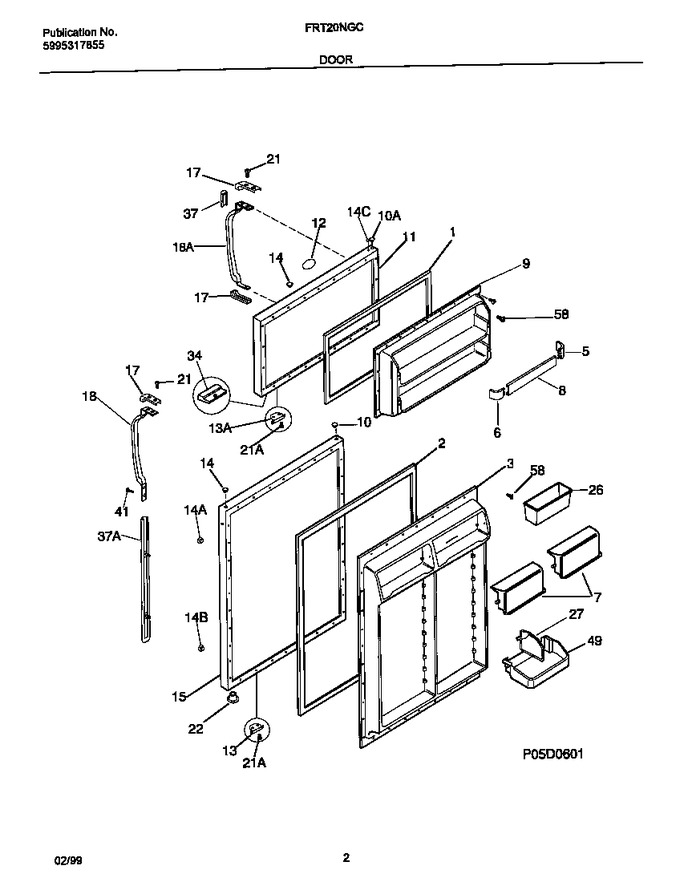

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215608915		Gasket-frzr Door, White, Magnetic		Appelez-nous	-
2	218730611		Gasket-refr Door, White, Magnetic				$ 194.51
3	215434701		Panel, Inner Door Refr		Appelez-nous	-
5	218809801		Support-door Rack, Rh		Appelez-nous	-
6	218809701		Support-door Rack, Lh		Appelez-nous	-
7	5303308347		Door-dairy		Appelez-nous	-
8	215516220		Rack-door   (Replaces: 218763603)				$ 54.58
9	215278301		Panel-inner Door, Frzr		Appelez-nous	-
10	218696501		Plug-button, White, Lg Closer Hole				$ 4.07
10	5303292413		Plug-button, White, Hinge Brg Hole				$ 4.94
11	5303917988		Panel-frzr Door, White, W/foam Insulatn		Appelez-nous	-
12	218364004		Frame-nameplate, White		Appelez-nous	-
13	215030001		Door Stop, White, Frzr				$ 29.61
13	5303289522		Door Stop				$ 40.17
14	218074001		Plug-button, White, Refr Door Front, Lower				$ 13.76
14	240494001		Plug-button, White, Handle Mtg, Refr Door Front   (Replaces: 215352201)			Immediately	$ 18.20
14	218696601		Plug-button, White, Sm Closer Hole				$ 1.75
14	215352101		Plug-button, White, Handle Mtg		Appelez-nous	-
15	5303917985		Panel-refr Door, White, W/foam Insulatn		Appelez-nous	-
17	218696401		Handle End, White				$ 47.04
18	215983201		Handle-door, White, Refr, Soft Grip		Appelez-nous	-
18	215981301		Handle-door, White, Frzr, Soft Grip		Appelez-nous	-
21	218556800		Screw-handle Mtg,flat Head ,10116ab X 0.625		Appelez-nous	-
21	218578600		Screw-door Stop Mtg,phl Truss Hd ,10116 X 3/4				$ 8.08
22	5303289320		Bearing-hinge				$ 19.69
26	3204522		Container-egg				$ 98.33
27	218370101		Snugger-door Bin, ``paddle Type``, Gallon Door Bin				$ 88.03
34	218783201		Bumper-light Switch, White		Appelez-nous	-
37	215782300		Lock-handle Trim,snap-in				$ 34.49
37	218676003		Band-decorative, Gold				$ 47.11
37	218549840		Trim-handle,white ,upper ,w/dec Gold Band				$ 55.34
37	218811601		Trim-handle,white ,refr Door ,w/dec Gold Band,& Snap-onlock		Appelez-nous	-
37	215940700		Lock-handle Trim, Stick-on		Appelez-nous	-
41	218886801		Screw-8-32 X 1/2 No. 10 Truss Ca		Appelez-nous	-
49	215441502		Bin-door, Gallon, With Trim   (Replaces: 218592305)				$ 176.87
58	218781101		Screw,pan Head ,8118 X 5/8   (Replaces: 218781100)				$ 15.60
*32520	215008604		Label-nameplate,white		Appelez-nous	-
*32521	5315340712		Tape,adhesive ,12`` Long ,foam ,double-faced		Appelez-nous	-
*32522	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91

    View Diagram in Separate Window       Print Part List
